Rear Ball Bearing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure applies only to 1000 series 4WD transmissions.

Position transmission so rear of transmission is facing upward. If equipped, remove oil seal assembly from output shaft bore.
Rotate selector shaft to full clockwise position using a wrench on selector shaft flats. See Fig 1. Using a Spanner Nut Wrench (J-43769) or equivalent, remove output nut from output shaft.
On all models, remove retaining ring from below output shaft nut.
Using a 3-Leg Puller (J-43910 and J-24420-B) or equivalent, place foot of each leg between 2 bearing balls. Twist each leg until foot of each leg is forced under the bearing races. Adjust center screw of puller and each leg nut until the puller assembly is perpendicular to rear face of main housing. Continue to tighten puller center screw until ball bearing assembly is dislodged. Remove puller assembly and selective spacer.

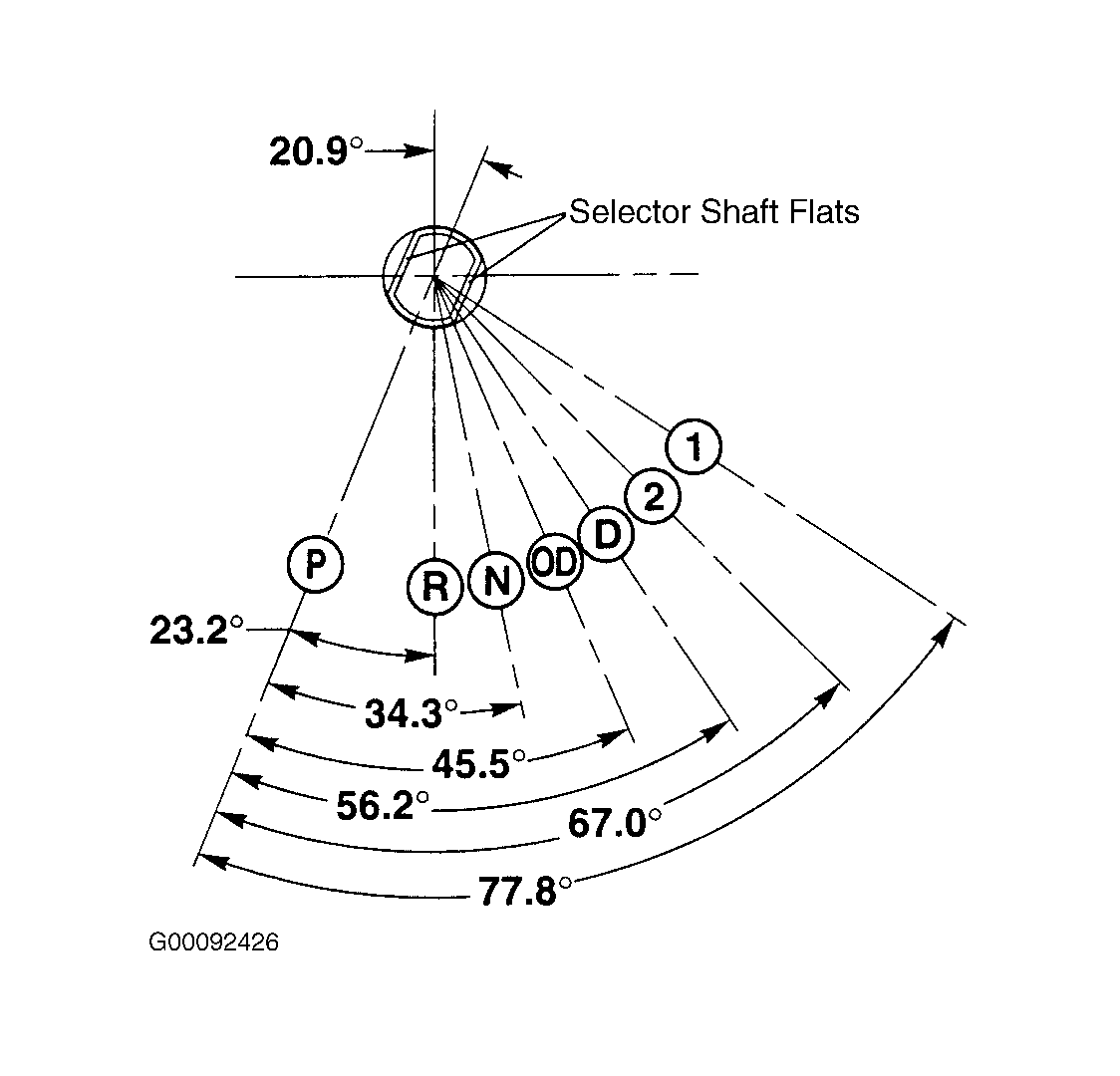

Fig 1: Identifying Selector Shaft Positions (1000 Series With 4WD)

Courtesy of GENERAL MOTORS CORP.
