Park Pawl

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

If equipped with a park pawl, disengage pawl return spring from main housing. See Fig 1. Remove, as a unit, park pawl and pawl return spring from pawl support pin. Remove pawl return spring from park pawl.
Remove pawl support pin (2) from main housing. See Fig 2. If equipped, remove apply assembly guide (3). Remove C5 piston return spring (1).

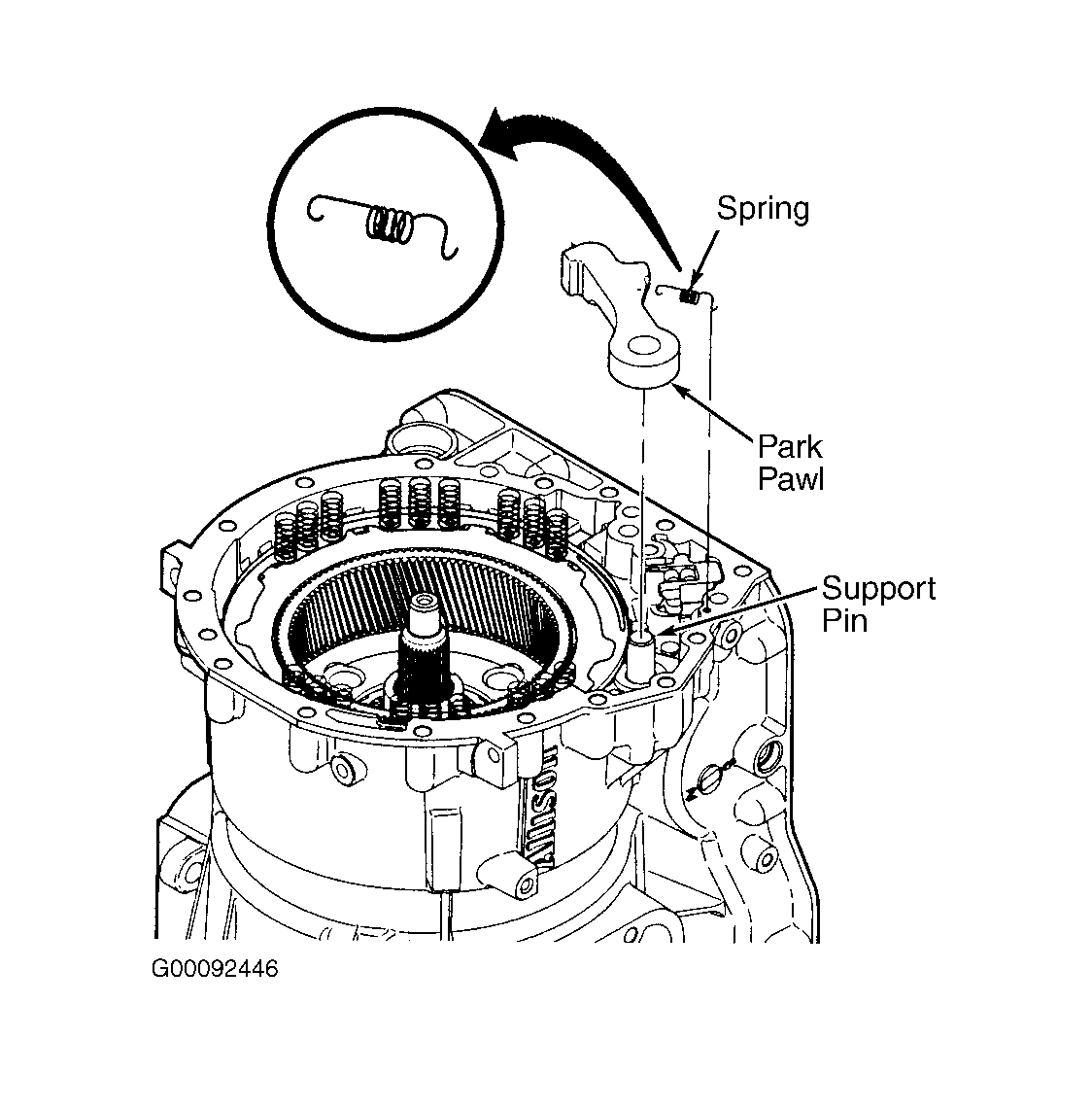

Fig 1: Identifying Park Pawl & Related Components

Courtesy of ALLISON CORPORATION.

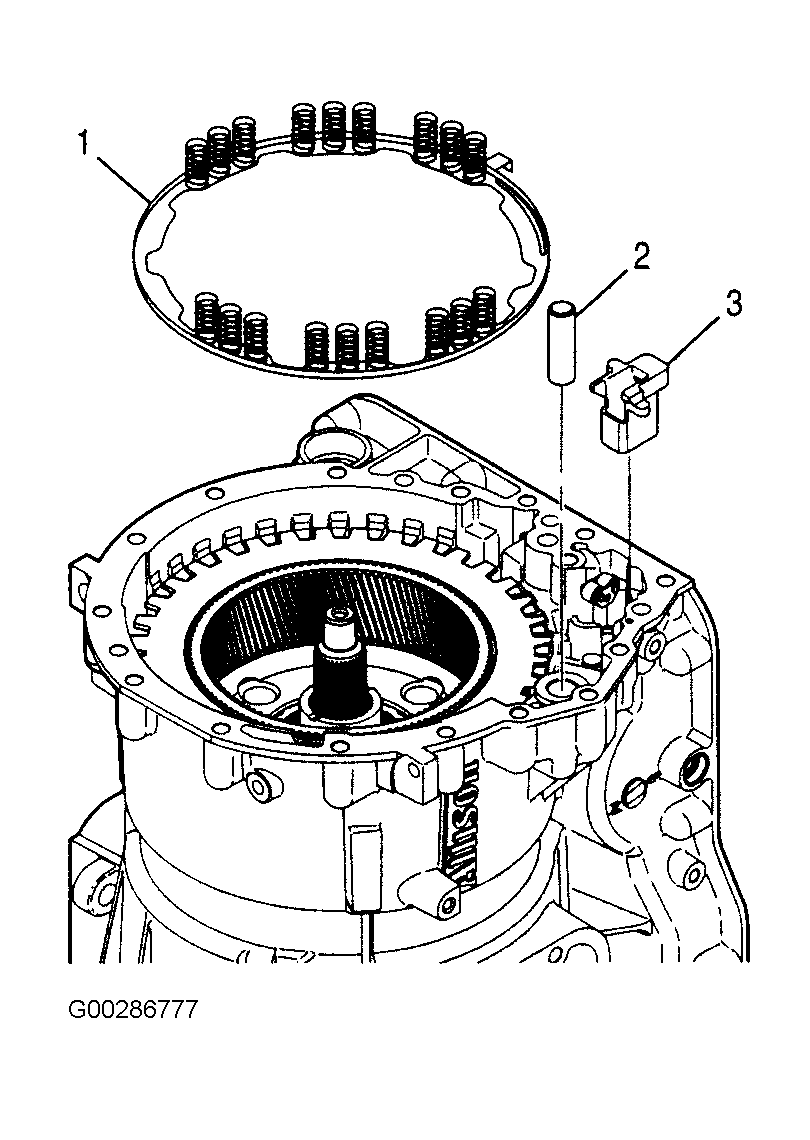

Fig 2: Identifying Apply Assembly Guide & C5 Piston Return Spring

Courtesy of GENERAL MOTORS CORP.
