P1 Planetary Module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

Remove P1 planetary module. See Fig 1. Remove thrust bearing assembly from P1 or P2 planetary module.

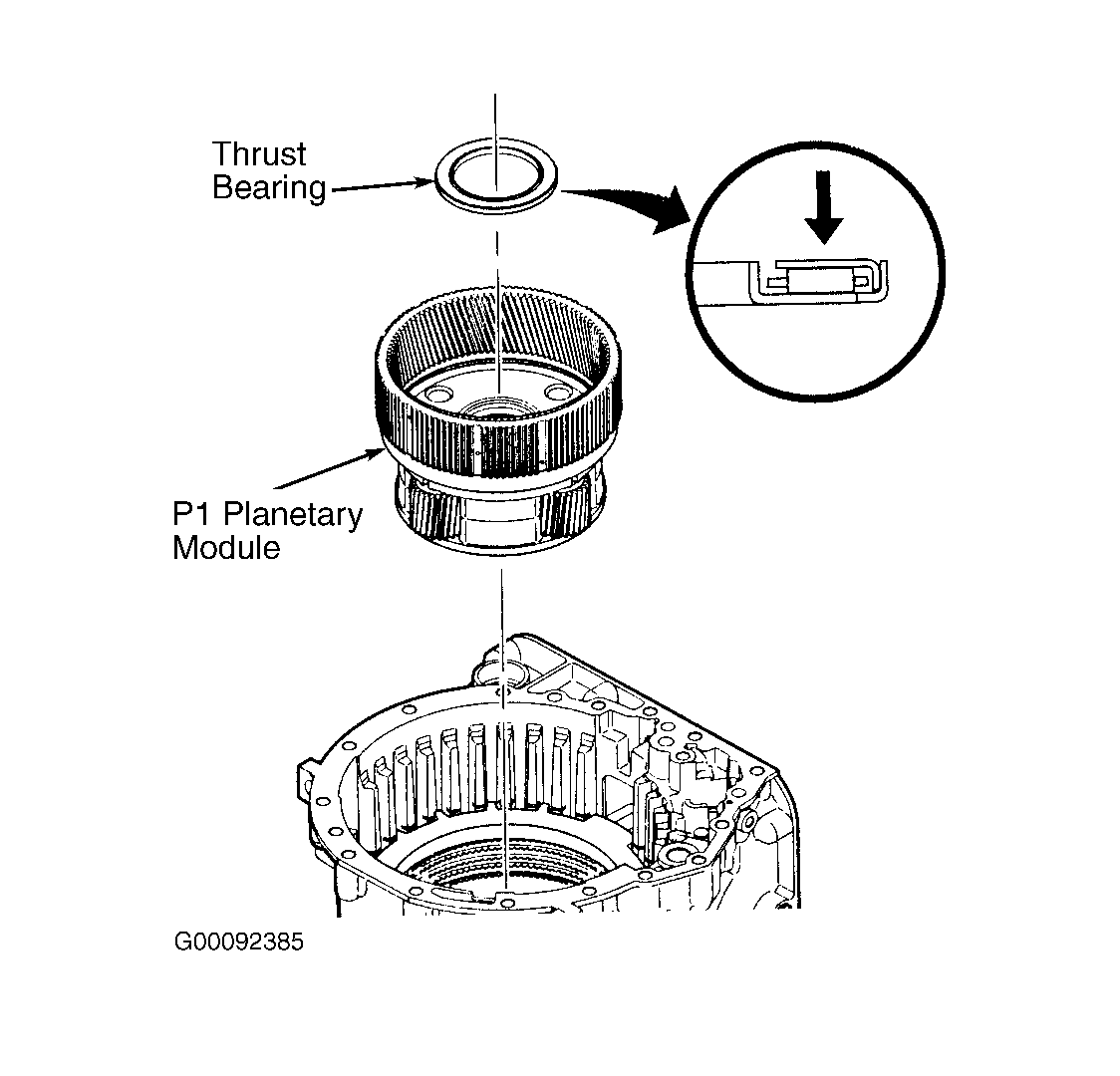

Fig 1: Identifying P1 Planetary Module

Courtesy of GENERAL MOTORS CORP.
