Section 471 (Automatic Transmission - Overhaul - ALLISON): Identification: Transmission
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

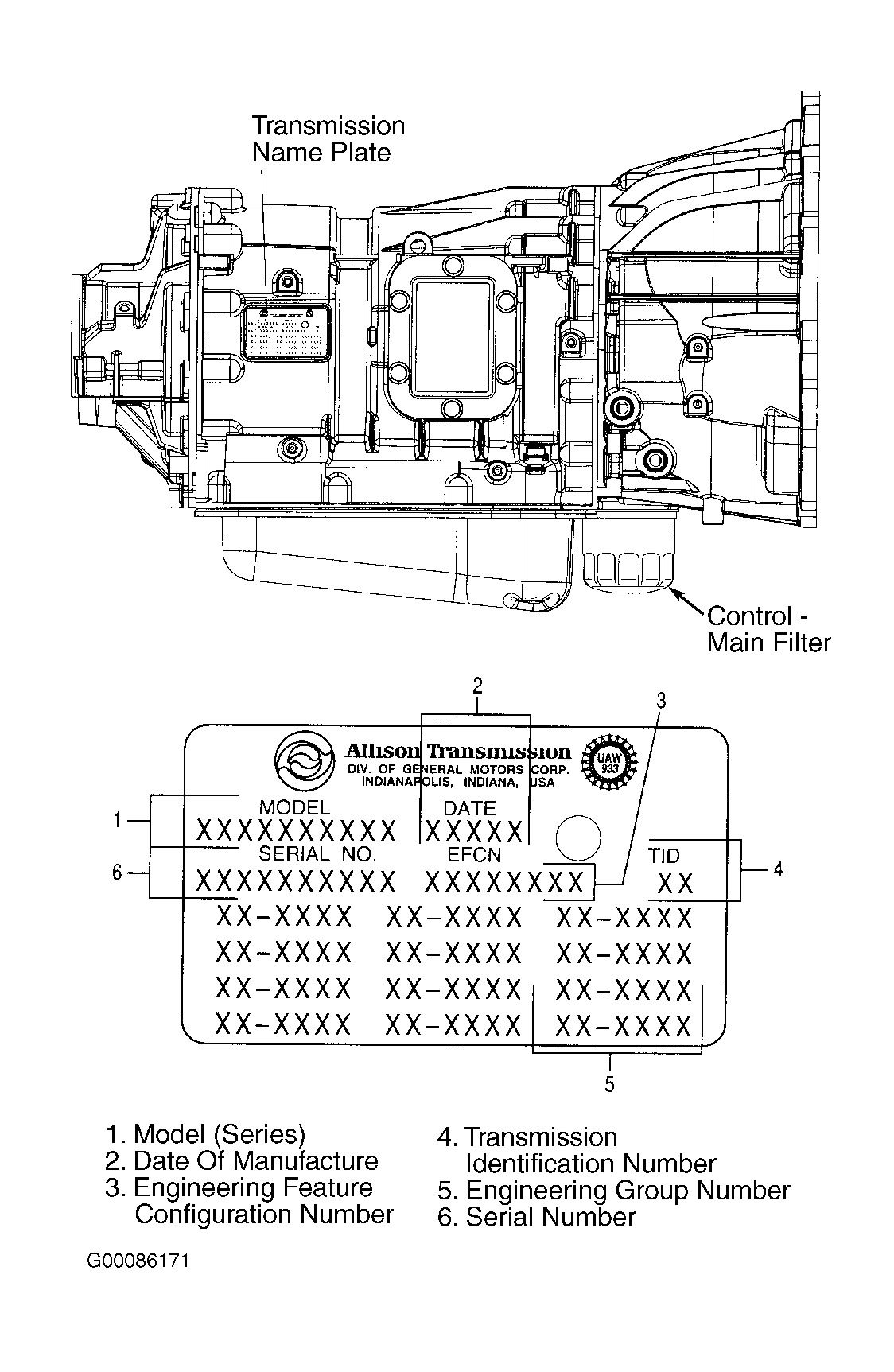

The transmission identification plate is located on the right side of the transmission housing, near the rear of the unit. See Fig 1.
