Output Yokes/Flanges

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

A variety of output yokes or flanges are available to meet vehicle driveline requirements. Yokes or flanges are OEM-installed and are adapted as specified by the vehicle manufacturer.

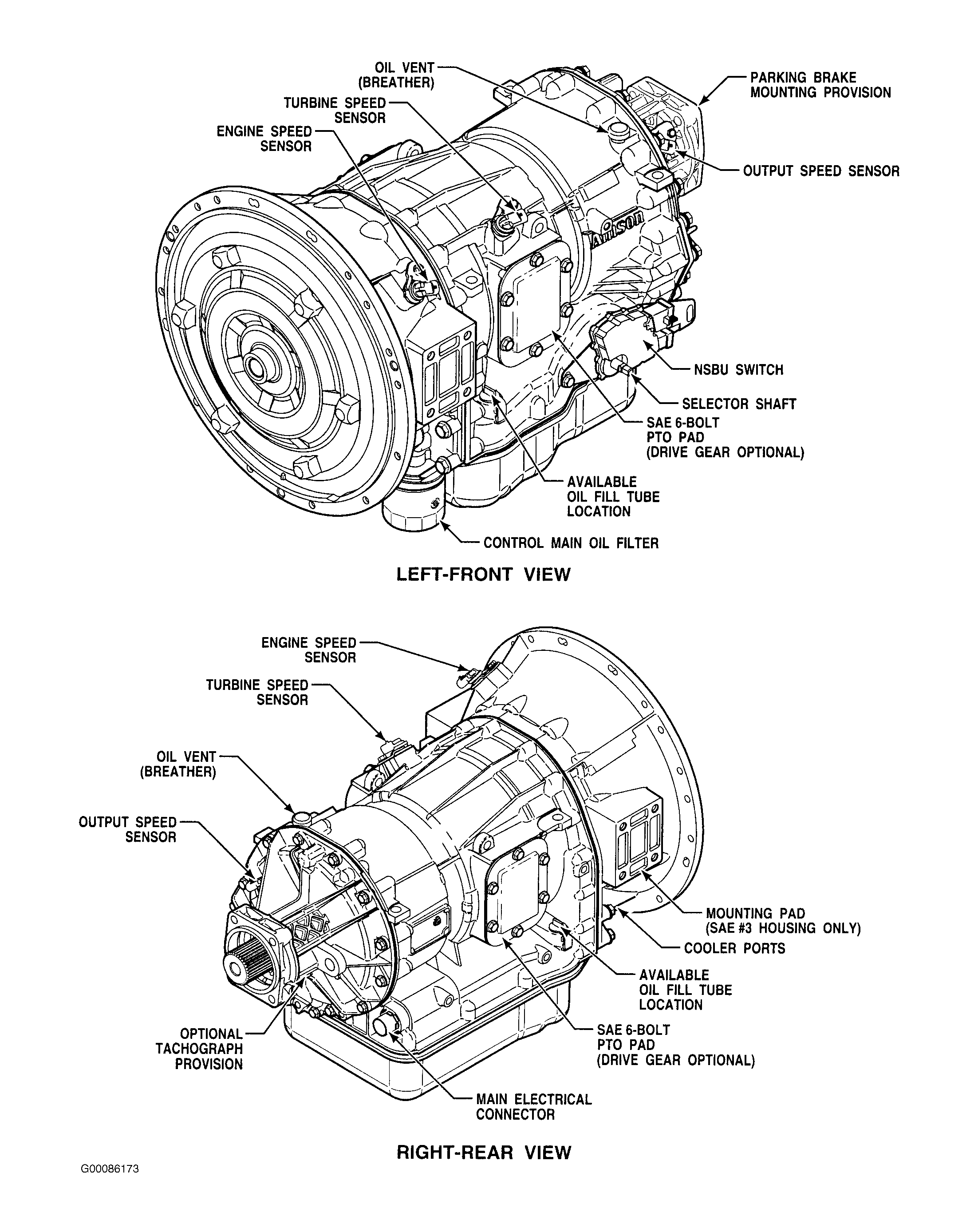

Fig 1: Identifying Right & Left Side Views Of Allison 1000 Series Transmission

Courtesy of GENERAL MOTORS CORP.
