Removal & Installation (Passenger-side)
WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 5 under DISABLING & ACTIVATING AIR BAG SYSTEM.

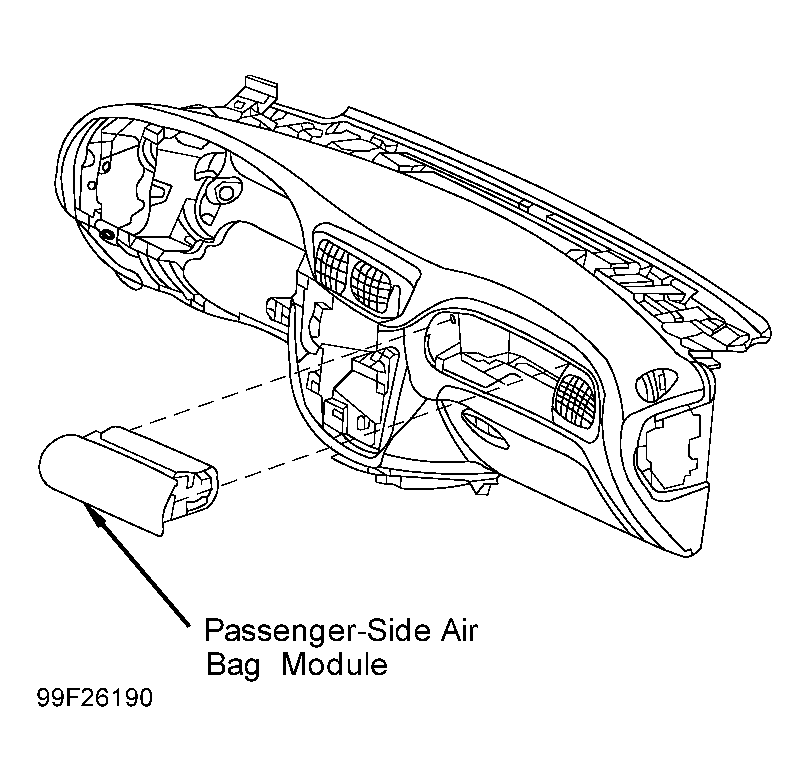

- Remove access panel from end of passenger-side instrument panel. Remove screw from passenger-side air duct extension. Remove air duct extension. Remove passenger-side air bag module bolts. Remove Instrument Panel Cluster (IPC) trim. Remove nuts from left and right side of passenger-side air bag module. Remove passenger-side air bag module. See Figure.
- To install, reverse removal procedure. Tighten passenger-side air bag module nuts and bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ZONE 5 under DISABLING & ACTIVATING AIR BAG SYSTEM.
