Zone 5

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key. Remove SIR fuse (15-amp) from fuse block, located in junction block above left front wheel wheel. See Figure.
  2. Open glove box to access passenger-side air bag module connector. See Fig 1. Remove Connector Position Assurance (CPA) clip from passenger-side air bag module connector. Disconnect passenger-side air bag module connector.

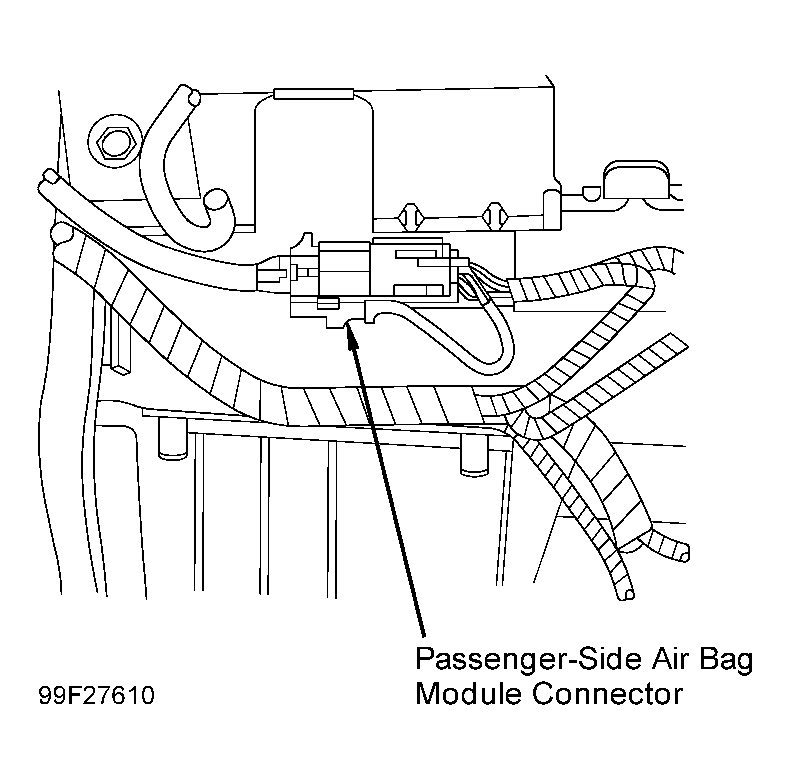

Fig 1: Identifying Passenger-side Air Bag Module Connector
G99F27610Courtesy of GENERAL MOTORS CORP.
