Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to REMOVAL & INSTALLATION - A/T in Automatic Transmission.
    IMPORTANT: Note the position and the direction of the engine flywheel before removal.
  2. Remove the flywheel bolts.

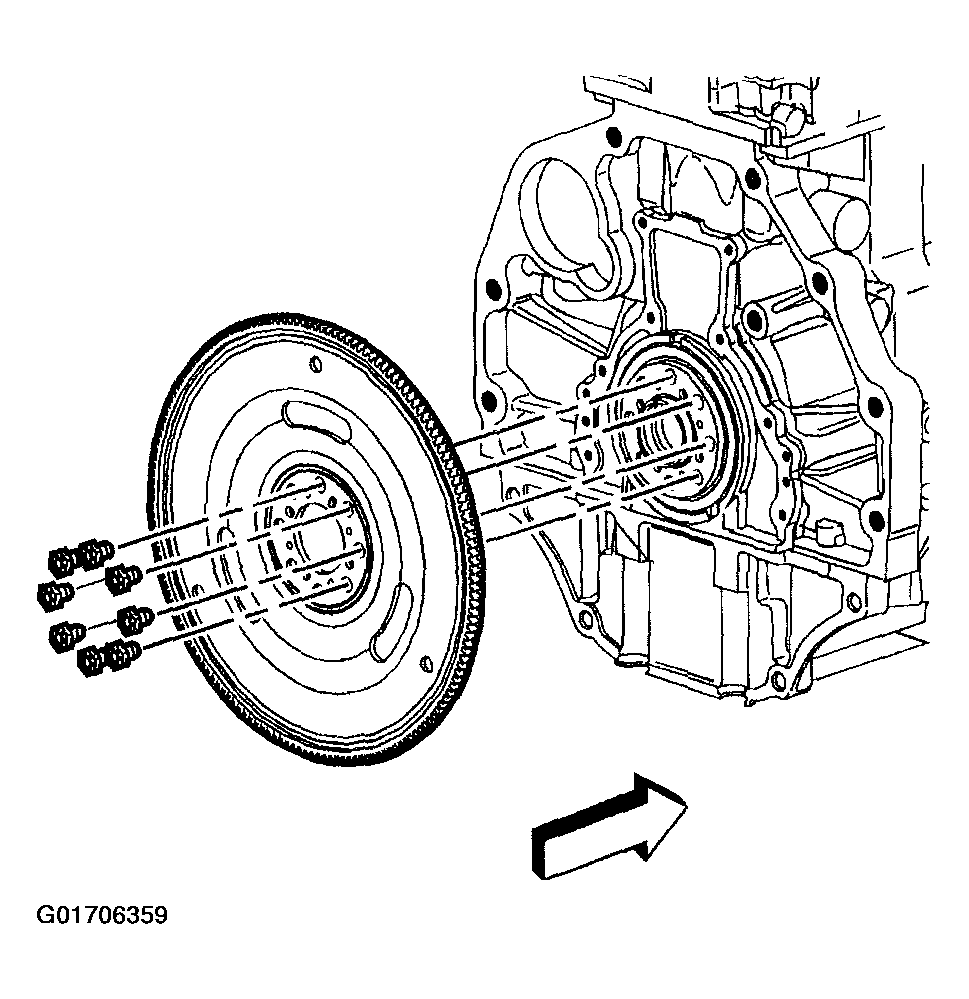

    3. Fig 1: Removing flywheel bolts
    G01706359Courtesy of GENERAL MOTORS CORP.
  3. Remove the flywheel.
  4. Clean and Inspect the flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION in Engine Mechanical - 4.2L Unit Repair.
