Engine Flywheel Cleaning and Inspection

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the engine flywheel for cracks (1).

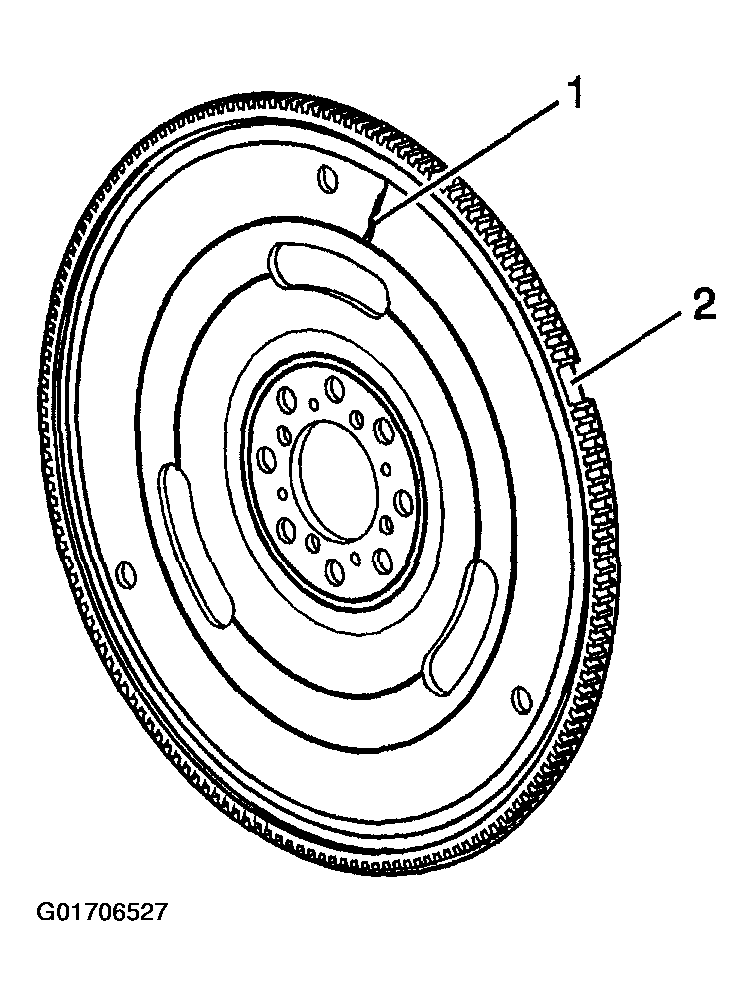

    2. Fig 1: Inspecting Engine Flywheel
    G01706527Courtesy of GENERAL MOTORS CORP.
  2. Inspect the engine flywheel teeth for damage (2).
  3. Replace the engine flywheel if damage is present.
