Installation (Auxiliary - Avalanche, Escalade, Suburban, Tahoe & Yukon)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

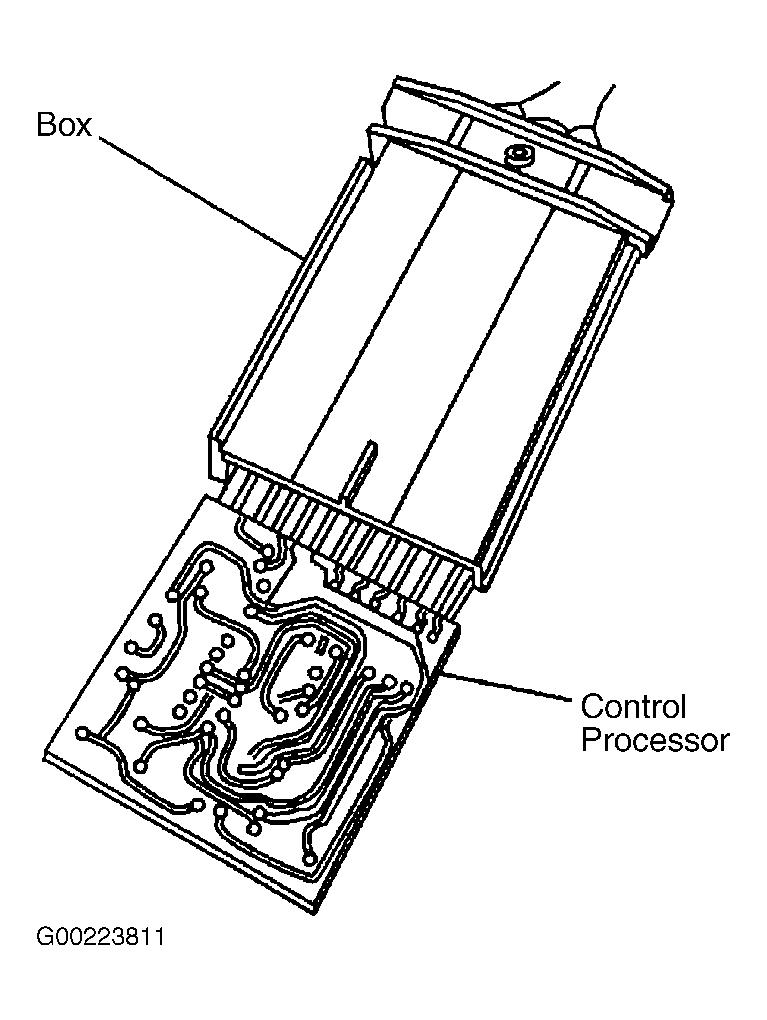

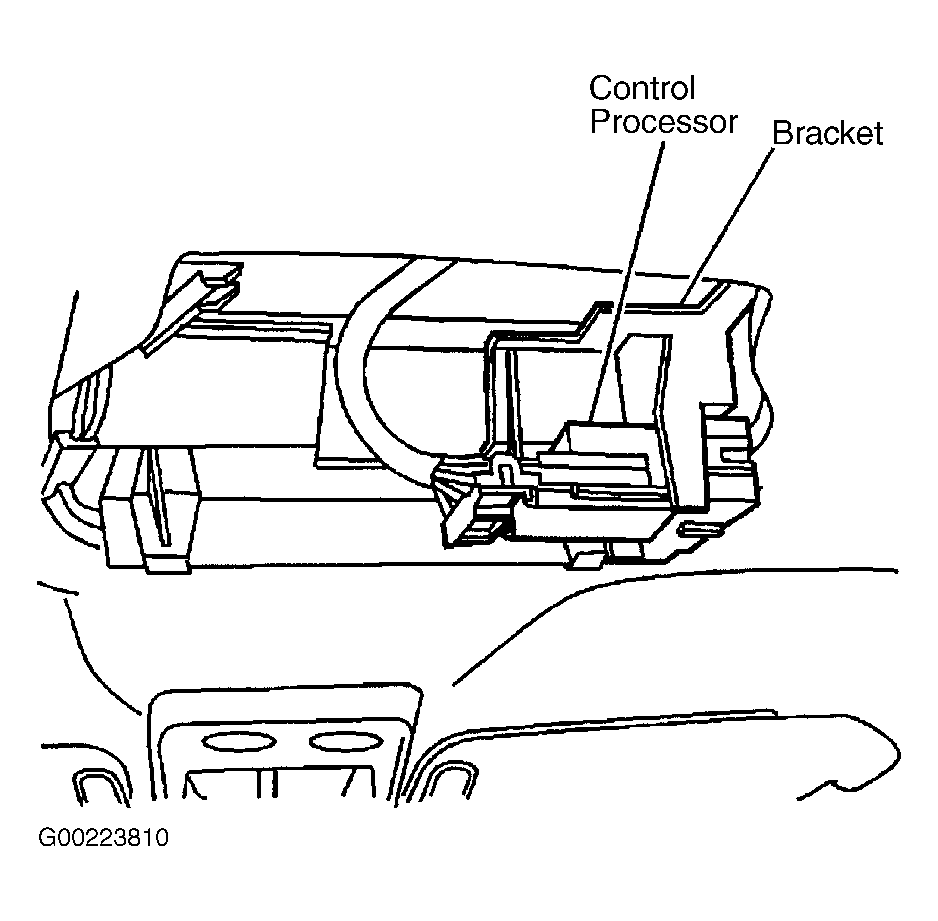

Install the auxiliary HVAC control processor to the box. Install the cover to the auxiliary HVAC control processor. See Figure. Install the auxiliary HVAC control processor to the bracket. Install the auxiliary rear HVAC control assembly. See HVAC CONTROL ASSEMBLY (REAR AUXILIARY) . See Figure.
