Accumulator Components: Reassembly

WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install piston oil seal rings onto 1-2 and 2-3 accumulator pistons. Lubricate oil seal ring with ATF. Assemble 1-2 and 2-3 piston pins and pistons. Assemble 1-2 and 2-3 accumulator piston springs and piston assembly into accumulator housing. See Fig 1.
  2. Assemble accumulator spacer plate and cover onto accumulator housing. Install accumulator bolts and tighten to specification. See TORQUE SPECIFICATIONS .
  3. Assemble lube oil pipe, oil hose, hose clamps, pipe retainer and pipe with washer. See Fig 2. Install 2-1 manual band servo and forward band servo oil pipes into accumulator assembly. Install 2-1 manual band servo and forward band servo oil pipes into 2-1 manual band servo cover. Install lube oil pipe assembly into accumulator assembly.

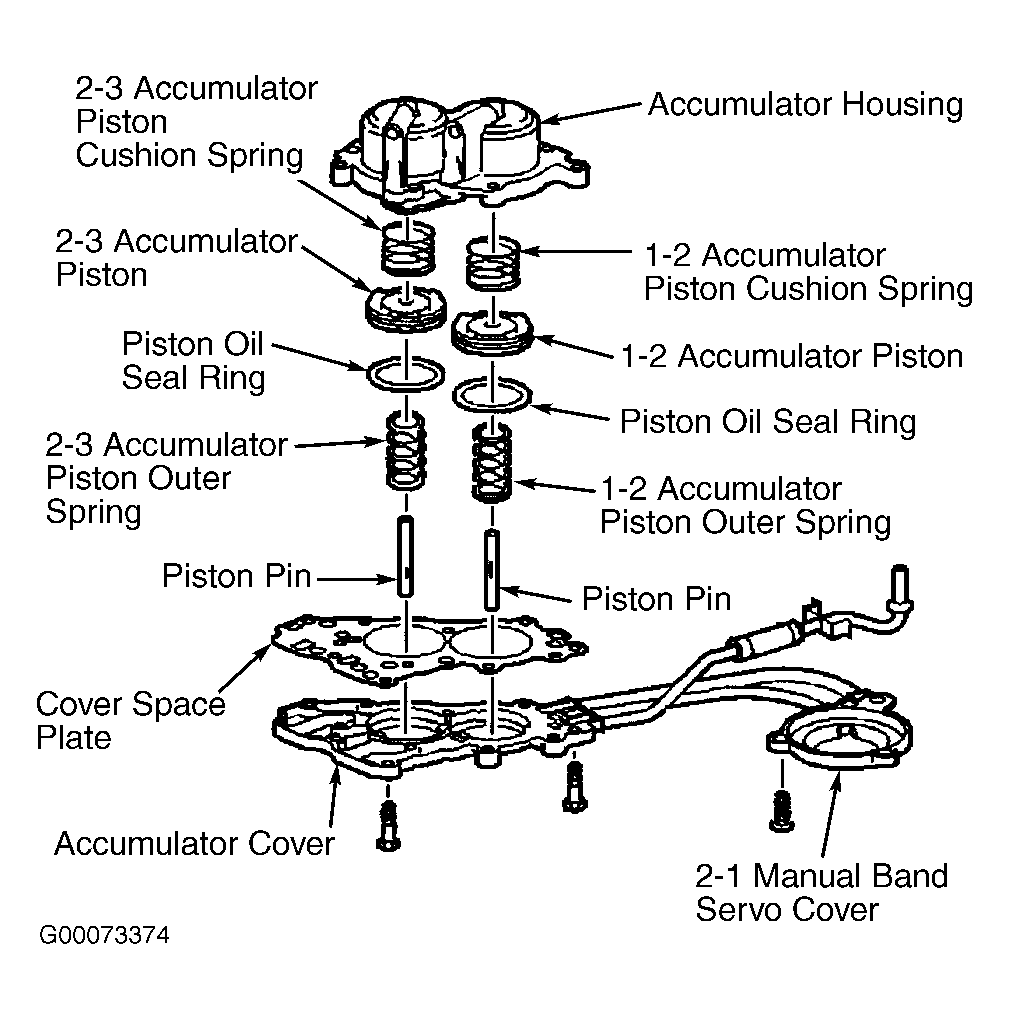

Fig 1: Exploded View Of Accumulator Components
G00073374Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing & Installing 2-1 Manual Band Servo Pipes
G00073375Courtesy of GENERAL MOTORS CORP.
