Torque Specifications
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2003 Pontiac Montana, 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Pontiac Aztek, and 2003 Oldsmobile Silhouette. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Case Cover Bolt |
| Bolt No. 3 |
18 (25) |
| Bolts No. 1, 2 & 4 |
|
| Case Extension Bolt |
26 (35) |
| Case Side Cover Bolt |
18 (25) |
| Control Valve Body Bolt |
| Bolts No. 1-5 |
|
| Bolt No. 6 |
12 (16) |
| Bolt No. 7 |
18 (25) |
| Bolt No. 8 |
|
| Bolt No. 9 |
|
| Drive Sprocket Support Bolt |
18 (25) |
| Manual Shaft-To-Detent Lever Nut |
24 (32) |
| Oil Cooler Fitting |
28 (38) |
| Shift Shaft Nut |
23 (31) |
| Transfer Case-To-Transaxle Bolt |
| Bolts No. 1 & 2 |
|
| Bolt No. 3 |
|
| Bolts No. 4 & 5 |
30 (40) |
| Transfer Case Lower Brace-To-Transaxle Bolt |
23 (31) |
| Transfer Case Lower Brace-To-Transaxle Lower Bolt |
42 (56) |
| Transfer Case Side Brace Bolt |
23 (31) |
| 2-1 Manual Band Servo Cover Bolt |
18 (25) |
| INCH Lbs. (N.m) |
| Accumulator Bolt |
106 (12) |
| Accumulator Cover-To-Case Bolt |
106 (12) |
| Forward Band Servo Cover Bolt |
106 (12) |
| Manual Valve Shift Detent Bolt |
106 (12) |
| Oil Pan Bolt |
120 (14) |
| Oil Pressure Test Plug |
106 (12) |

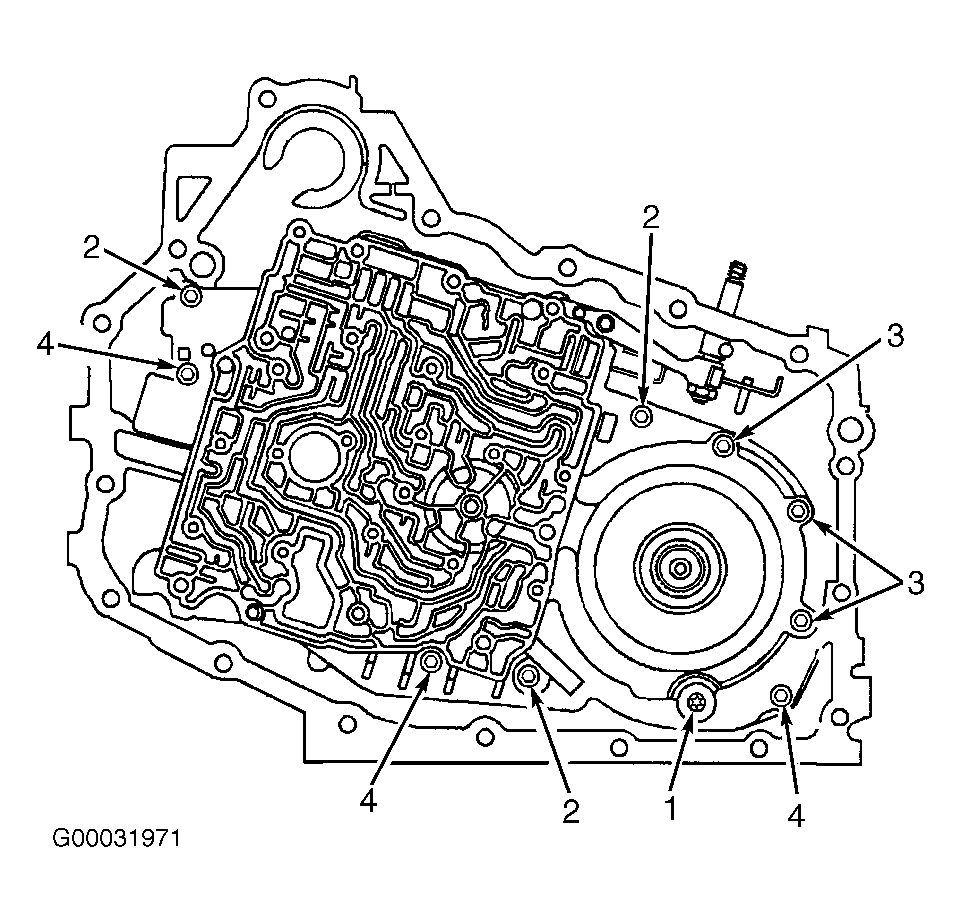

| Oil Pump Bolt |
| Bolt No. 1 |
71 (8) |
| Bolts No. 2 & 3 |
106 (12) |
| Vehicle Speed Sensor Bolt |
106 (12) |
