Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

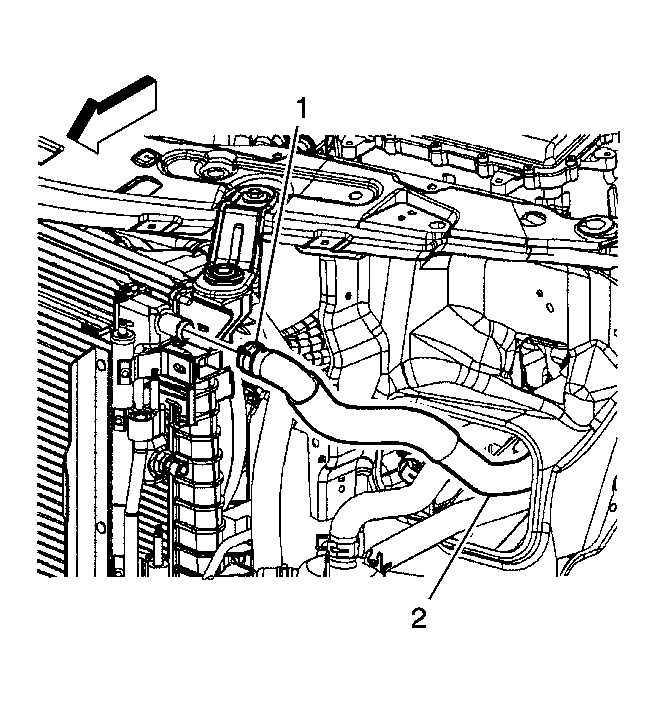

    Fig 1: Generator Control Module Coolant Inlet Hose
    GM2152484Courtesy of GENERAL MOTORS CORP.
  1. Install the generator control module coolant inlet hose to the vehicle.
  2. Install the generator control module coolant inlet hose (2) to the radiator.
  3. Using J 38185:  Hose Clamp Pliers reposition the generator control module coolant inlet hose clamp (1).

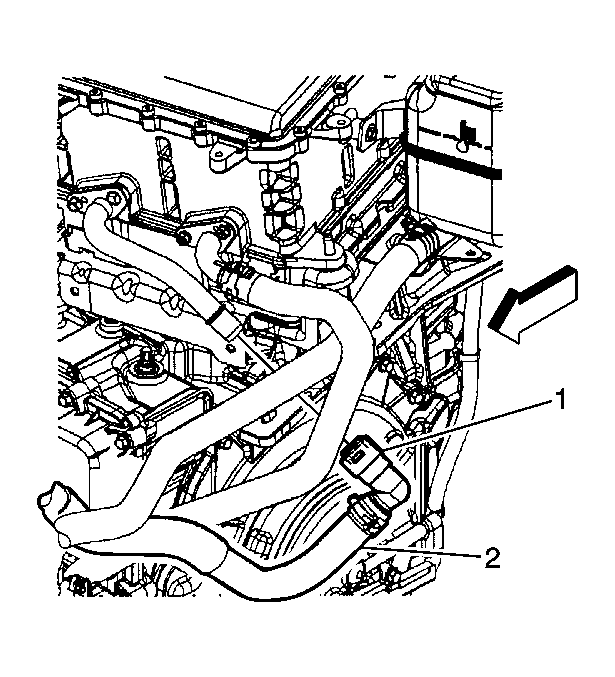

    4. Fig 2: Generator Control Module Coolant Inlet Hose Quick Connect Fitting & Coolant Inlet Hose
    GM2152475Courtesy of GENERAL MOTORS CORP.
  4. Install the generator control module coolant inlet hose (2) to the generator control module and connect the quick connect fitting (1).
  5. Install the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement
  6. Install the left headlamp. Refer to Headlamp Replacement
  7. Install the drive motor power inverter module bracket. Refer to Generator Control Module Bracket Replacement
  8. Fill the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
