Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Drive Motor Generator Control Module Coolant Upper Pump
    GM2150495Courtesy of GENERAL MOTORS CORP.
  1. Install the drive motor generator control module coolant upper pump (2).
  2. Install the drive motor generator control module coolant pump hose clamp (1) using J 38185:  Hose Clamp Pliers.

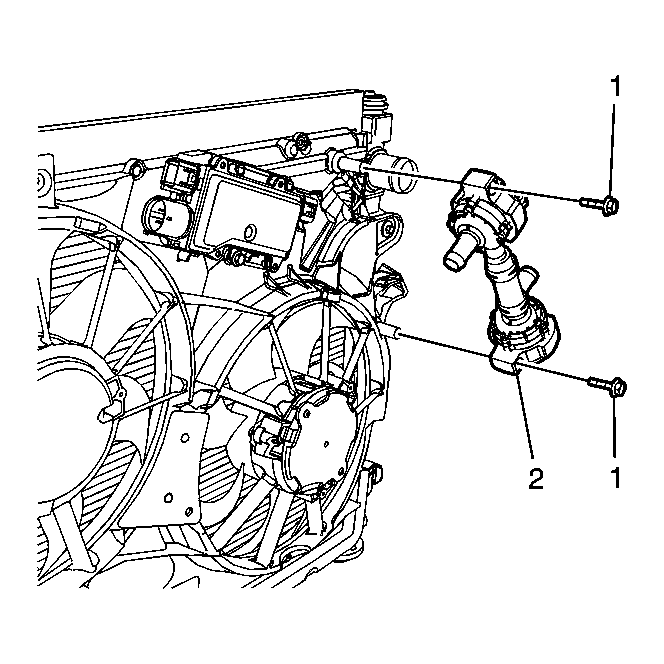

    3. Fig 2: Coolant Pump Hose Assembly
    GM2150492Courtesy of GENERAL MOTORS CORP.
  3. Install the drive motor generator control module coolant pump hose assembly (2) from the vehicle.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the drive motor generator control module coolant pump bolts (1) and tighten to 7.5 N.m (66 lb in).
  5. Connect the electrical connectors to the drive motor generator control module coolant pumps.
  6. Install the generator control module coolant pump hose. Refer to Generator Control Module Coolant Pump Hose Replacement
  7. Install the generator control module coolant pump hose - pump to radiator inlet. Refer to Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet
  8. Fill the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
