Drive Motor Battery Coolant Outlet Hose Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

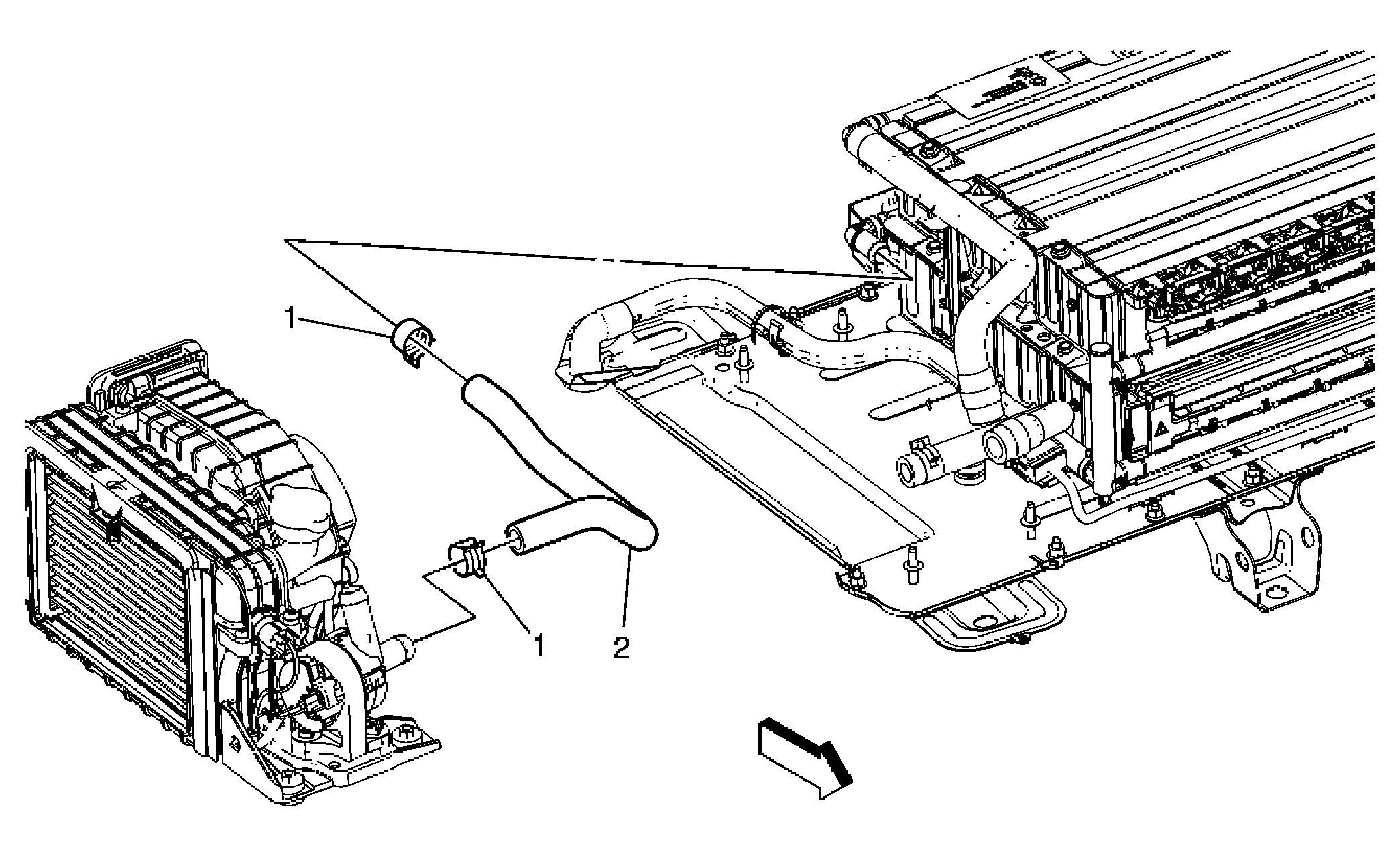

Fig 1: Drive Motor Battery Coolant Outlet Hose Replacement
GM2177347Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the drive motor battery coolant cover. Refer to Drive Motor Battery Coolant Cooler Cover Replacement .
  2. Drain the drive motor battery coolant cooling system. Refer to Drive Motor Battery Cooling System Draining and Filling .
  3. Reposition drive motor battery coolant cooler as necessary to gain access for hose and clamps. Refer to Drive Motor Battery Coolant Cooler Replacement .
1 Drive Motor Battery Coolant Cooler Outlet Hose Clamp (Qty: 2)
2 Drive Motor Battery Coolant Cooler Outlet Hose
