Drive Motor Battery Coolant Cooler Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

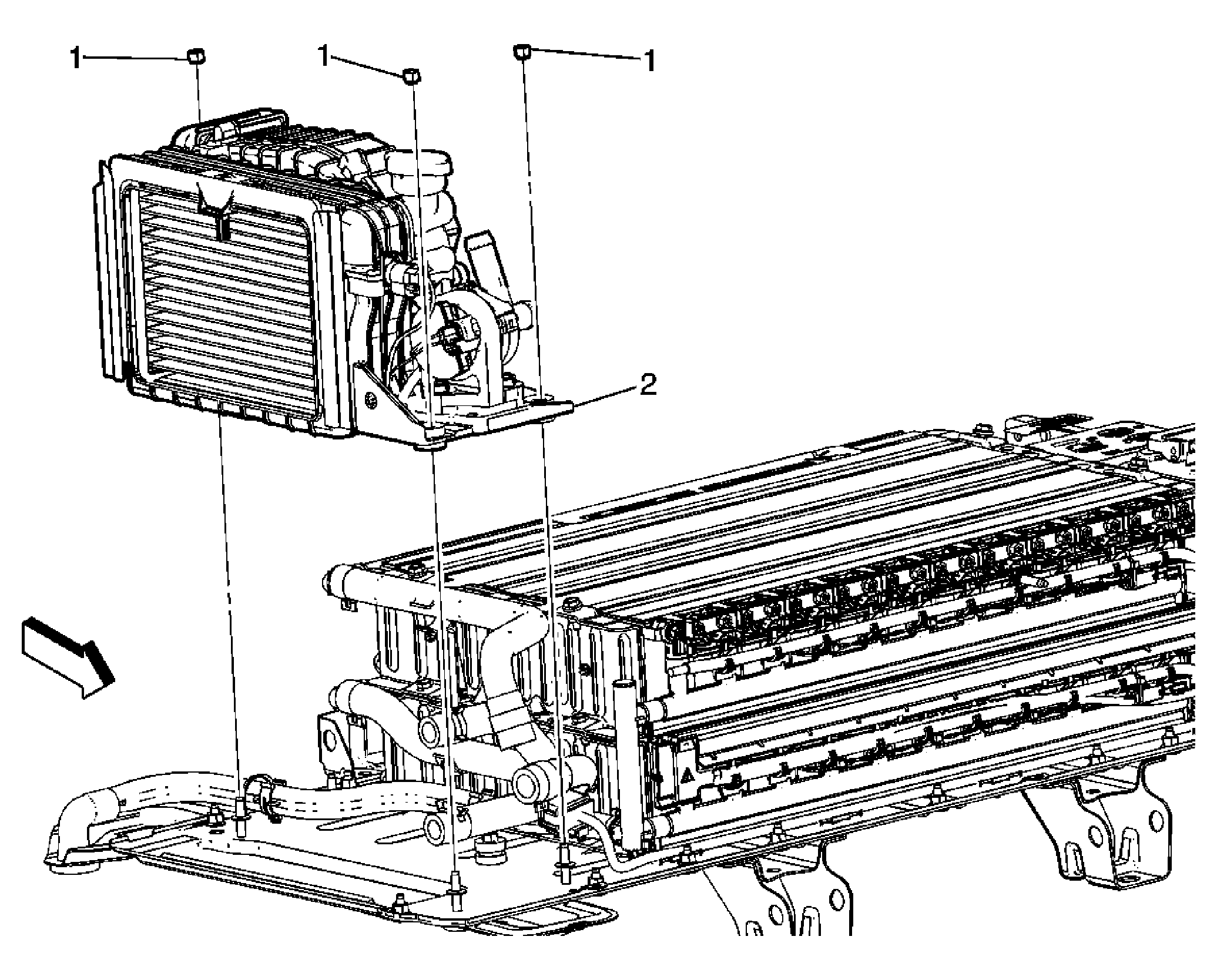

Fig 1: Drive Motor Battery Coolant Cooler Replacement
GM2177344Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the drive motor battery cover. Refer to Drive Motor Battery Cover Replacement .
  2. Remove the drive motor battery coolant cover. Refer to Drive Motor Battery Coolant Cooler Cover Replacement .
  3. Drain the drive motor battery coolant cooling system. Refer to Drive Motor Battery Cooling System Draining and Filling
  4. Remove all hoses from cooler assembly and pump.
1 Drive Motor Battery Coolant Cooler Fastener (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  16 N.m (12 lb ft)
2 Drive Motor Battery Coolant Cooler
Procedure:
Disconnect electrical connections
