Drive Motor Battery Cover Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

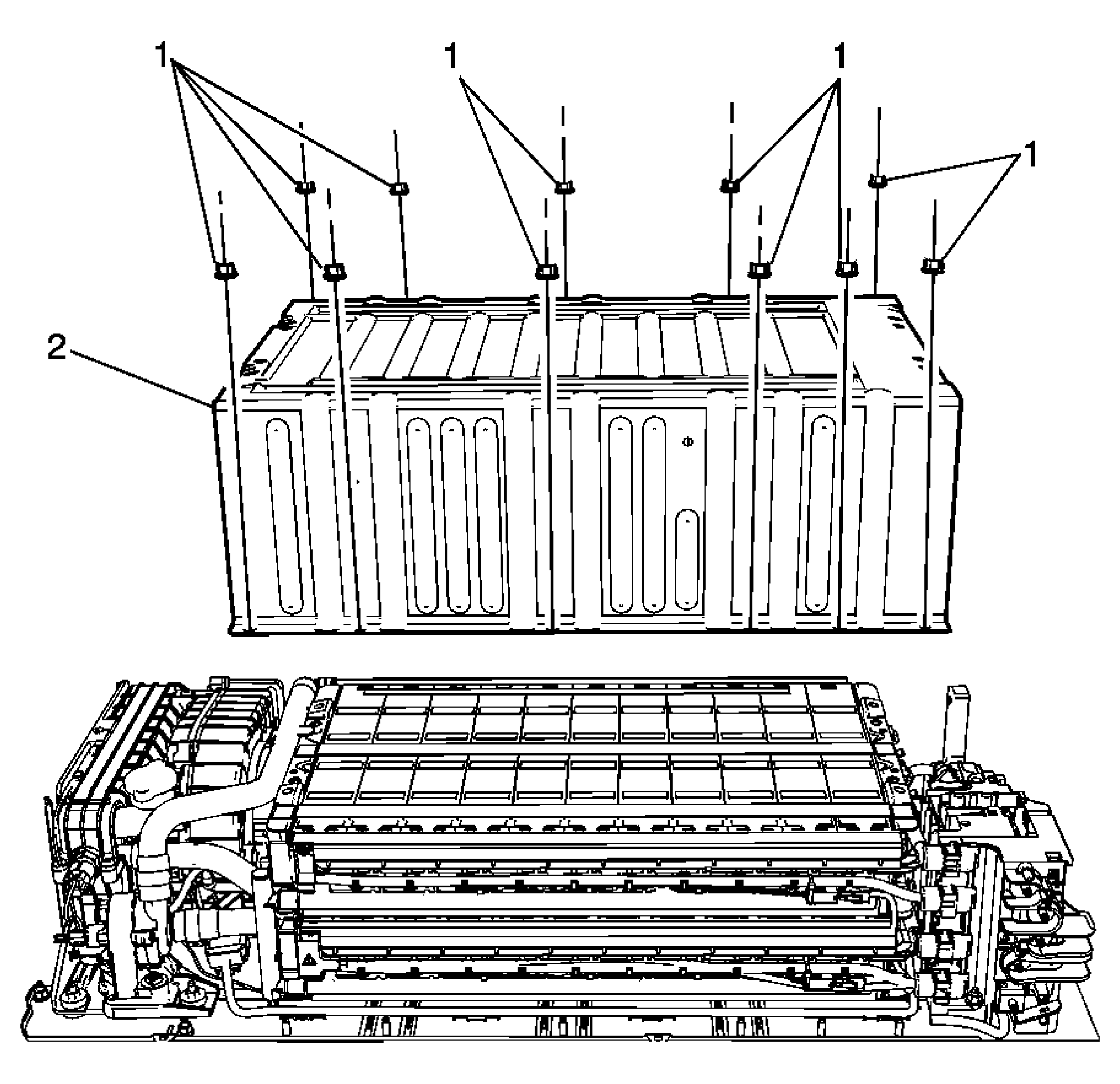

Fig 1: Drive Motor Battery Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety . Disable the high voltage system. Refer to High Voltage Disabling . Remove the battery terminal cover. Refer to Battery Terminal Cover Replacement . Remove the drive motor battery coolant cooler cover. Refer to Drive Motor Battery Coolant Cooler Cover Replacement .
1	Drive Motor Battery Cover Assembly Fasteners (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (55 lb in)
2	Drive Motor Battery Cover Assembly Procedure: Enable the high voltage system. Refer to High Voltage Enabling .

Callout

Component Name

Preliminary Procedures

Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety .
Disable the high voltage system. Refer to High Voltage Disabling .
Remove the battery terminal cover. Refer to Battery Terminal Cover Replacement .
Remove the drive motor battery coolant cooler cover. Refer to Drive Motor Battery Coolant Cooler Cover Replacement .

Drive Motor Battery Cover Assembly Fasteners (Qty: 7)

CAUTION: Refer to Fastener Caution .

Tighten: 6 N.m (55 lb in)

Drive Motor Battery Cover Assembly
Procedure:
Enable the high voltage system. Refer to High Voltage Enabling .
