Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive motor generator power inverter module. Refer to Drive Motor Generator Power Inverter Module Removal and Installation
  2. Remove the high pressure pump shield. Refer to Fuel Pipe Shield Replacement .
  3. Relieve the low side fuel system pressure. Refer to Fuel Pressure Relief (with CH 48027-100) or Fuel Pressure Relief (w/o CH 48027-100) .
  4. Remove the radiator surge tank outlet pipe. Refer to Radiator Surge Tank Outlet Hose/Pipe Replacement (LY7) .

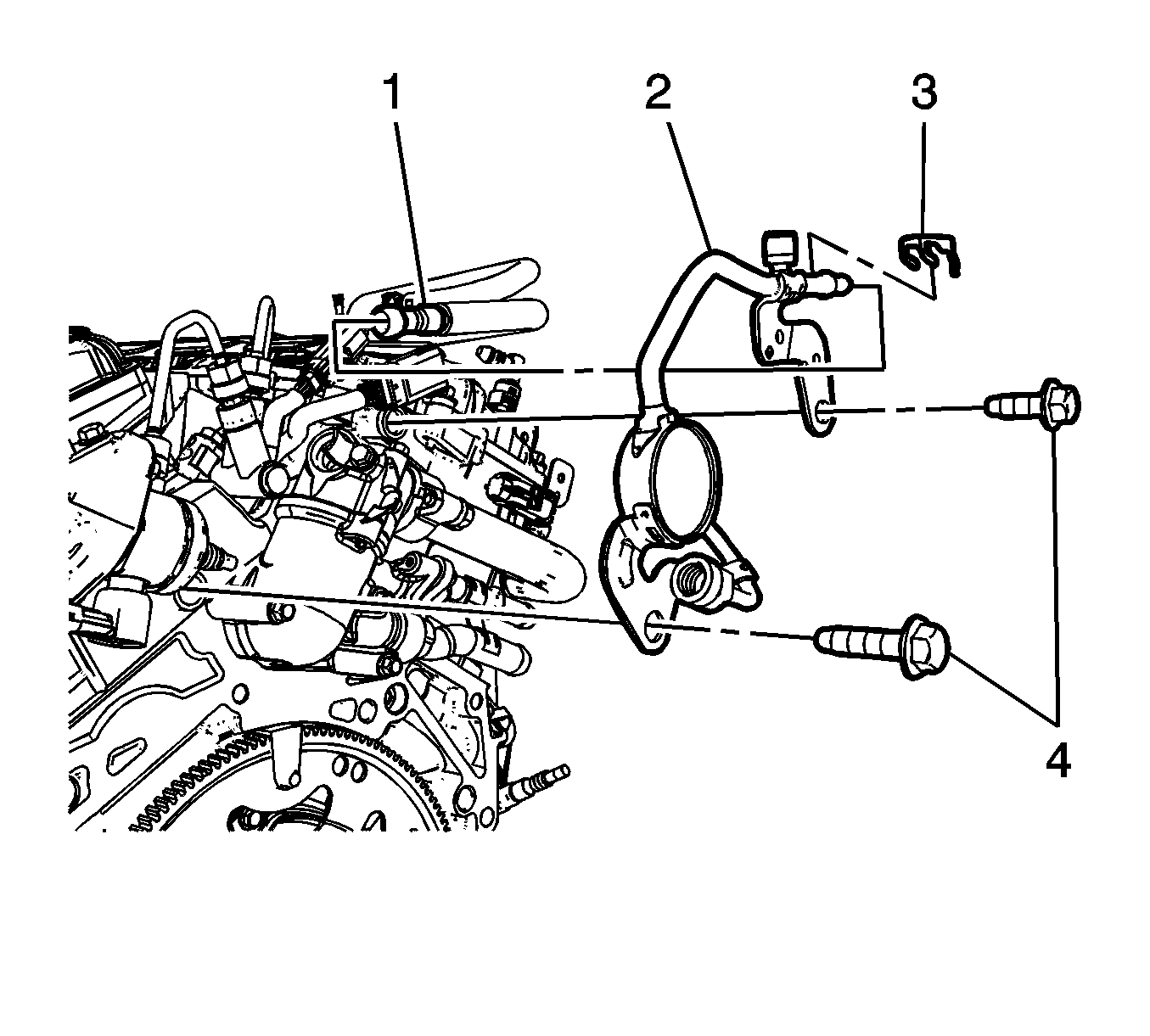

    5. Fig 1: Identifying Fuel Feed Pipe Components
    GM1977758Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the fuel feed line quick connect fitting from the fuel feed pipe (2). Refer to Metal Collar Quick Connect Fitting Service .
  6. Loosen the fuel feed pipe fitting to the high pressure fuel pump.
  7. Remove the fuel feed pipe bolts (4) from the cylinder heads.
  8. Remove the fuel feed pipe from the engine and high pressure fuel pump.
