Fuel Pipe Shield Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

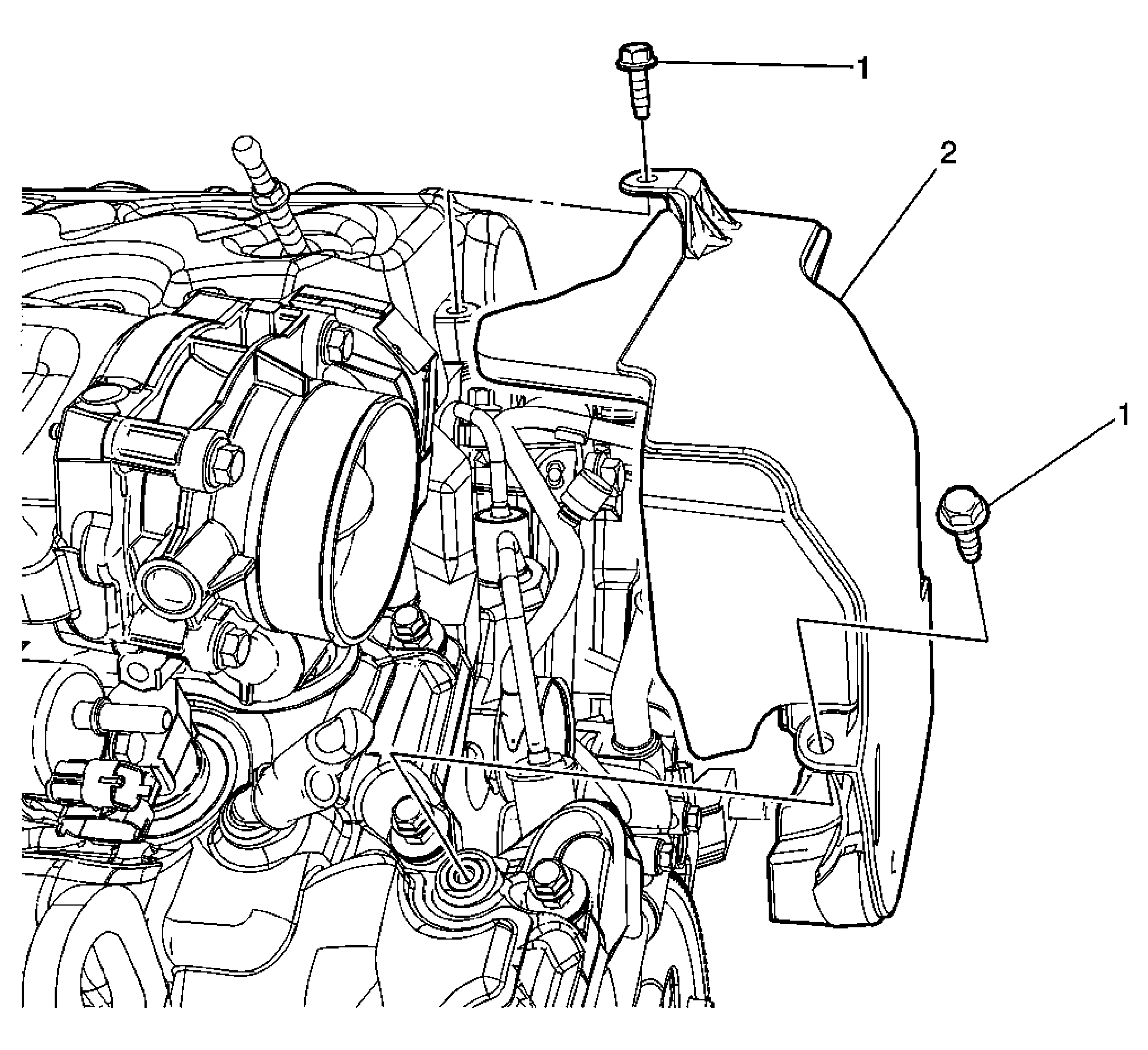

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the drive motor generator power inverter module. Refer to Drive Motor Generator Power Inverter Module Removal and Installation |
|
| 1 | Fuel Pump Shield Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
Tighten: 10N.m(89 lb in) |
| 2 | Fuel Pump Shield |
