Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the engine splash shield. Refer to Engine Splash Shield Replacement .

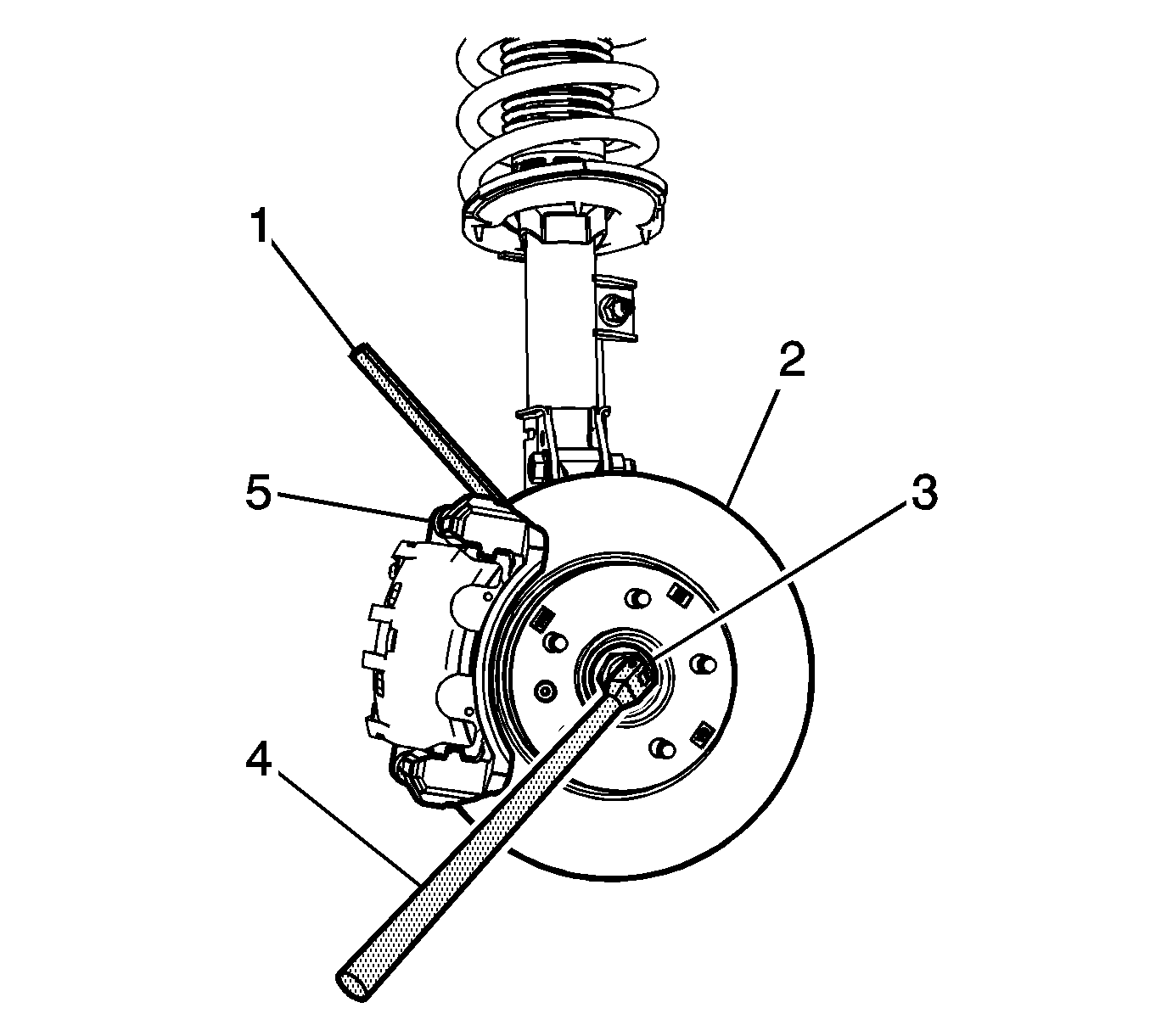

    4. Fig 1: View Of Brake Rotor, Caliper & Axle Nut
    GM2001521Courtesy of GENERAL MOTORS CORP.
  4. Insert a brass drift or punch (1) between the brake rotor cooling fins (2) and the brake caliper mounting bracket (4).
  5. Using the appropriate size socket and a breaker bar (4), remove the wheel drive shaft nut (3).
    6. Fig 2: View Of Wheel Drive Shaft Nut
    GM2001520Courtesy of GENERAL MOTORS CORP.
    NOTE: Once the wheel drive shaft nut has been removed, discard and replace with NEW. DO NOT re-use the nut.
  6. Remove the wheel drive shaft nut (2) from the wheel drive shaft (1).

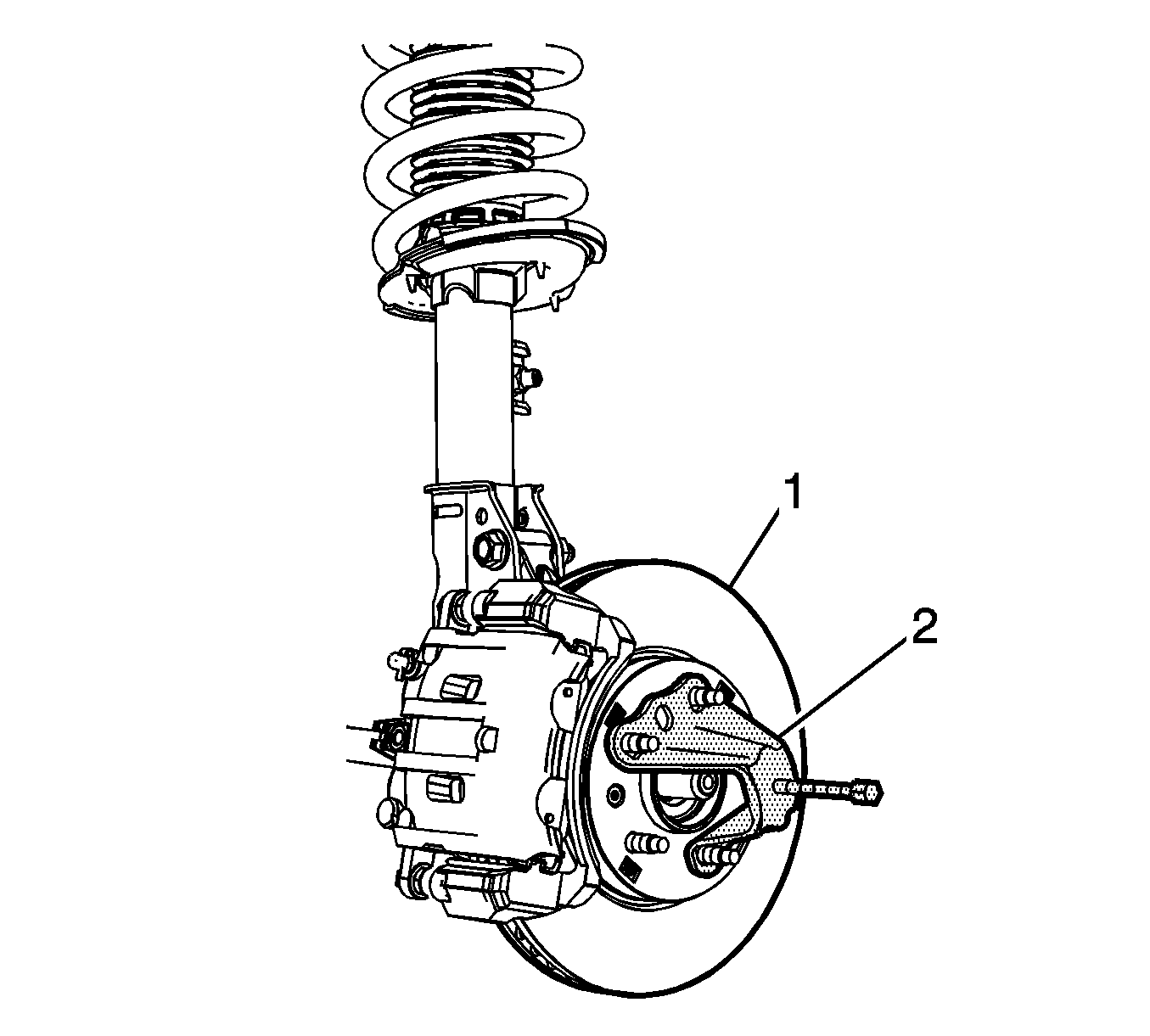

    7. Fig 3: Separating Wheel Drive Shaft & Steering Knuckle
    GM2001518Courtesy of GENERAL MOTORS CORP.
  7. Using the J 42129  (2), separate the wheel drive shaft from the brake rotor and wheel bearing/hub assembly (1). See Special Tools .
  8. Remove the outer tie rod end from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
  9. Remove the stabilizer bar link from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .
  10. Remove the lower control arm from the steering knuckle. Refer to Lower Control Arm Replacement .

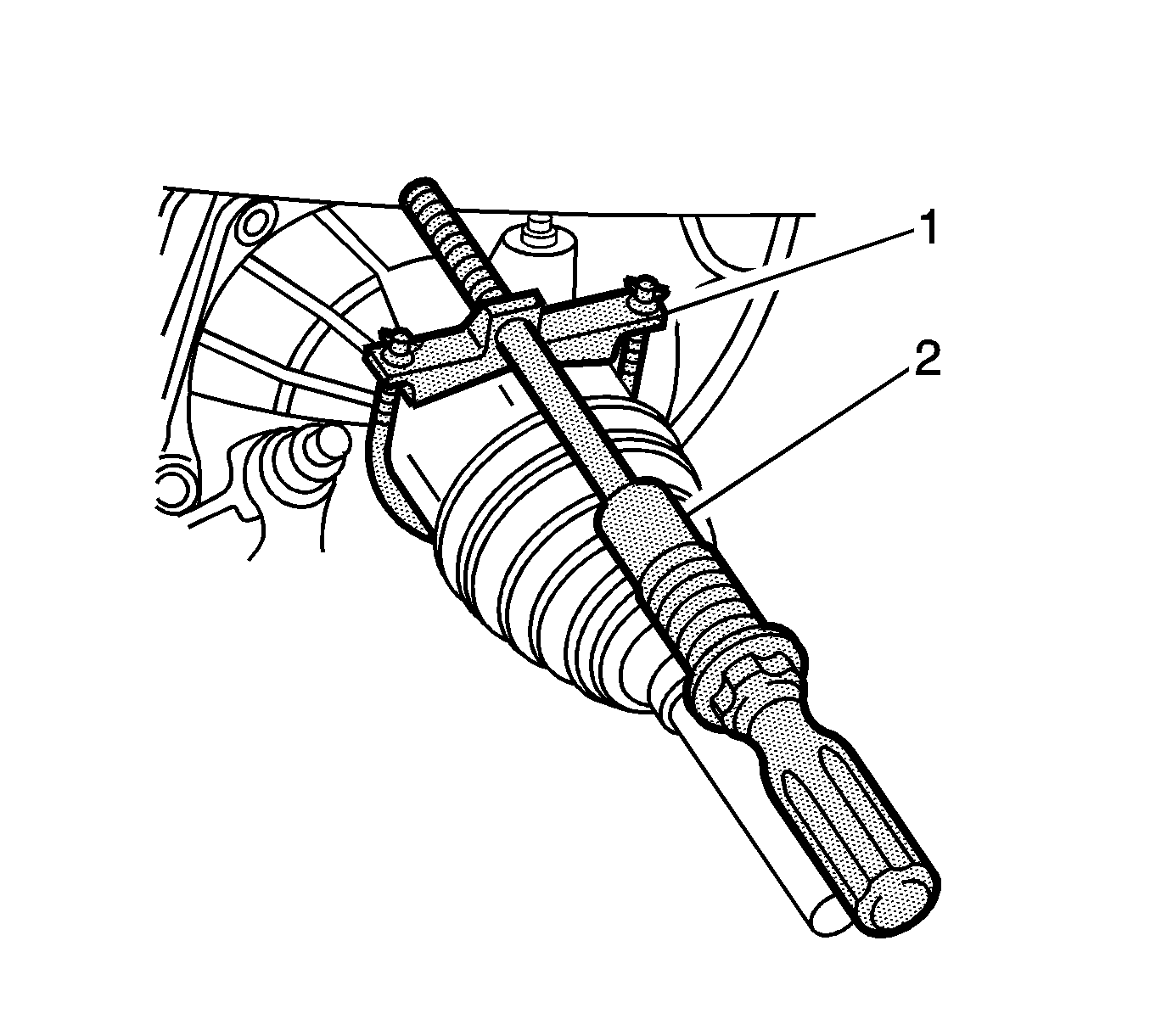

    11. Fig 4: Disengaging Wheel Drive Shaft From Intermediate Wheel Drive Shaft
    GM859573Courtesy of GENERAL MOTORS CORP.
  11. Install the J 2619-01  , J 29794  , and the J 45341  on the wheel drive shaft inner joint groove. See Special Tools .
  12. Using the J 2619-01  , J 29794  , and the J 45341  , remove the wheel drive shaft. See Special Tools .
  13. Remove the wheel drive shaft from the knuckle.
