Radiator Replacement (Without HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

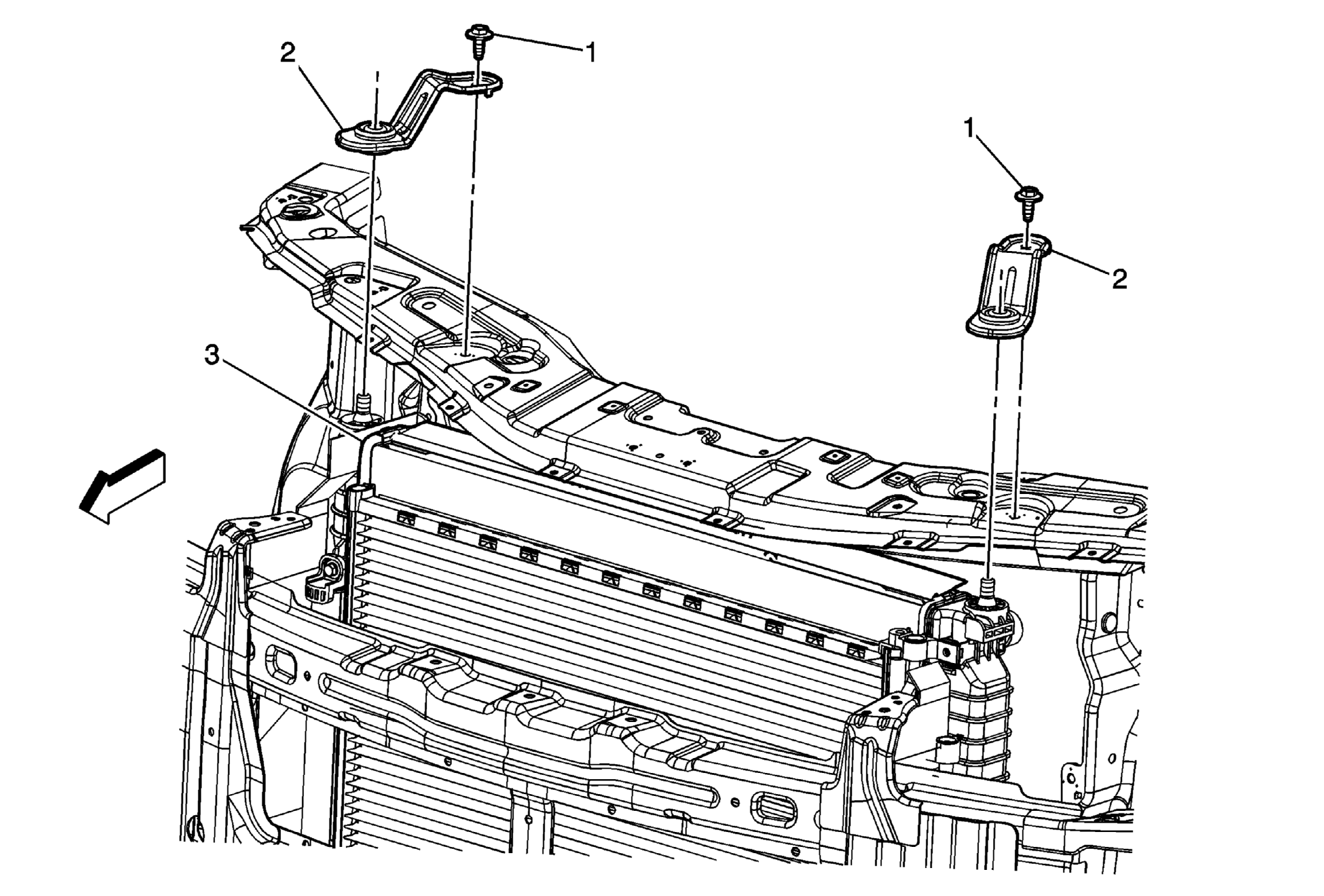

Fig 1: View Of Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) Raise and suitably support the vehicle as necessary. Refer to Lifting and Jacking the Vehicle Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LY7) or Radiator Inlet Hose Replacement (LZ4) or Radiator Inlet Hose Replacement (LE5) Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LY7) or Radiator Outlet Hose Replacement (LZ4) or Radiator Outlet Hose Replacement (LE5) Remove the transmission fluid auxiliary cooler. Refer to Transmission Fluid Auxiliary Cooler Replacement Reposition the fan shroud. Refer to Engine Coolant Fan Motor Replacement (LE5, LZ4, LY7)
1	Radiator Support Bolt (Qty 2) CAUTION: Refer to Fastener Caution . Tighten: 22 N.m (16 lb ft)
2	Radiator Support Bracket (Qty 2)
3	Radiator
