Radiator Inlet Hose Replacement (LZ4)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

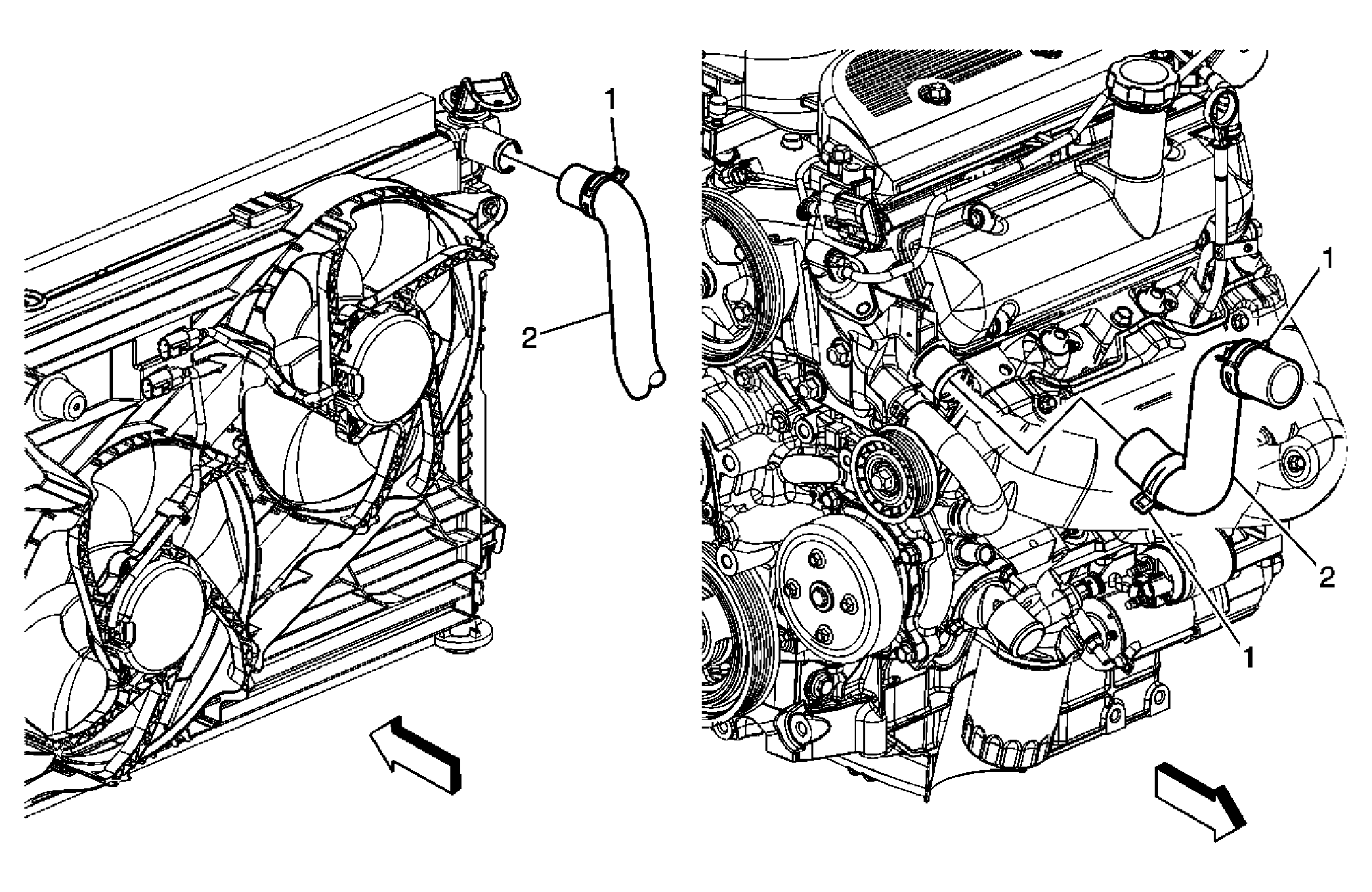

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) . |
|
| 1 | Radiator Inlet Hose Clamps (Qty 2). |
| 2 | Radiator Inlet Hose. |
