Radiator Drain Cock Replacement (With HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

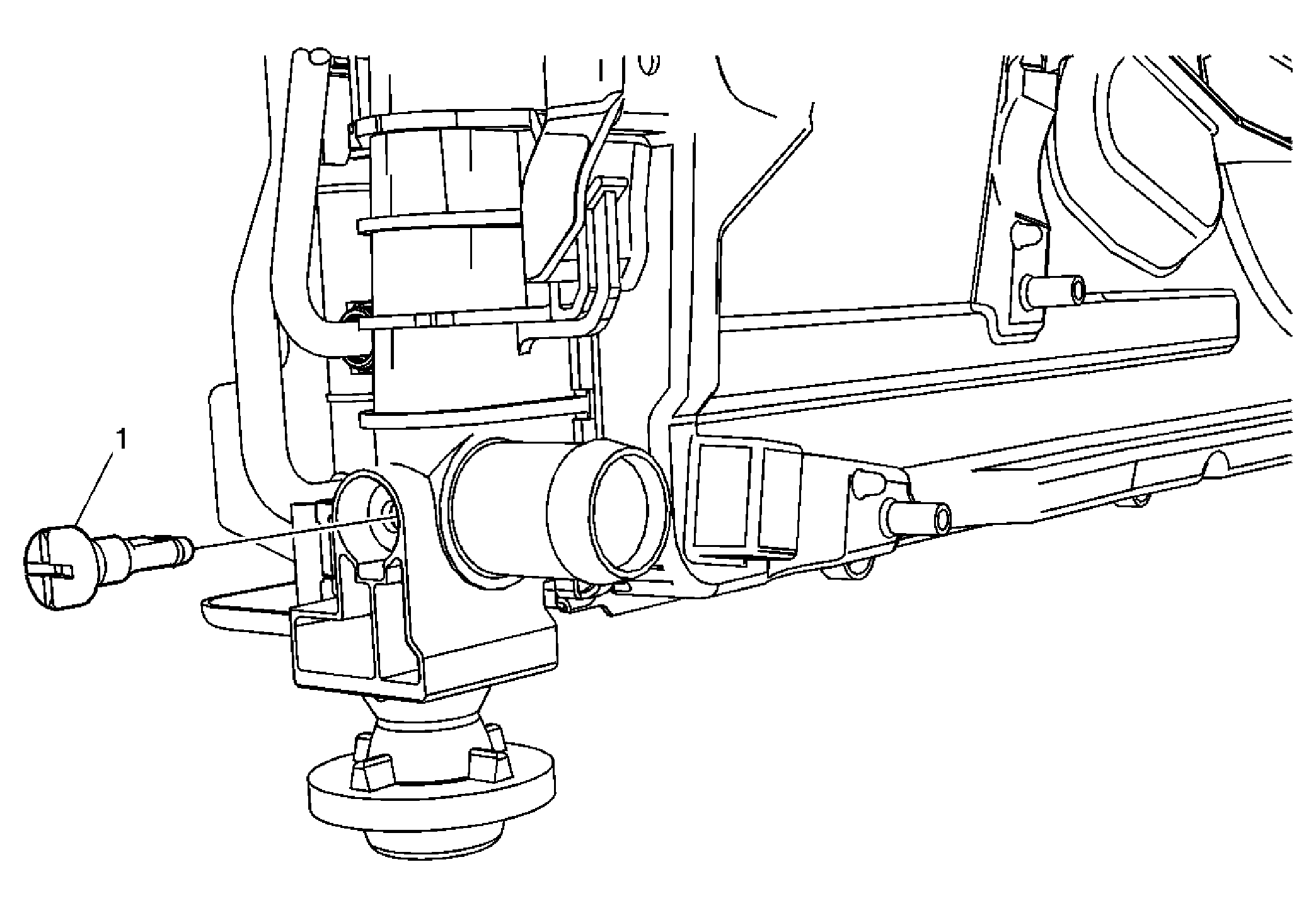

Fig 1: Radiator Drain Cock

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) .
1	Drain Cock Procedure Remove the radiator drain cock from the radiator side tank with a firm tug. Install a new drain cock seal.

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) .

Drain Cock

Procedure

Remove the radiator drain cock from the radiator side tank with a firm tug.
Install a new drain cock seal.
