Engine Coolant Fan Replacement (HP5)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

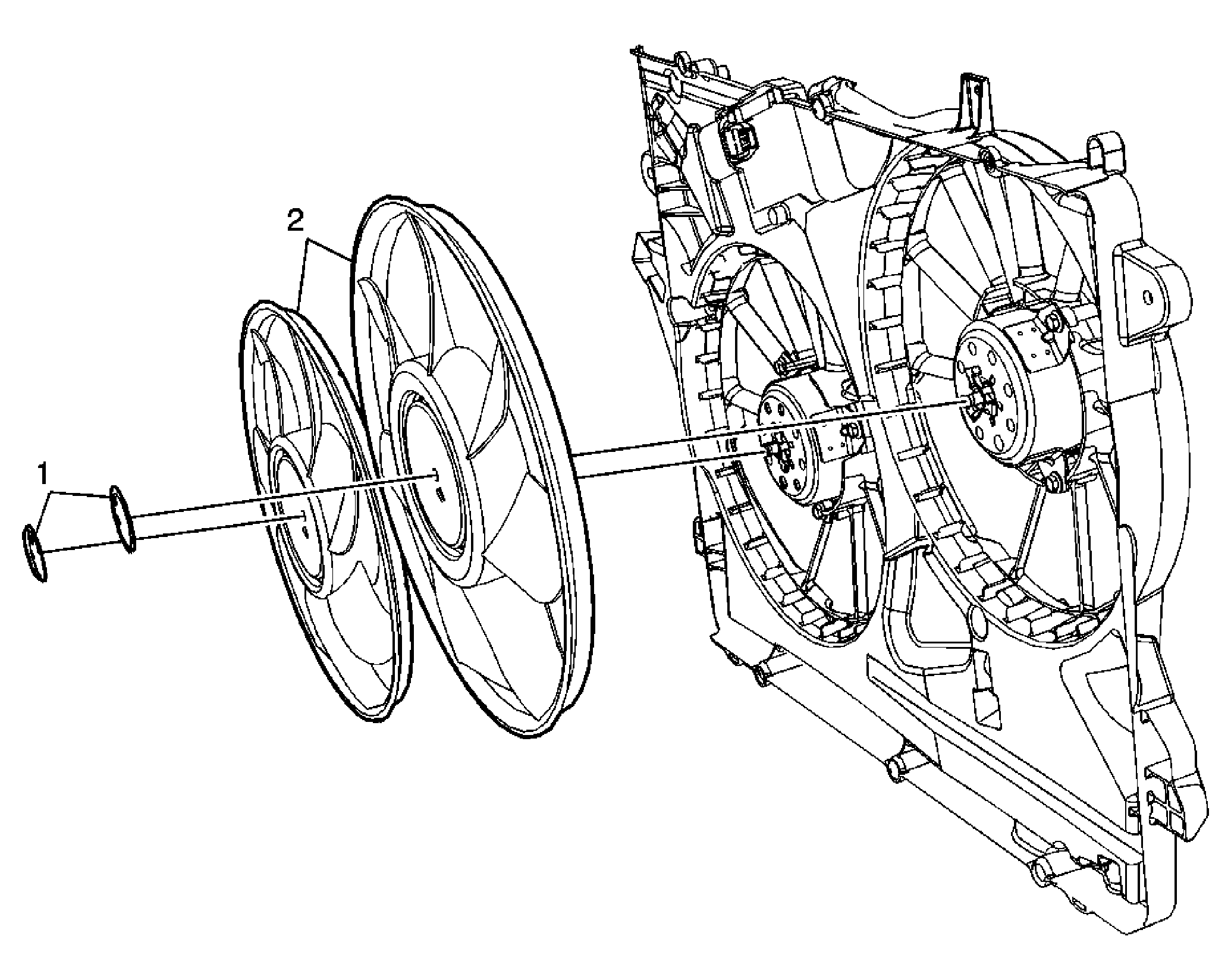

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (LAT) or Cooling Fan and Shroud Replacement (HP5) |
|
| 1 | Engine Coolant Fan Retainers (Qty 2) |
| 2 | Engine Coolant Fans |
