Engine Coolant Fan Motor Replacement (LAT)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

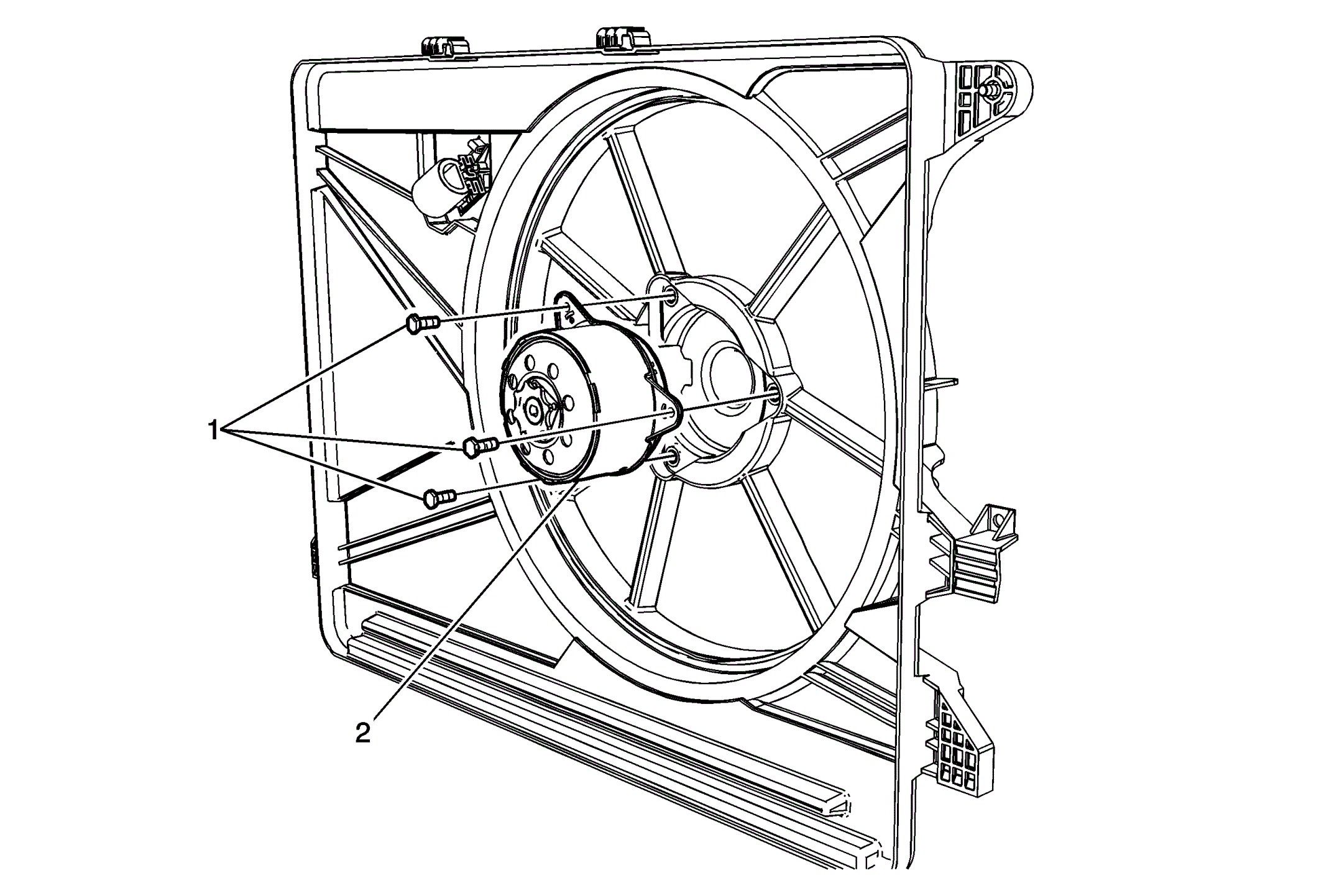

Fig 1: Engine Coolant Fan Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (LAT) . Remove the cooling fan blade. Refer to Engine Coolant Fan Replacement (LAT) . Unclip the fan motors wiring harness from the fan shroud.
1	Cooling Fan Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Cooling Fan Motor

Callout

Component Name

Preliminary Procedures

Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (LAT) .
Remove the cooling fan blade. Refer to Engine Coolant Fan Replacement (LAT) .
Unclip the fan motors wiring harness from the fan shroud.

Cooling Fan Motor Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Cooling Fan Motor
