Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: BPMV Bracket Nut

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bracket.
Loosely install the BPMV bracket nut (1).

Fig 2: BPMV Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the 2 BPMV bracket bolts (1) and tighten to 10 N.m (89 lb in).
Tighten the BPMV bracket nut to 10 N.m (89 lb in).

Fig 3: BPMV Assembly

Courtesy of GENERAL MOTORS CORP.

Carefully position the BPMV assembly (1) to the BPMV bracket insulators.

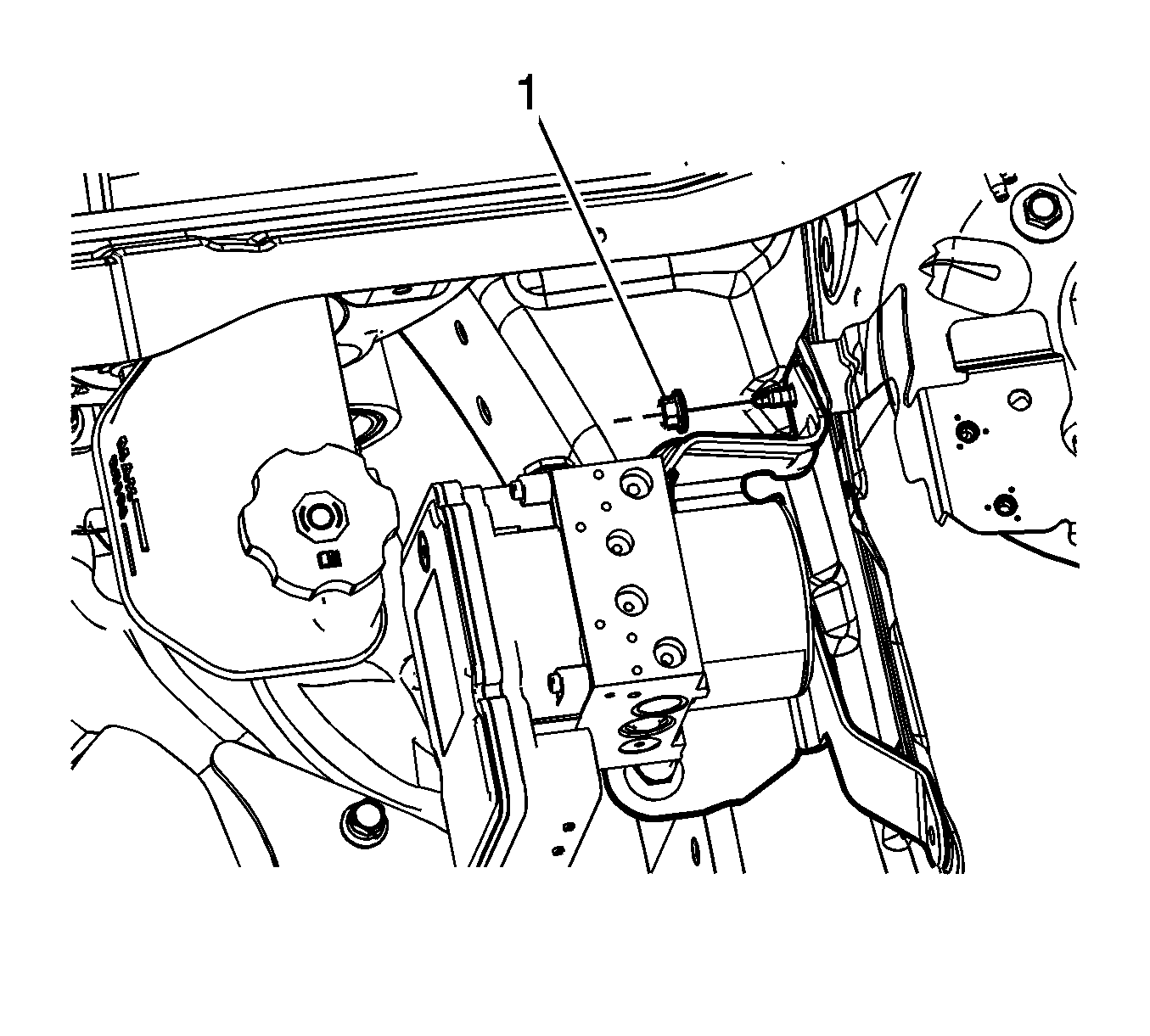

Fig 4: BPMV Bolt

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bolt (1) and tighten to 10 N.m (89 lb in).
Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
Install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement (HP7) or Underhood Electrical Center or Junction Block Replacement (HP5) .
