Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing a new master cylinder, bench bleed the master cylinder. Refer to Master Cylinder Bench Bleeding (Without RPO HP5)  or Master Cylinder Bench Bleeding (With RPO HP5) .

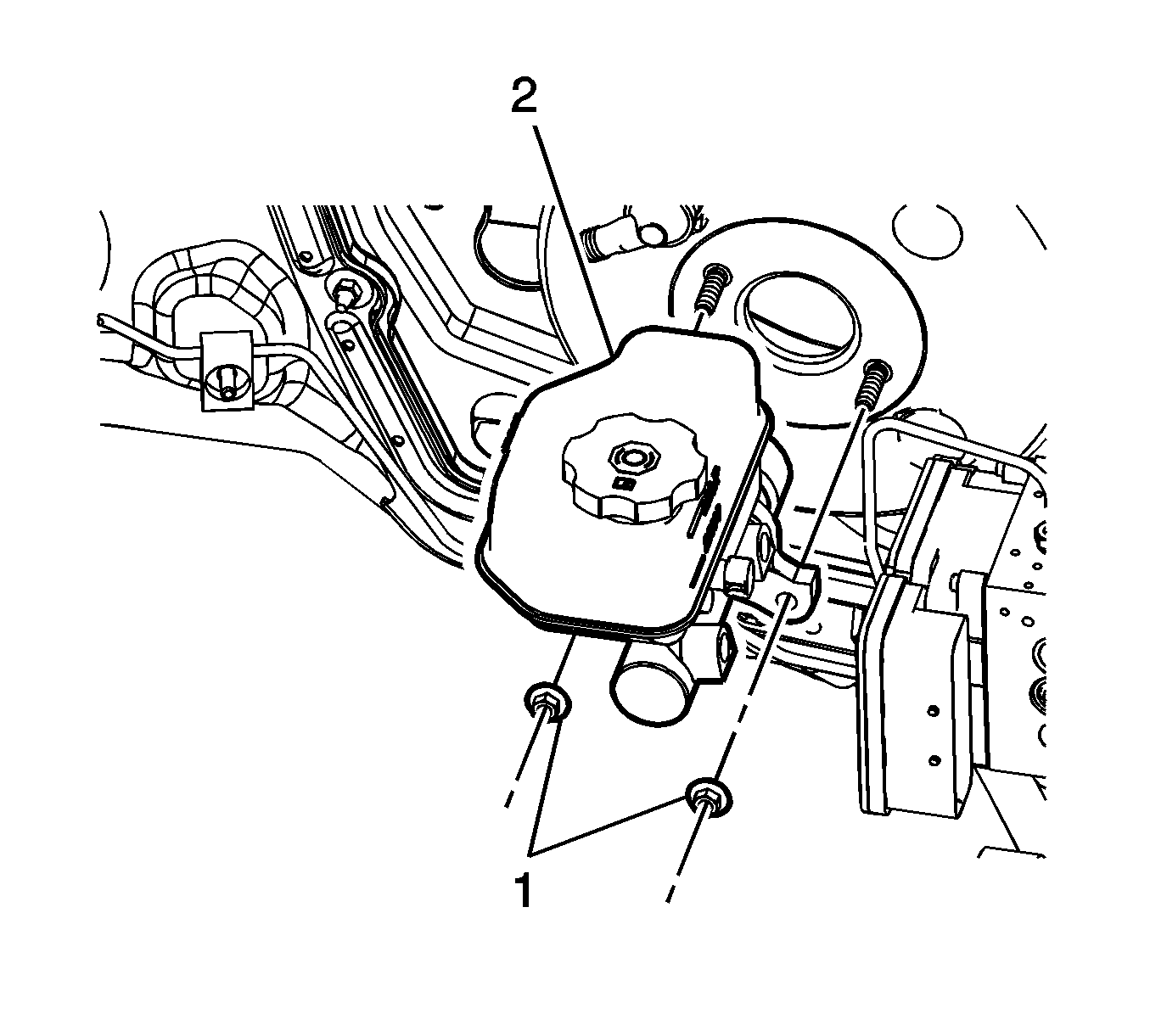

    2. Fig 1: Master Cylinder And Nuts
    GM1874782Courtesy of GENERAL MOTORS CORP.
  2. Install the master cylinder (2).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the 2 master cylinder nuts (1) and tighten to 25 N.m (18 lb ft).

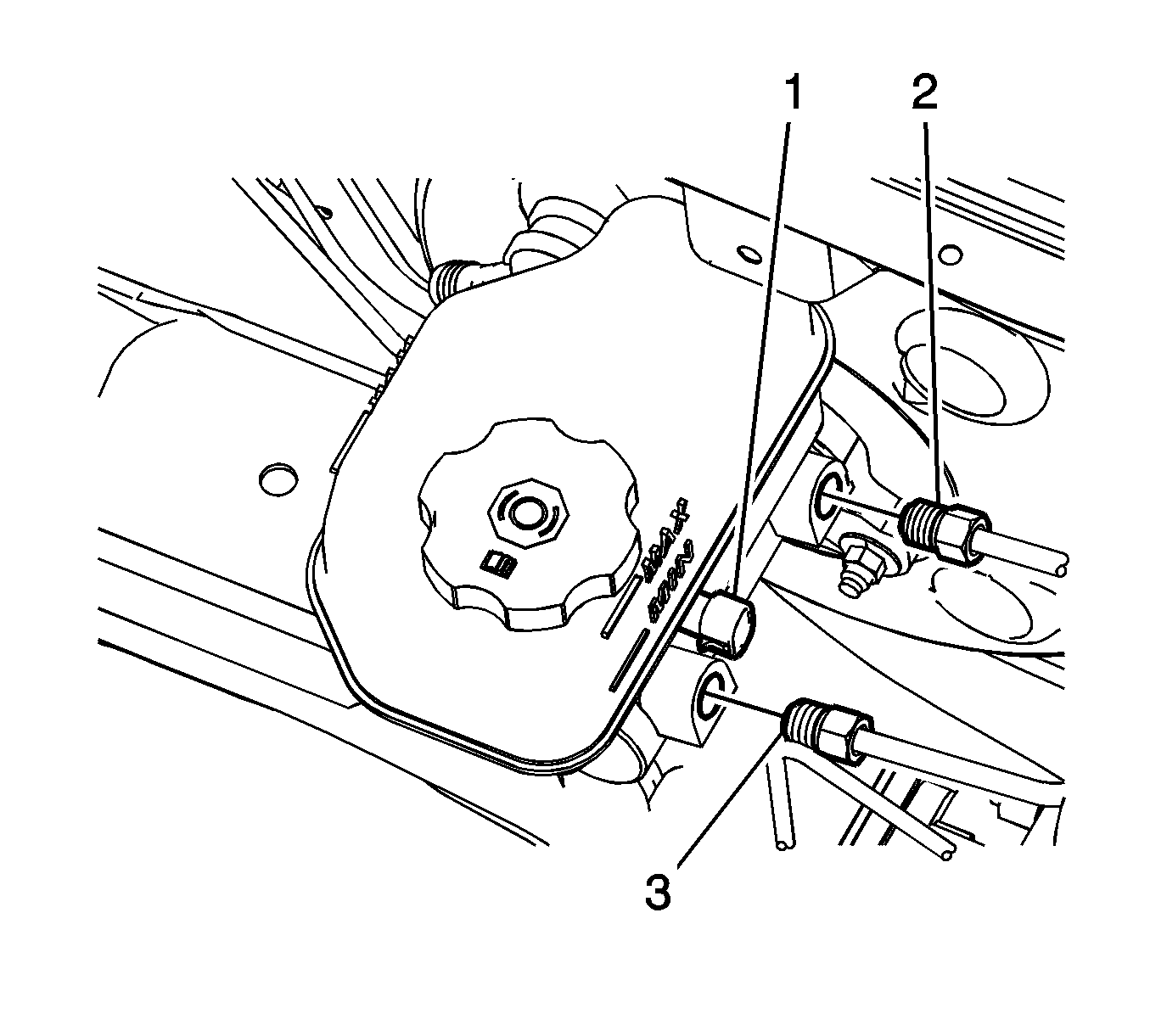

    4. Fig 2: Master Cylinder Fluid Level Sensor Electrical Connector
    GM1874781Courtesy of GENERAL MOTORS CORP.
  4. Connect the master cylinder fluid level sensor electrical connector (1).
  5. Connect the master cylinder primary brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).
  6. Connect the master cylinder secondary brake pipe fitting (3) and tighten to 18 N.m (13 lb ft).
  7. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement .
  8. Install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement (HP7) or Underhood Electrical Center or Junction Block Replacement (HP5) .
  9. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)  or Hydraulic Brake System Bleeding (Pressure) .
