Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

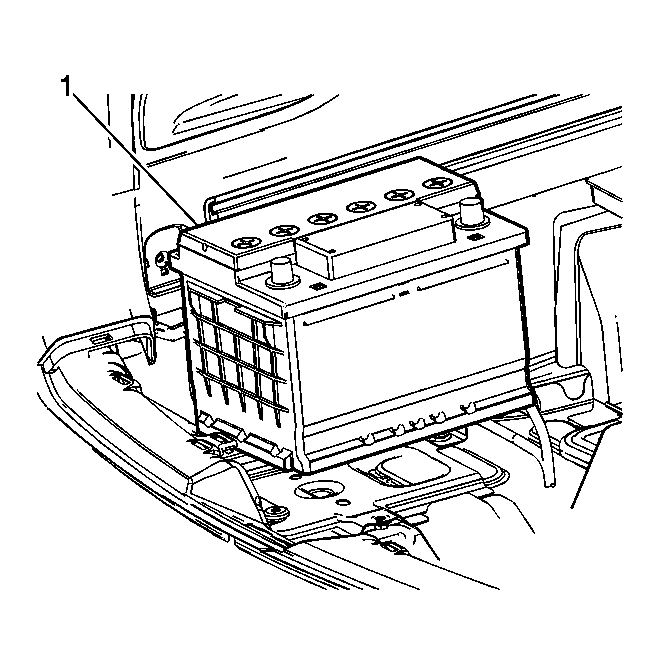

    Fig 1: Battery
    GM2107963Courtesy of GENERAL MOTORS CORP.
  1. Position the battery (1) into the vehicle.

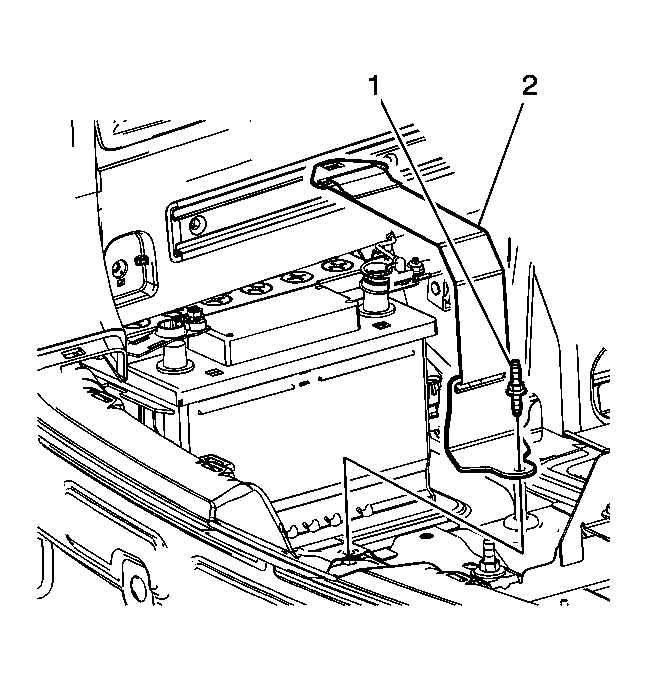

    2. Fig 2: Battery Hold Down Strap Fastener
    GM2107961Courtesy of GENERAL MOTORS CORP.
  2. Install the battery hold down (2) to the battery and battery tray.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the battery hold down strap fastener (1) and tighten to 9 N.m (80 lb in).

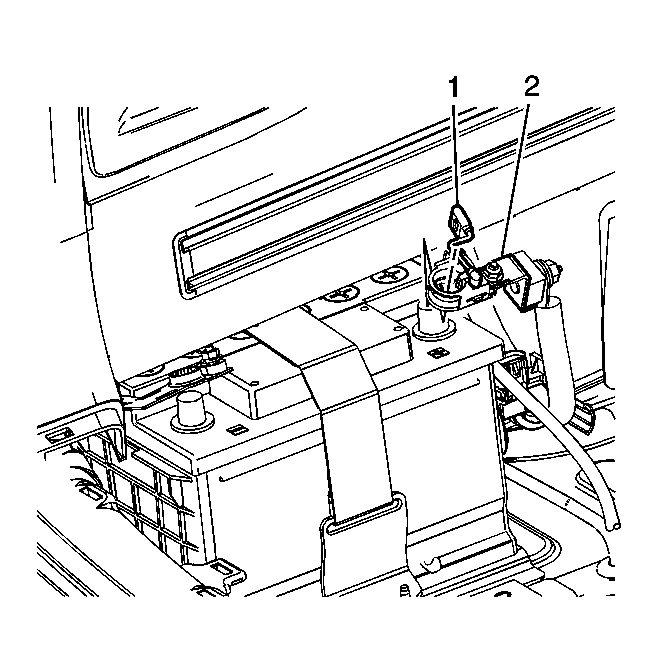

    4. Fig 3: Positive Cable Terminal & Lever
    GM2107958Courtesy of GENERAL MOTORS CORP.
  4. Position the positive battery cable terminal (2) to the battery.
  5. Move the terminal lever (1) into the latched position.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (HP5) .
