Battery Negative Cable Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

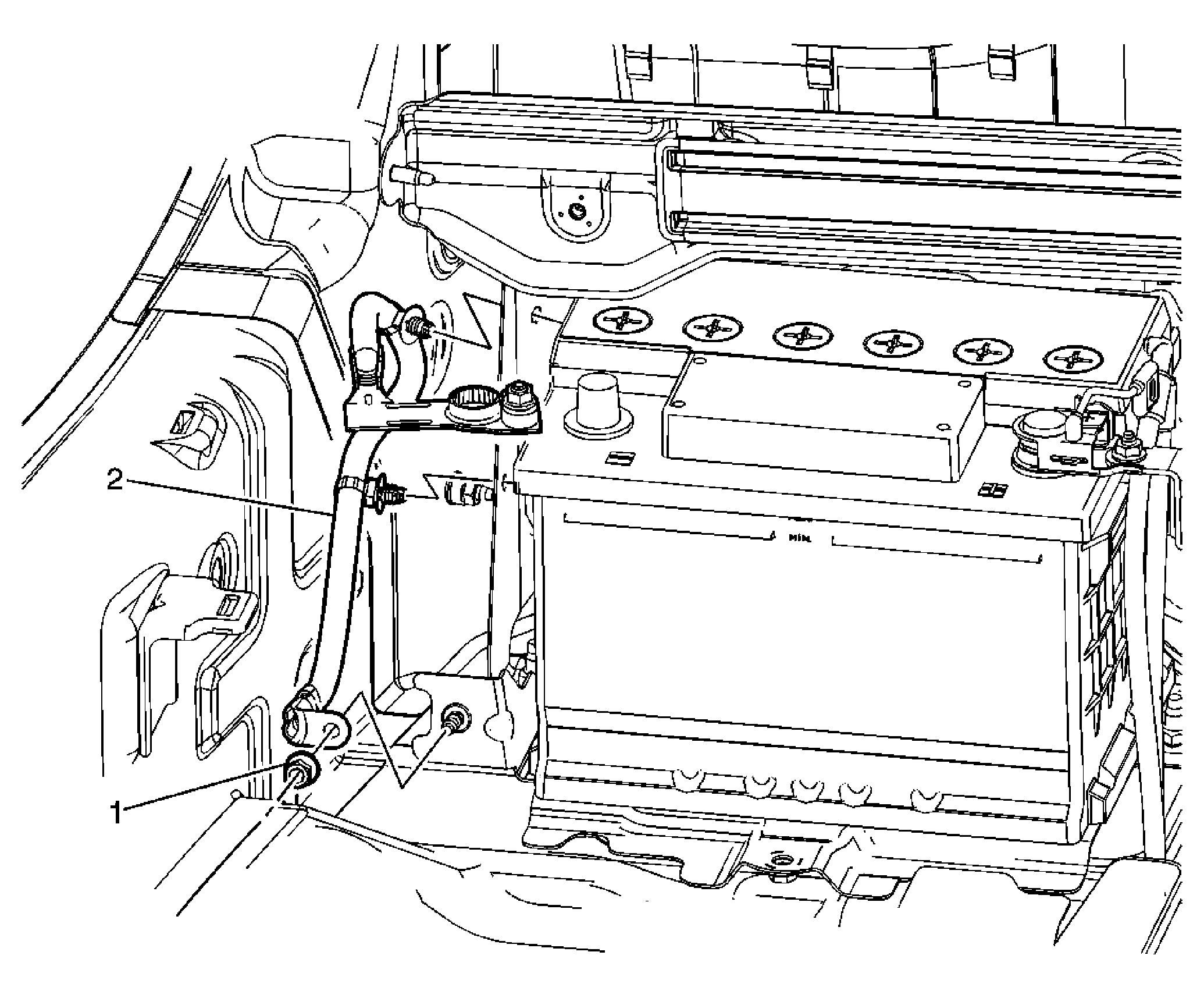

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (HP5) |
|
| 1 | Nut
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Cable Procedure: Disengage the retainers from the battery tray. |
