Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

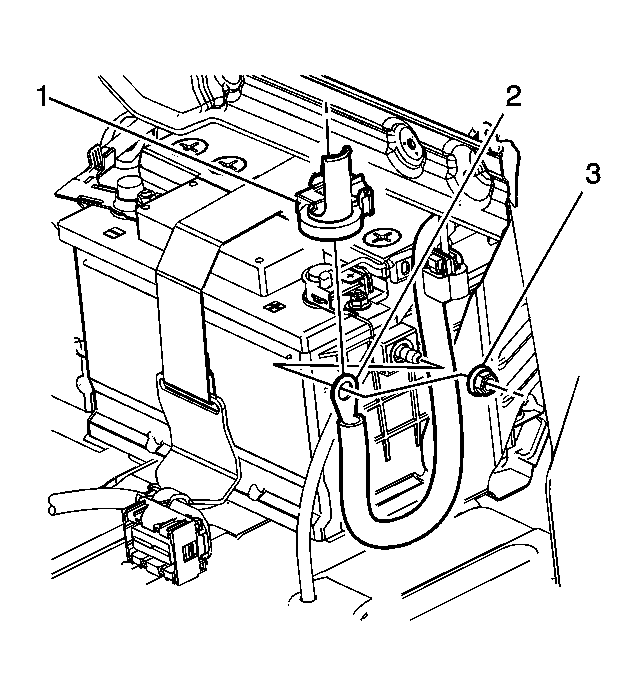

    Fig 1: Current Sensor & Cable
    GM2107977Courtesy of GENERAL MOTORS CORP.
  1. Slide the current sensor (1) into position on the cable (2).
  2. Install tape or retainers to the current sensor and cable as noted during removal.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the positive battery cable fuse fastener and cable (2) to the fuse and tighten to 5 N.m (45 lb in).

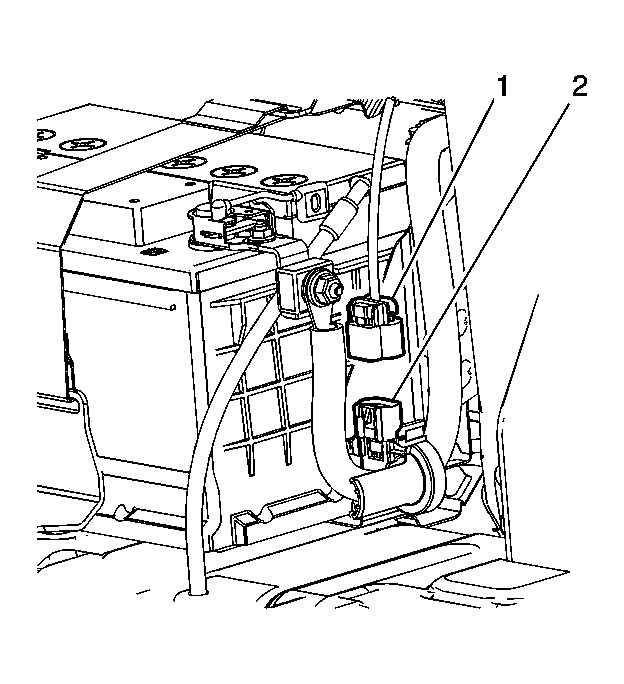

    4. Fig 2: Current Sensor Harness Connector
    GM2107973Courtesy of GENERAL MOTORS CORP.
  4. Connect the current sensor harness connector (1) to the sensor (2).
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (HP5) .
