Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

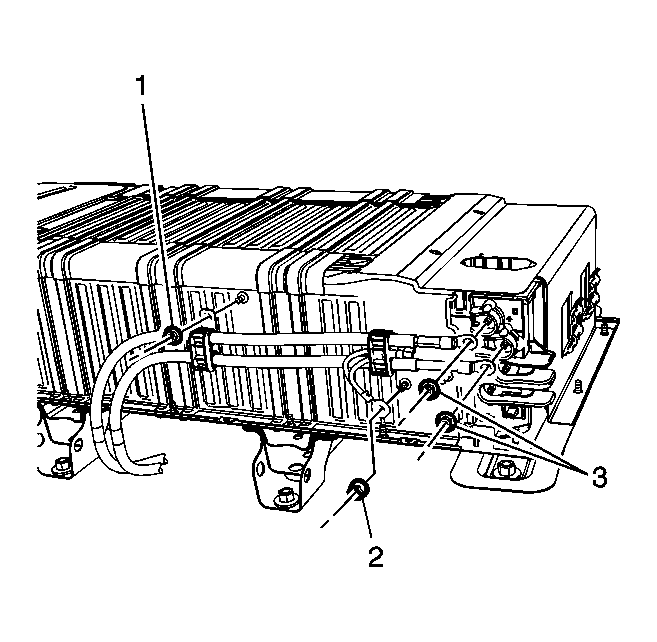

    Fig 1: Battery Cable Fasteners
    GM2156799Courtesy of GENERAL MOTORS CORP.
  1. Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety .
  2. Perform the high voltage disabling procedure. Refer to High Voltage Disabling .
  3. Disconnect the service disconnect. Refer to Hybrid Battery Service Disconnect/Connect .
  4. Remove the high voltage terminal cover. Refer to Battery Terminal Cover Replacement .
  5. Remove the battery cable fastener (1) the cover ground fastener (2) and the battery terminal fasteners (3).
    6. Fig 2: 300 Volt Terminals
    GM2158829Courtesy of GENERAL MOTORS CORP.
  6. Using the EL-48569:  covers, cover the 300 Volt terminals (1).
  7. Disconnect the 16-way Low Voltage connector and detach the harness retainers.
    8. Fig 3: Drive Motor Generator Battery Fasteners
    GM2158660Courtesy of GENERAL MOTORS CORP.
  8. Remove the push-pin from the outlet duct and reposition the duct enough to remove the right front battery nut.
  9. Remove the drive motor generator battery fasteners (1).
    10. Fig 4: Identifying Tool At Lifting Points
    GM2168027Courtesy of GENERAL MOTORS CORP.
  10. Use the EL-48264:  lift tool, to remove the battery.
  11. Install the tool at lifting points (1) and (2).

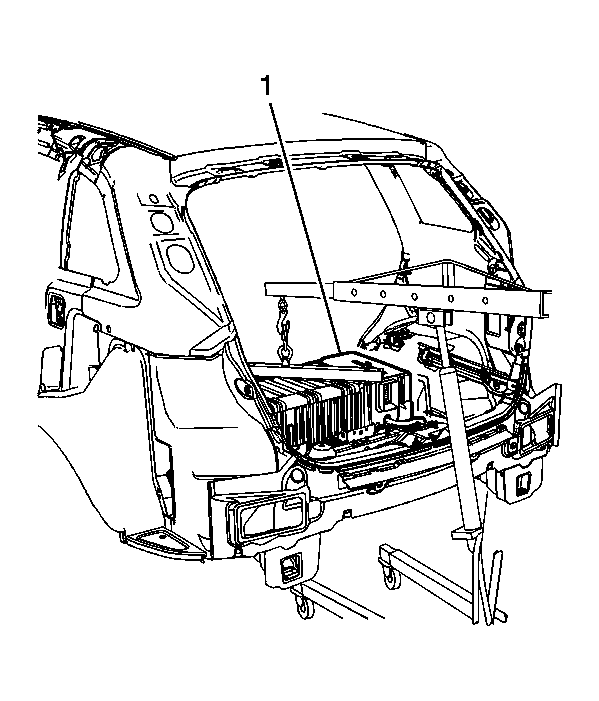

    12. Fig 5: Drive Motor Generator Battery And Lifting Tool
    GM2168102Courtesy of GENERAL MOTORS CORP.
  12. Carefully remove the drive motor generator battery (1).
