Battery Terminal Cover Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

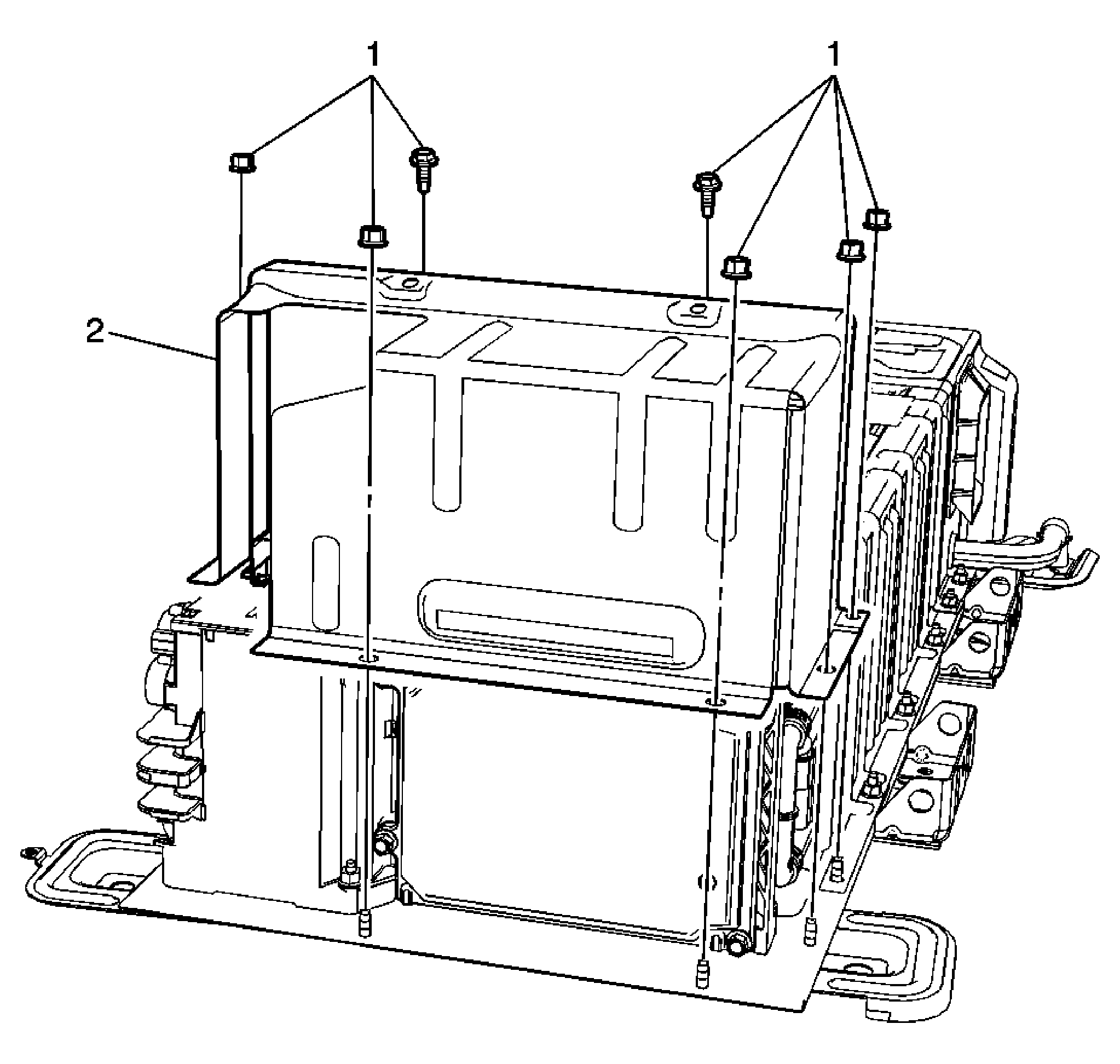

Fig 1: Battery Terminal Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety . Disable the high voltage system. Refer to High Voltage Disabling . Remove the drive motor terminal extension cover. Refer to Drive Motor Battery Cable Terminal Extension Cover Replacement .
1	Battery Terminal Cover Fasteners (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Battery Terminal Cover Procedure: Enable the high voltage system. Refer to High Voltage Enabling .

Callout

Component Name

Preliminary Procedure

Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety .
Disable the high voltage system. Refer to High Voltage Disabling .
Remove the drive motor terminal extension cover. Refer to Drive Motor Battery Cable Terminal Extension Cover Replacement .

Battery Terminal Cover Fasteners (Qty: 7)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Battery Terminal Cover
Procedure:
Enable the high voltage system. Refer to High Voltage Enabling .
