Battery Vent Tube Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

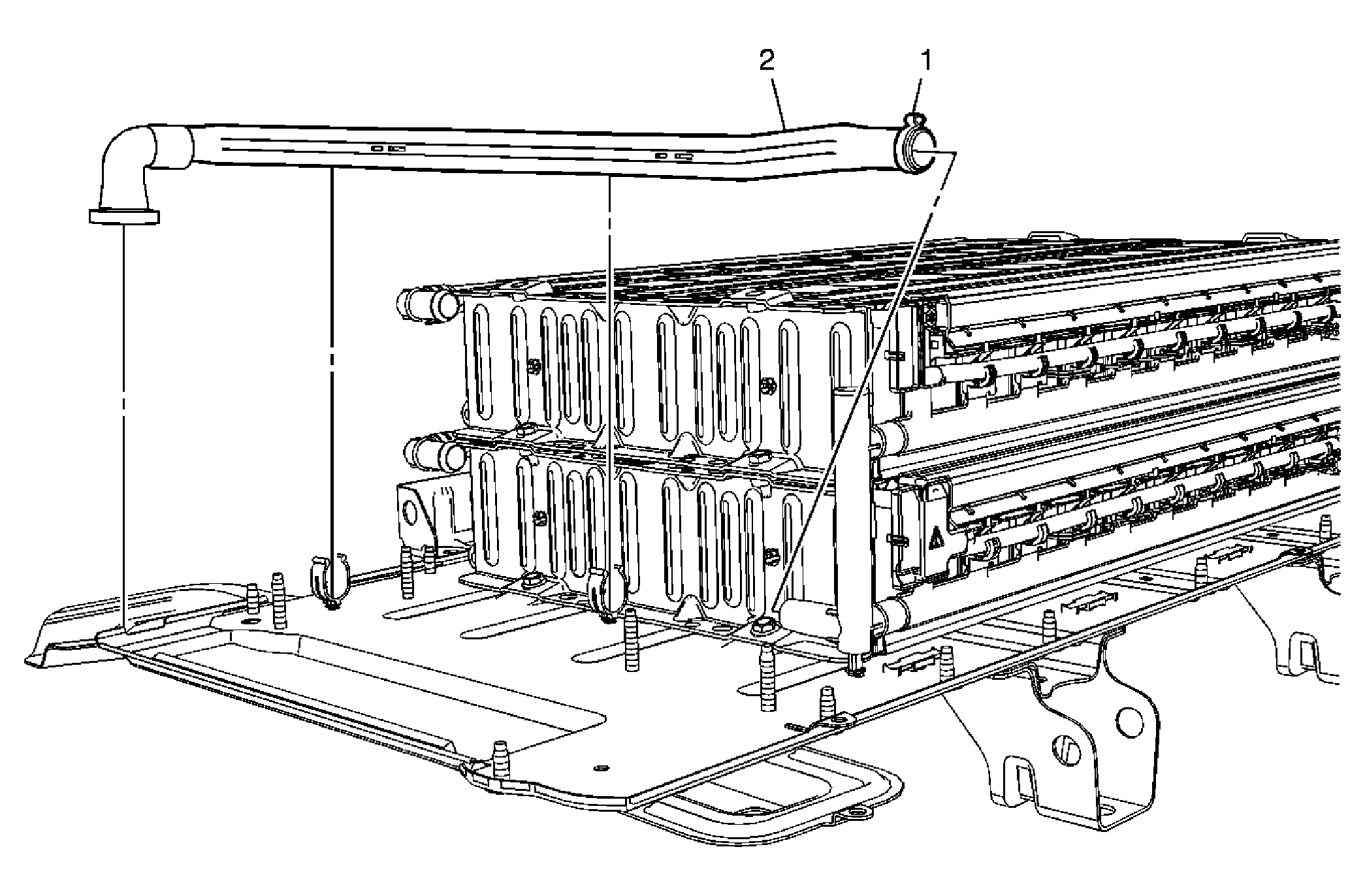

Fig 1: Battery Vent Tube

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety . Disable the high voltage system. Refer to High Voltage Disabling . Reposition the Drive Motor Battery Coolant Cooler. Refer to Drive Motor Battery Coolant Cooler Replacement .
1	Drive Motor Battery Vent Tube Clamp Procedure: Replace the crimped clamp with a spring clamp.
2	Drive Motor Battery Vent Tube Procedure: Enable the high voltage system. Refer to High Voltage Enabling .

Callout

Component Name

Preliminary Procedure

Review the high voltage safety information prior to performing the High Voltage Disabling procedure. Refer to High Voltage Safety .
Disable the high voltage system. Refer to High Voltage Disabling .
Reposition the Drive Motor Battery Coolant Cooler. Refer to Drive Motor Battery Coolant Cooler Replacement .

Drive Motor Battery Vent Tube Clamp
Procedure:
Replace the crimped clamp with a spring clamp.

Drive Motor Battery Vent Tube
Procedure:
Enable the high voltage system. Refer to High Voltage Enabling .
