Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

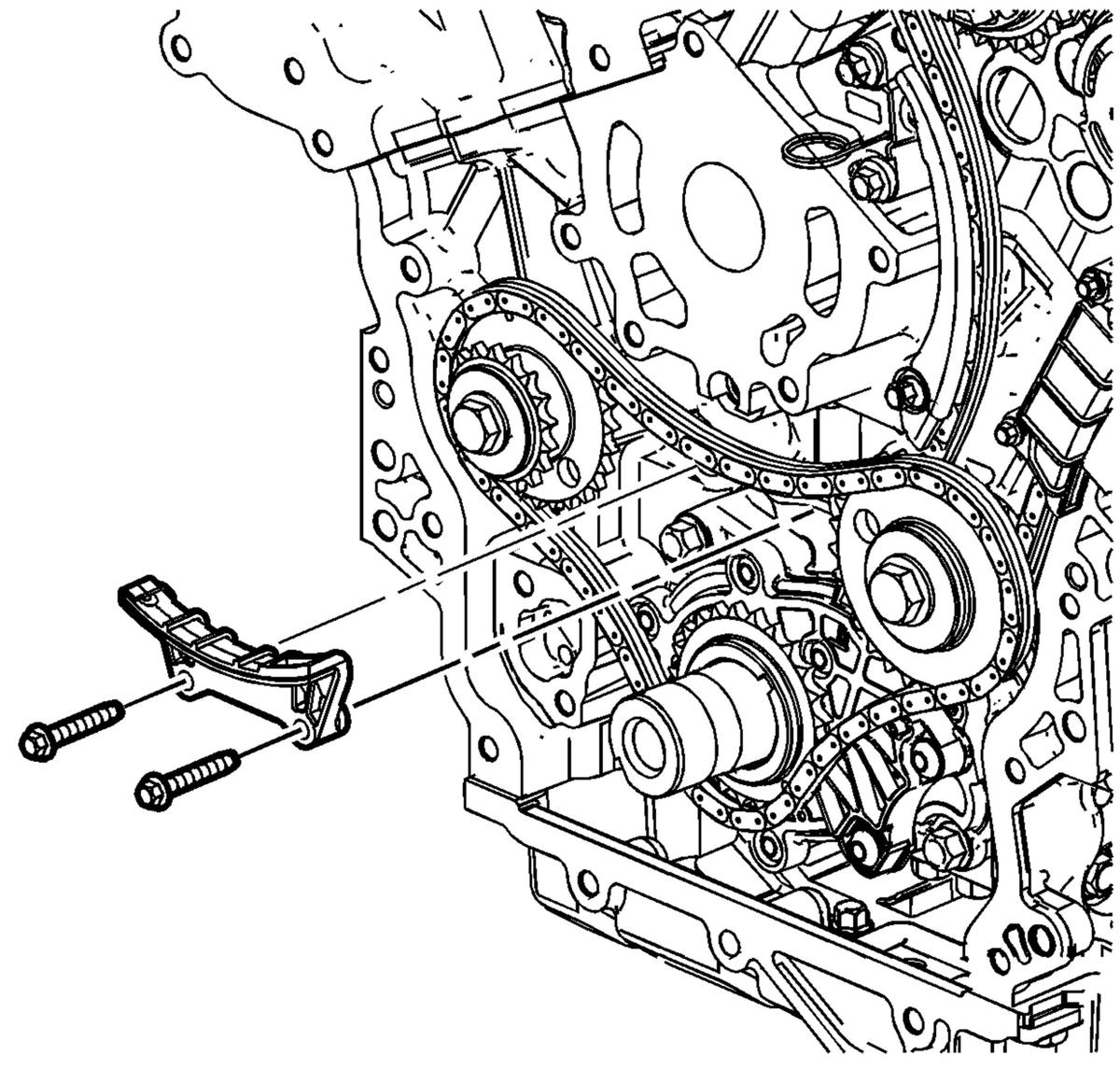

    Fig 1: View Of Upper Primary Camshaft Drive Chain Guides
    GM902846Courtesy of GENERAL MOTORS CORP.
  1. Install the primary upper camshaft drive chain guide. Refer to Primary Timing Chain Guide Installation - Upper .
  2. Install the primary camshaft drive chain tensioner. Refer to Primary Camshaft Intermediate Drive Chain Tensioner Installation .
  3. Install the engine front cover. Refer to Engine Front Cover Replacement .
  4. Install the spark plugs. Refer to Spark Plug Replacement .
