Primary Timing Chain Guide Installation - Upper

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

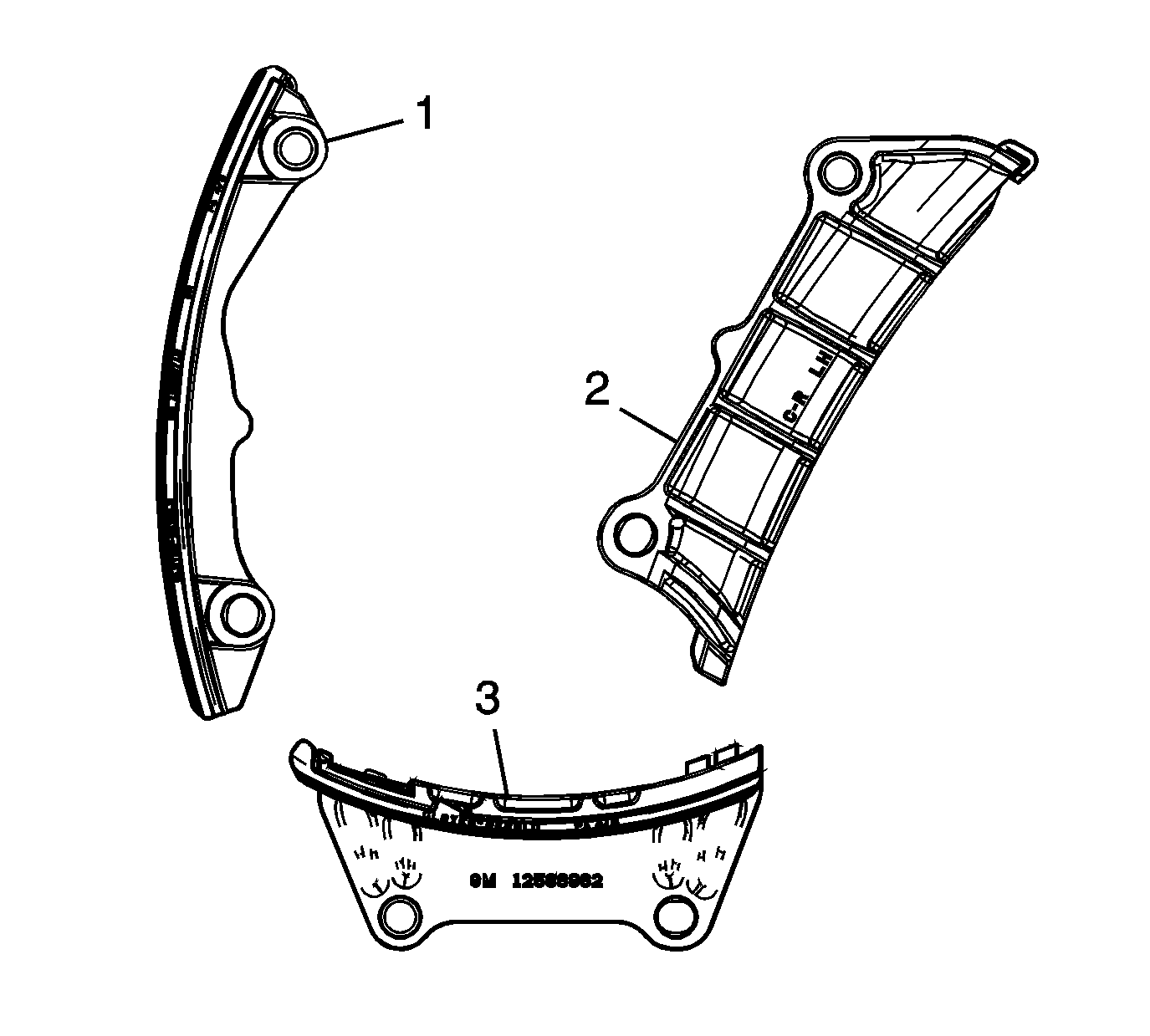

    Fig 1: View Of Camshaft Drive Chain Guide
    GM1852371Courtesy of GENERAL MOTORS CORP.
  1. Ensure the upper primary camshaft drive chain guide (3) is being installed.

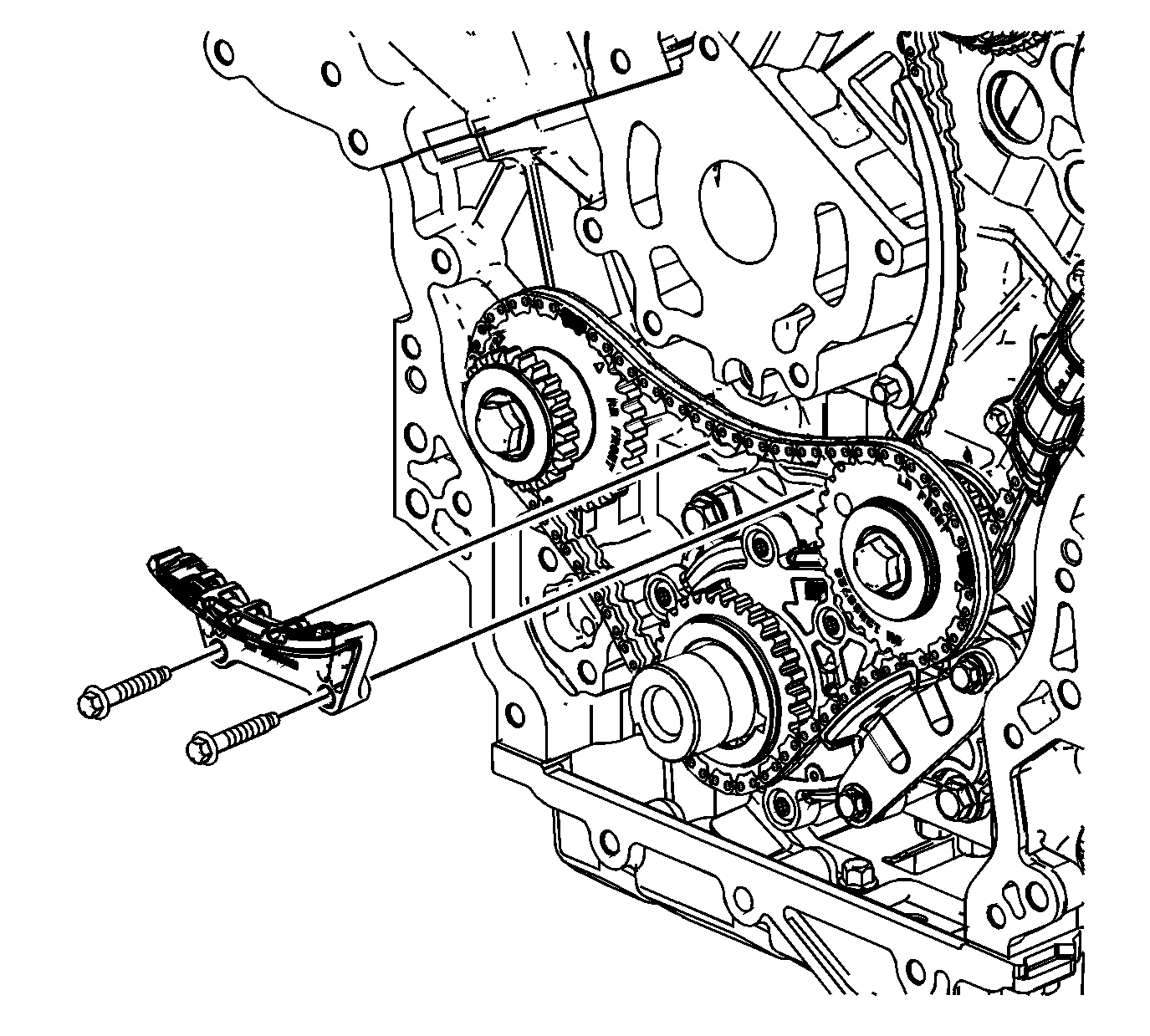

    2. Fig 2: Identifying Primary Camshaft Drive Chain Upper Guide And Bolts
    GM1852982Courtesy of GENERAL MOTORS CORP.
  2. Install the upper primary camshaft drive chain guides.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the upper primary camshaft drive chain guide bolts and tighten to 25 N.m (18 lb ft).
