Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LCS)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

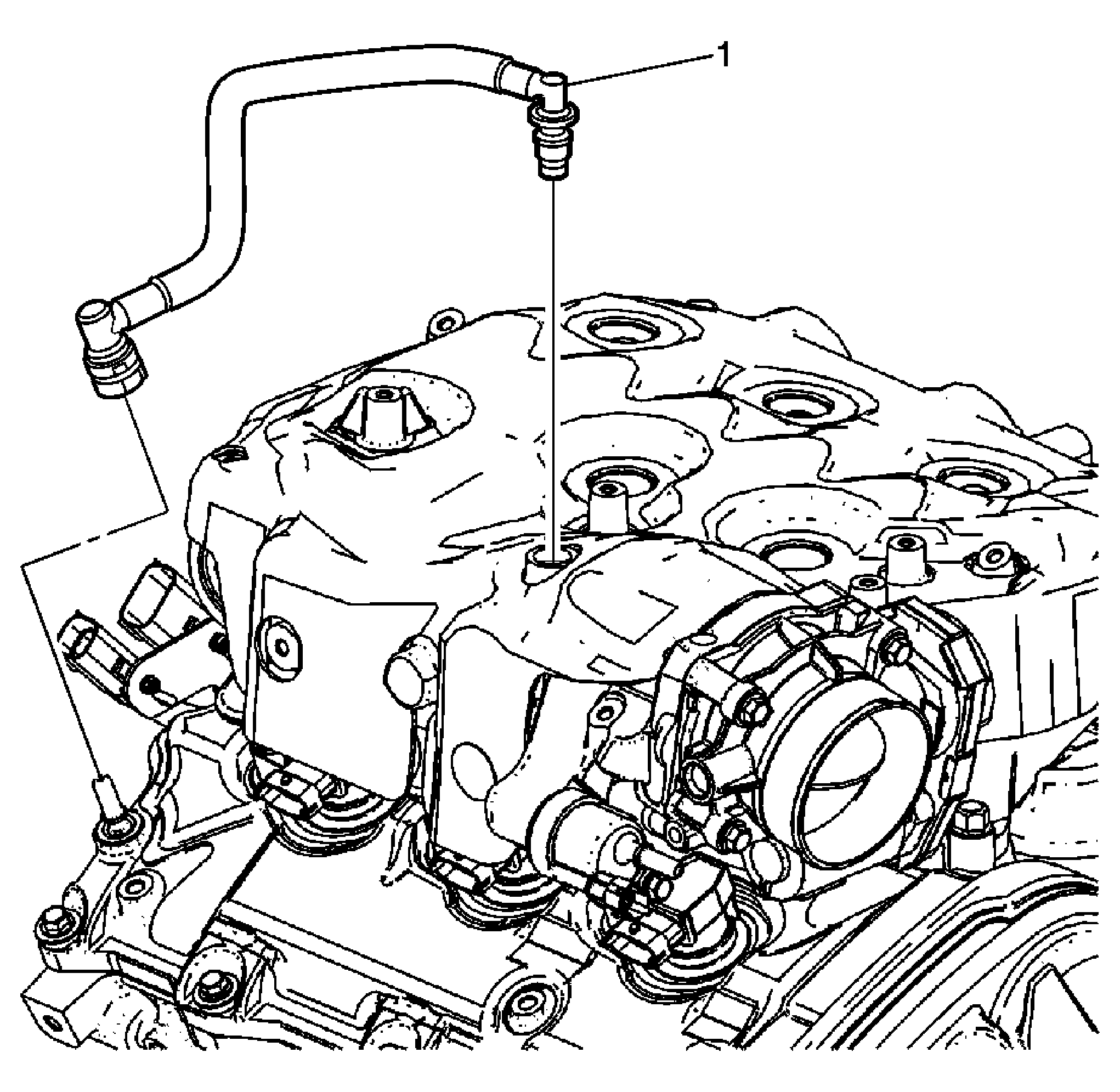

Fig 1: Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LCS)
GM2218796Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the Fuel Injector Sight Shield. Refer to Fuel Injector Sight Shield Replacement (LY7)  or Fuel Injector Sight Shield Replacement (LCS) .
1 Positive Crankcase Ventilation Hose/Pipe/Tube

Procedure

  1. Release the tabs on the end of the tube before removing.
  2. Disconnect the electrical connectors, as needed.
  3. Transfer components as necessary.
