Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

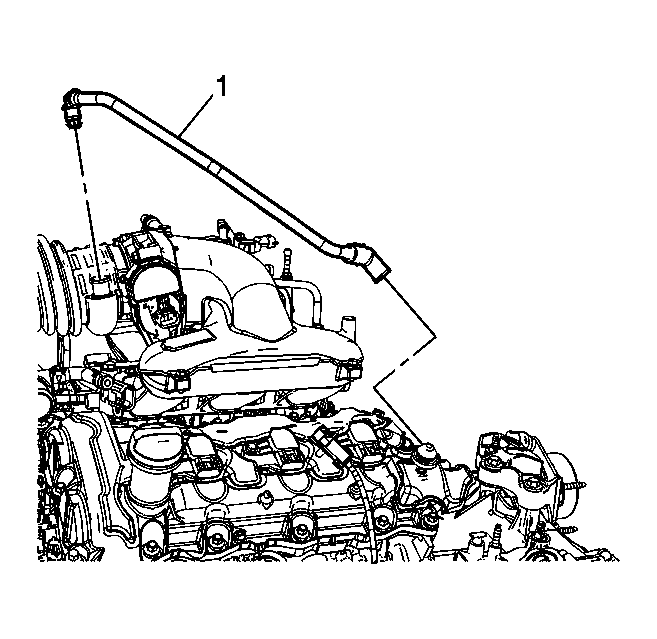

    Fig 1: Positive Crankcase Ventilation Fresh Air Pipe
    GM1897752Courtesy of GENERAL MOTORS CORP.
  1. Connect the PVC air pipe to the valve cover valve.
  2. Connect the PVC fresh air pipe (1) to the air cleaner duct.
  3. Install the engine cover. Refer to Fuel Injector Sight Shield Replacement (LY7)  or Fuel Injector Sight Shield Replacement (LCS) .
