Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement (LY7)  or Drive Belt Replacement (LCS) .
  2. Install the engine support fixture. Refer to Engine Support Fixture .
  3. Remove the starter. Refer to Starter Replacement (LY7) .
    4. Fig 1: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  4. Install the EN 46106  through the starter mounting hole. See Special Tools .
  5. Remove the splash shield. Refer to Engine Splash Shield Replacement .
    6. Fig 2: Identifying Crankshaft Balancer Bolt
    GM1395946Courtesy of GENERAL MOTORS CORP.
  6. Remove the crankshaft balancer bolt.

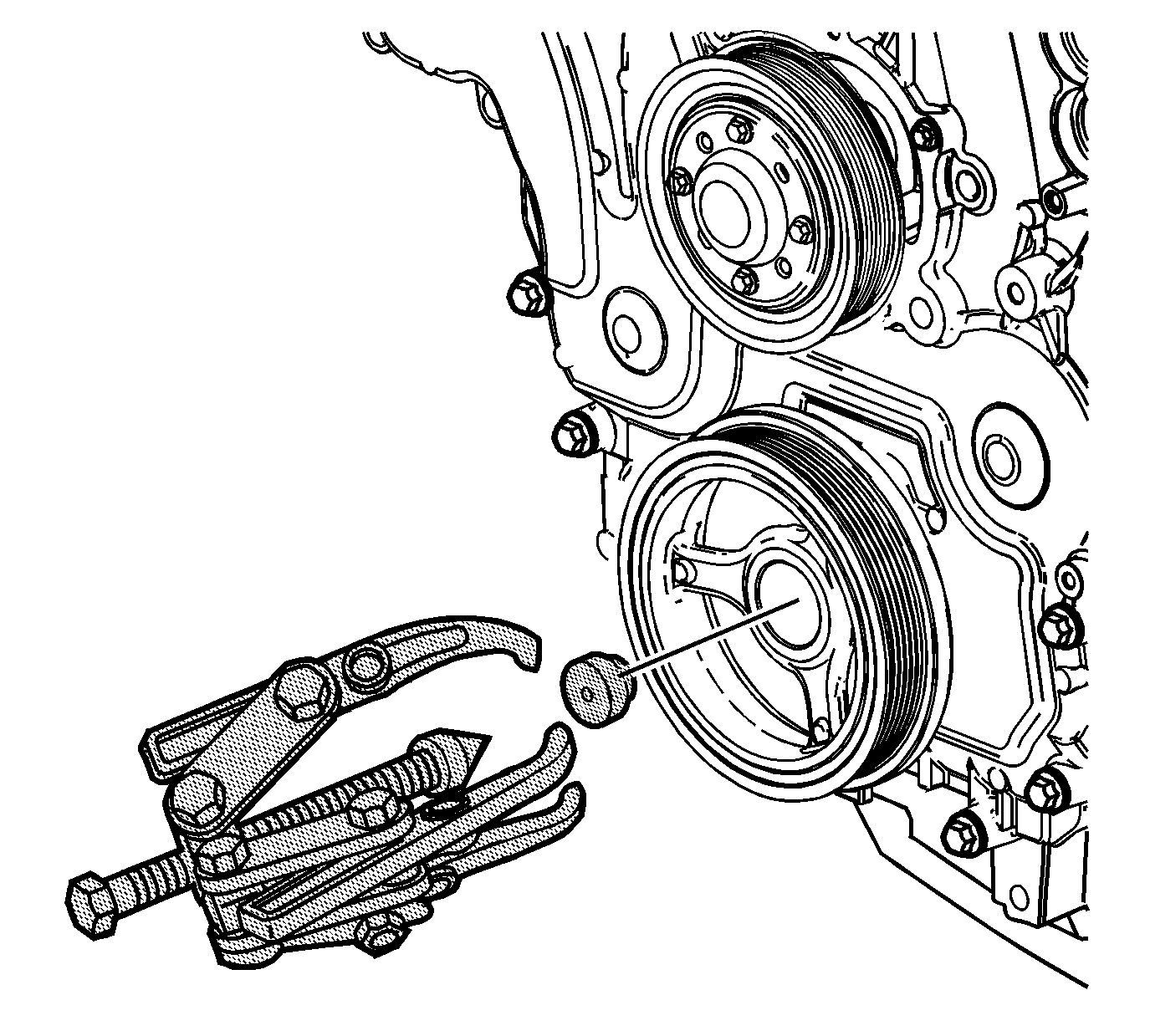

    7. Fig 3: View Of J 38416-2 In The Nose Of The Crankshaft
    GM1395949Courtesy of GENERAL MOTORS CORP.
  7. Install the J 38416-2  in the nose of the crankshaft. See Special Tools .
  8. Install the J 41816  in order to remove the crankshaft balancer.
  9. Tighten the center bolt of the J 41816  in order to pull the crankshaft balancer off of the crankshaft.
  10. Remove the J 41816  from the crankshaft balancer.
