Drive Belt Replacement (LCS)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

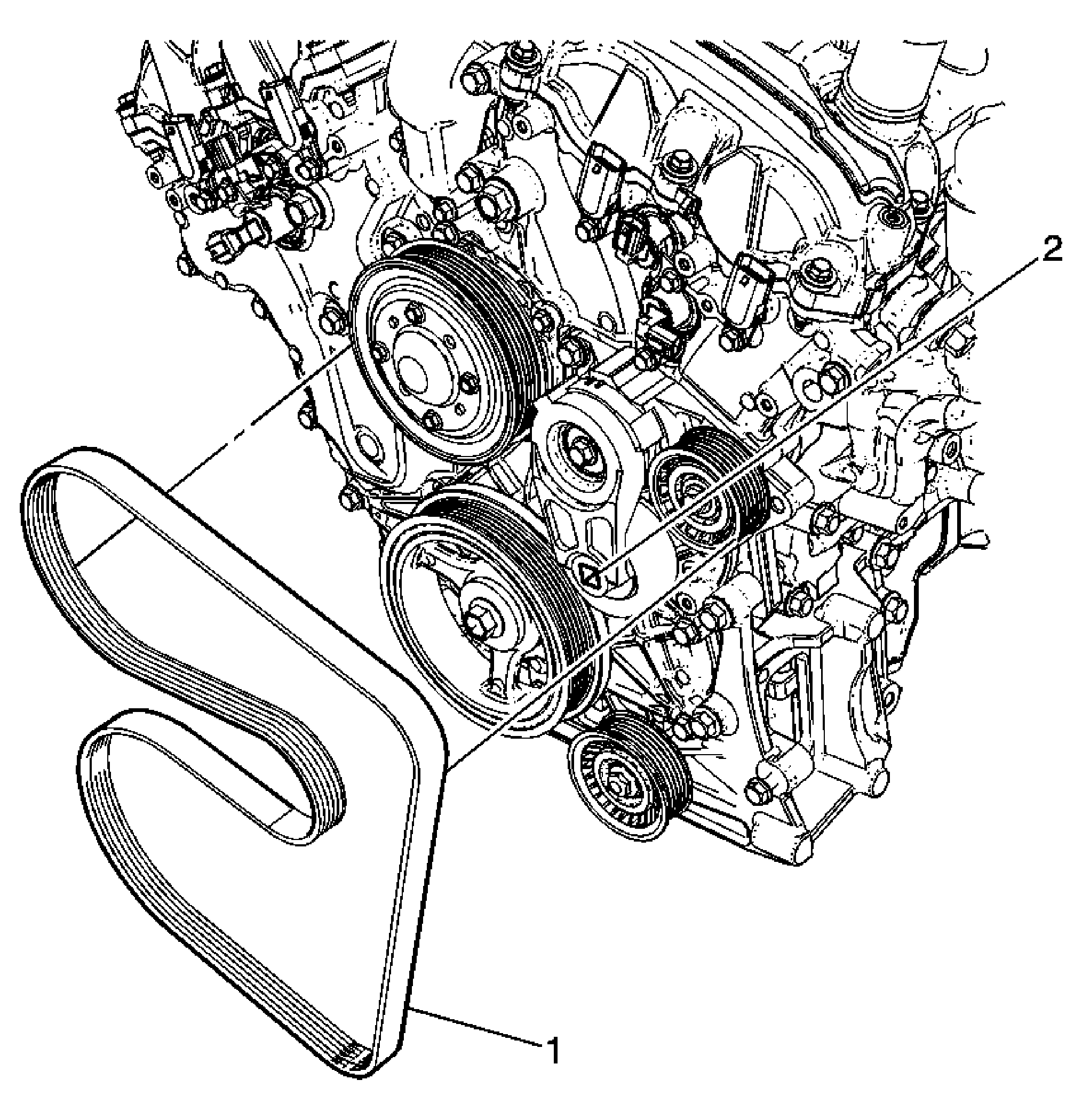

Fig 1: Identifying Drive Belt Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the right side engine splash shield. Refer to Engine Splash Shield Replacement .
1	Drive Belt Procedure Use the proper tool to rotate the drive belt tensioner. Remove the drive belt from the pulleys and tensioner.
2	Drive Belt Tensioner Procedure Clean and inspect the drive belt surfaces of all the pulleys. Inspect the drive belt for correct alignment.

Callout

Component Name

Preliminary Procedure

Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Remove the right side engine splash shield. Refer to Engine Splash Shield Replacement .

Drive Belt

Procedure

Use the proper tool to rotate the drive belt tensioner.
Remove the drive belt from the pulleys and tensioner.

Drive Belt Tensioner

Procedure

Clean and inspect the drive belt surfaces of all the pulleys.
Inspect the drive belt for correct alignment.
