Installation Procedure
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- Install the drive belt to the vehicle.

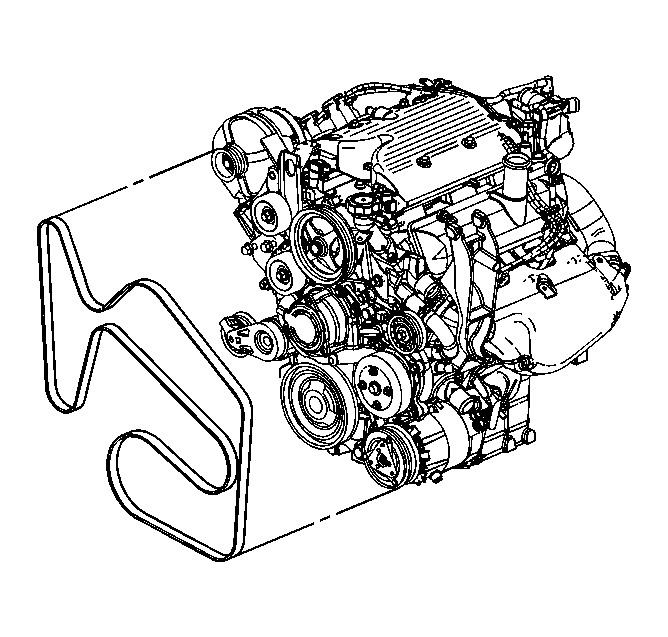

- Starting at the generator, route the drive belt around all of the pulleys, except for tensioner.
- Rotate the drive belt tensioner clockwise in order to release the spring tension.
- Install the drive belt around the tensioner.
- Install the engine mount bracket. Refer to Engine Mount Bracket Replacement
- Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
