Power Steering Pump Pulley Replacement (LZ4)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

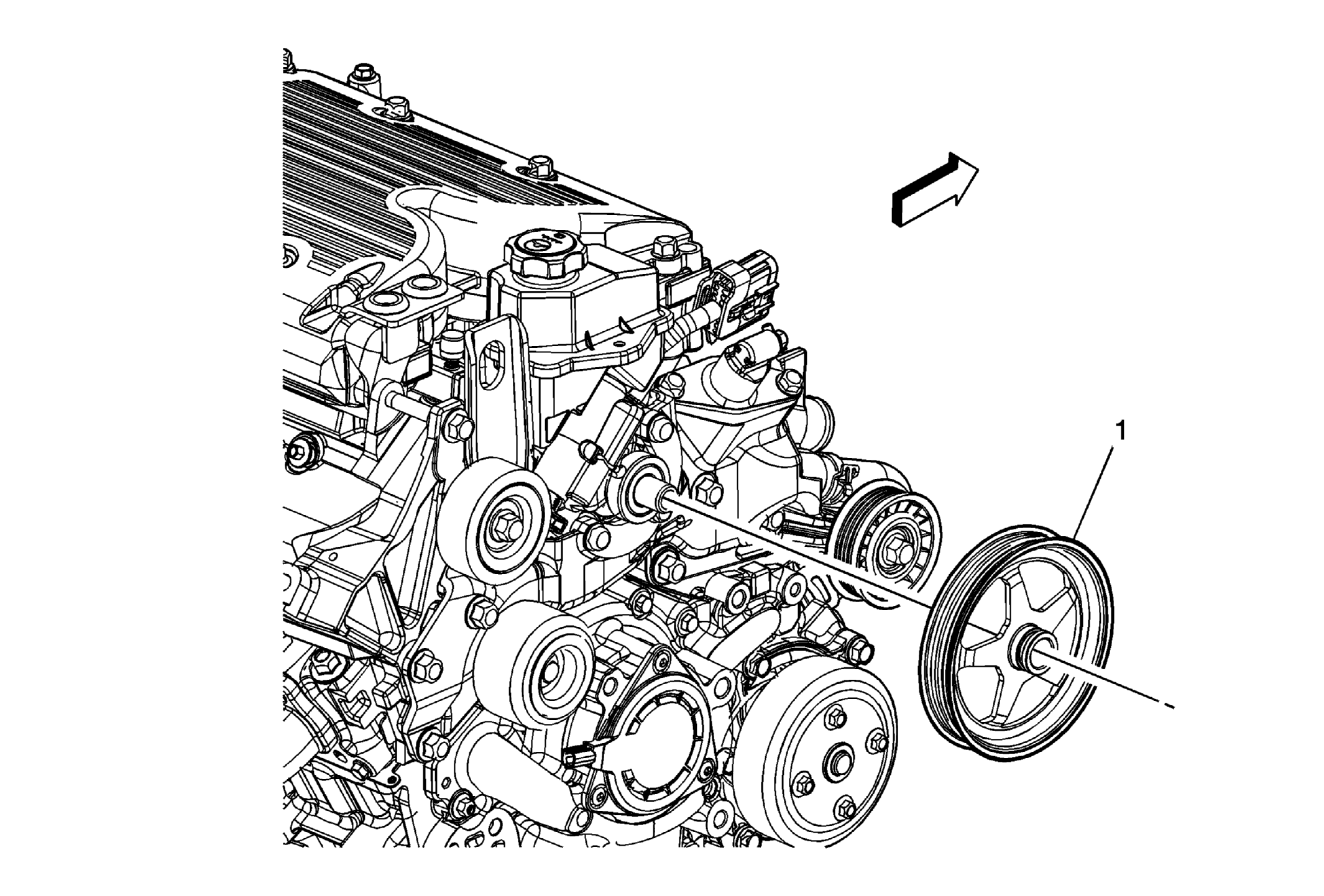

Fig 1: Power Steering Pump Pulley

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the drive belt. Refer to Drive Belt Replacement (LY7) or Drive Belt Replacement (LCS) .
1	Power Steering Pump Pulley Procedure Use the SA9162C: remover to remove the power steering pump pulley. Use the SA9162C: installer to install the power steering pump pulley. Special Tools: SA9162C: Power Steering Pump Pulley Remover/Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure:
Remove the drive belt. Refer to Drive Belt Replacement (LY7) or Drive Belt Replacement (LCS) .

Power Steering Pump Pulley

Procedure

Use the SA9162C: remover to remove the power steering pump pulley.
Use the SA9162C: installer to install the power steering pump pulley.

Special Tools:
SA9162C: Power Steering Pump Pulley Remover/Installer
For equivalent regional tools, refer to Special Tools .
