Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

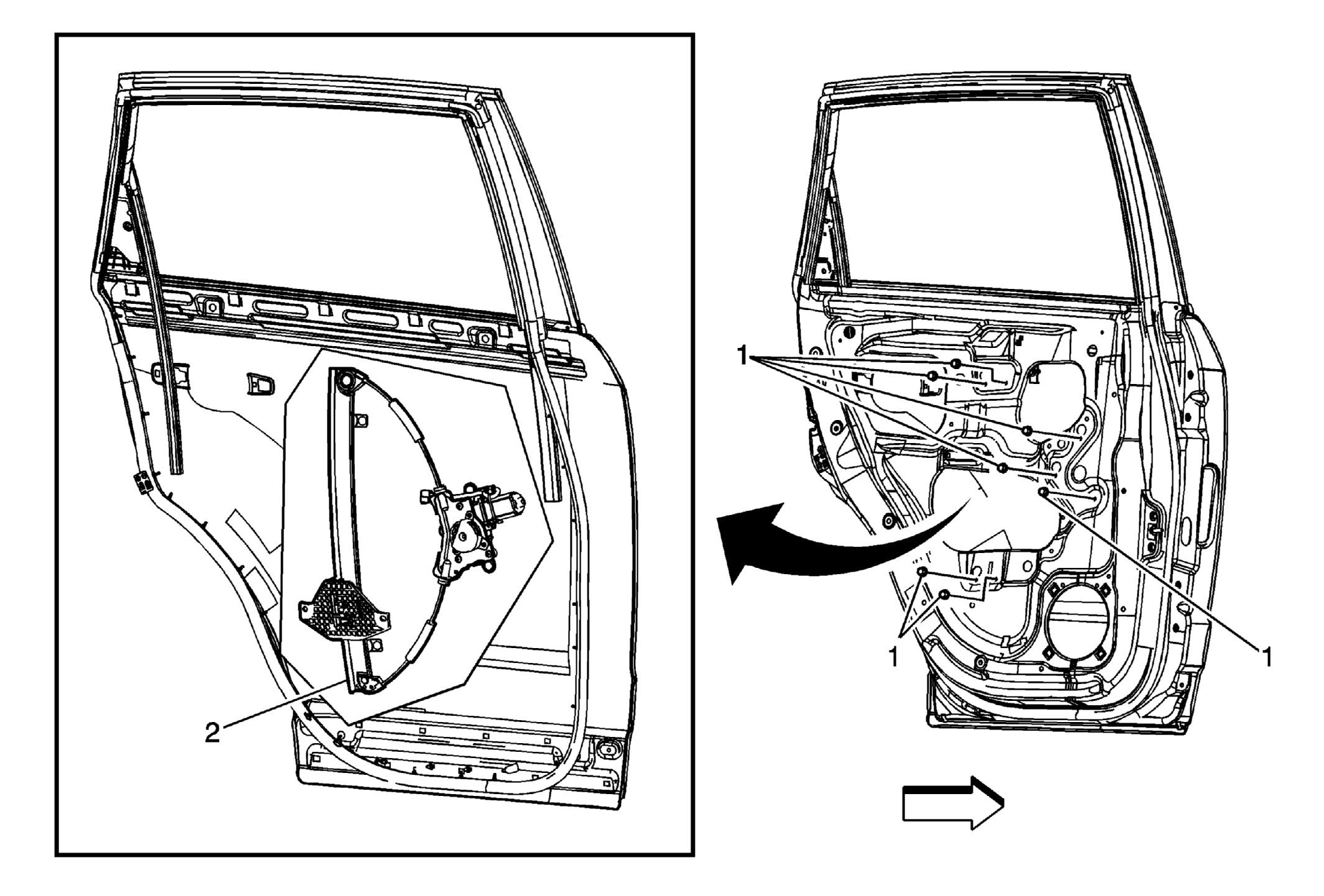

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Window Regulator Nut (Qty: 7) CAUTION: Refer to Fastener Caution . Procedure: Remove water deflector Tighten: 8 N.m (71 lb in)
2	Rear Side Door Window Regulator Procedure Disconnect the electrical connector from the window regulator motor. Remove the rear side door window. Refer to Rear Side Door Window Replacement . Tip: The window regulator motor is not serviced separately.

Callout

Component Name

Preliminary Procedure:
Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .

Rear Side Door Window Regulator Nut (Qty: 7)

CAUTION: Refer to Fastener Caution .

Procedure:
Remove water deflector

Tighten: 8 N.m (71 lb in)

Rear Side Door Window Regulator

Procedure

Disconnect the electrical connector from the window regulator motor.
Remove the rear side door window. Refer to Rear Side Door Window Replacement .

Tip: The window regulator motor is not serviced separately.
