Rear Side Door Window Regulator Motor Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

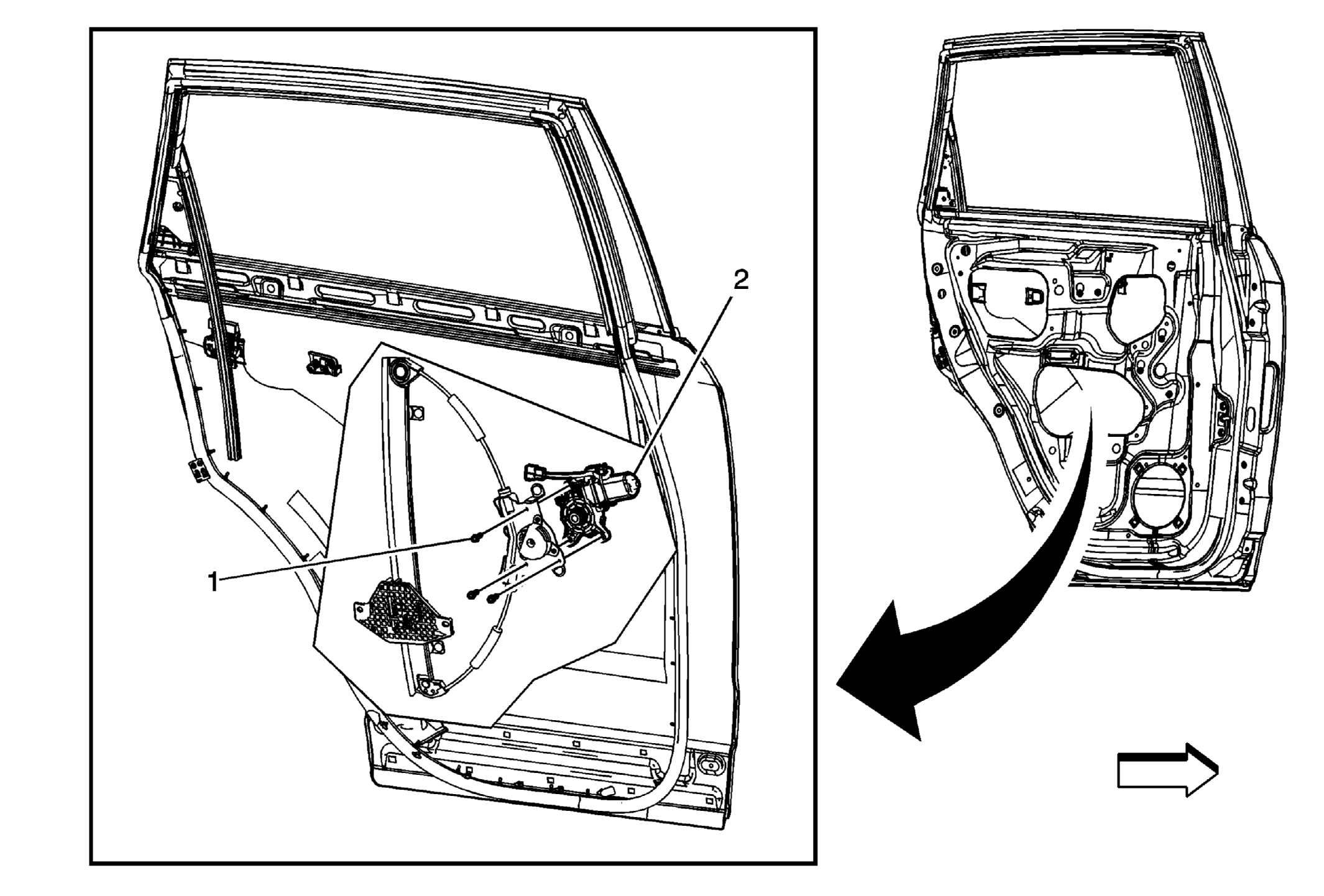

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the rear side door window regulator. Rear Side Door Window Regulator Replacement . |
|
| 1 | Rear Side Door Window Regulator Motor Screws (Qty: 3).
CAUTION:
Refer to Fastener Caution
.
Tighten: 8 N.m (71 lb in) |
| 2 | Rear Side Door Window Regulator Motor |
