Rear Side Door Window Channel Retainer Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

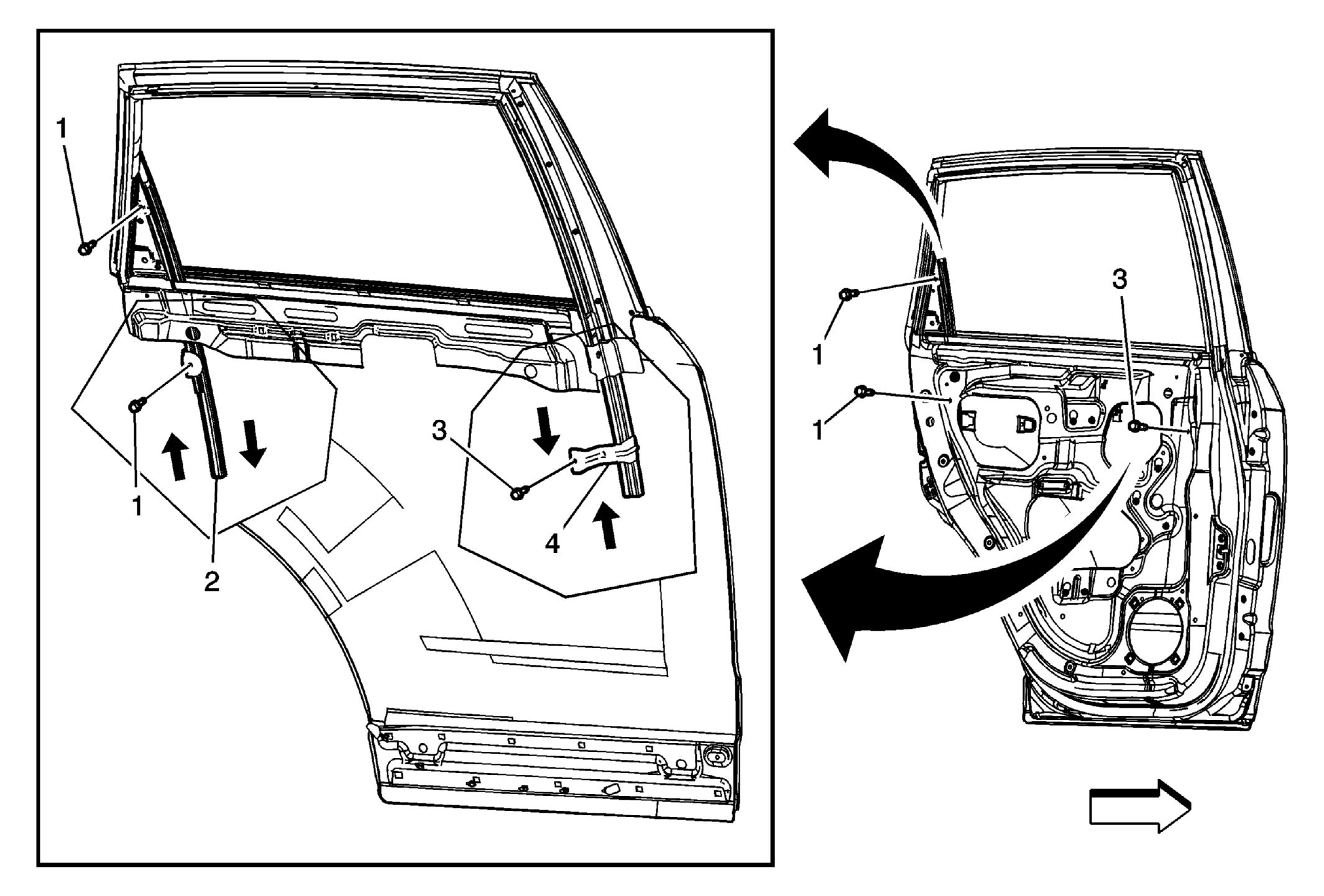

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . |
|
| 1 | Rear Side Door Rear Window Weatherstrip Channel Retainer Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Rear Side Door Rear Window Weatherstrip Channel Retainer Tip: Pull the weatherstrip out of the channel, remove the channel retainer from the door. |
| 3 | Rear Side Door Front Window Weatherstrip Channel Retainer Bolts Tighten: 10 N.m (89 lb in) |
| 4 | Rear Side Door Front Window Weatherstrip Channel Retainer Tip: Pull the weatherstrip out of the channel, remove the channel retainer from the door. |
