Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

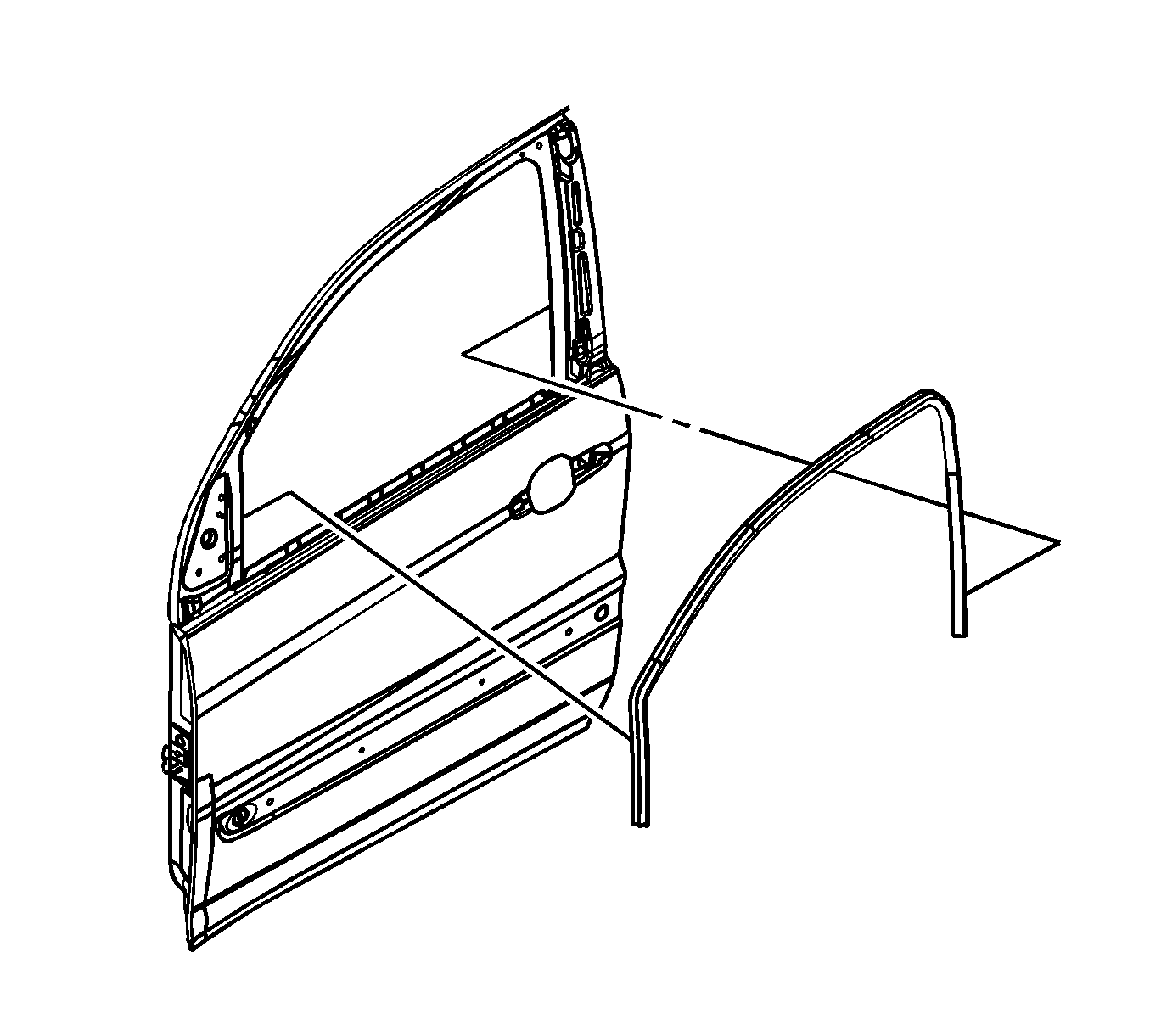

    Fig 1: View Of Front Window Weatherstrip Run Channel Assembly
    GM1378601Courtesy of GENERAL MOTORS CORP.
  1. Place the front door window in the full down position.
  2. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove the water deflector.
    4. IMPORTANT: The weatherstrip is seated in the front and rear lower weatherstrip retainers.
  4. Starting at one end, carefully pull the window weatherstrip channel from the door frame.
