Front Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

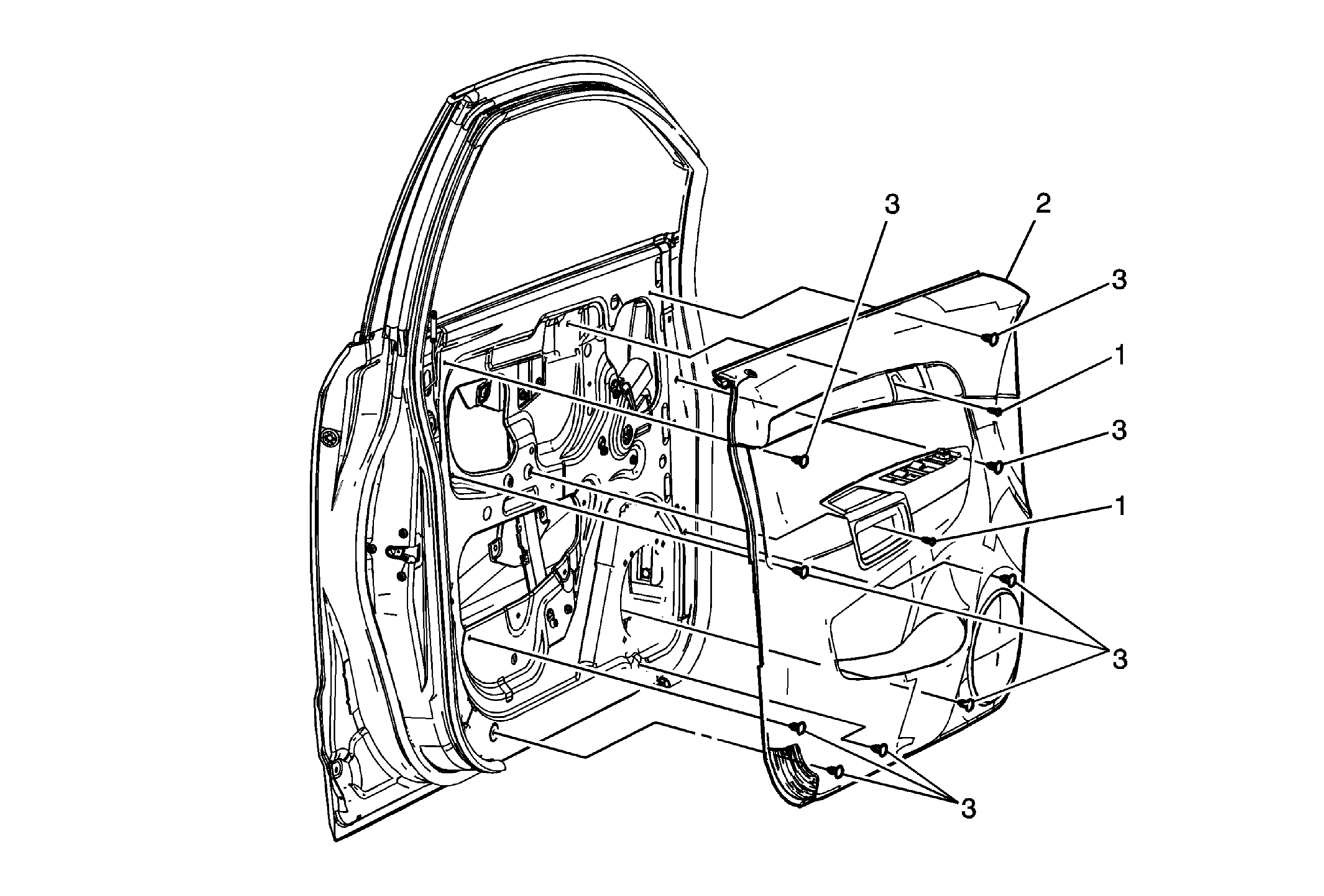

Fig 1: Front Side Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Trim Panel Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Side Door Trim Panel Assembly Procedure Disengage the door lock cable. Disconnect the electrical connector.
3	Front Side Door Trim Panel Retainer (Qty: 9)

Callout

Component Name

Front Side Door Trim Panel Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Front Side Door Trim Panel Assembly

Procedure

Disengage the door lock cable.
Disconnect the electrical connector.

Front Side Door Trim Panel Retainer (Qty: 9)
