Liftgate Lock Striker Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

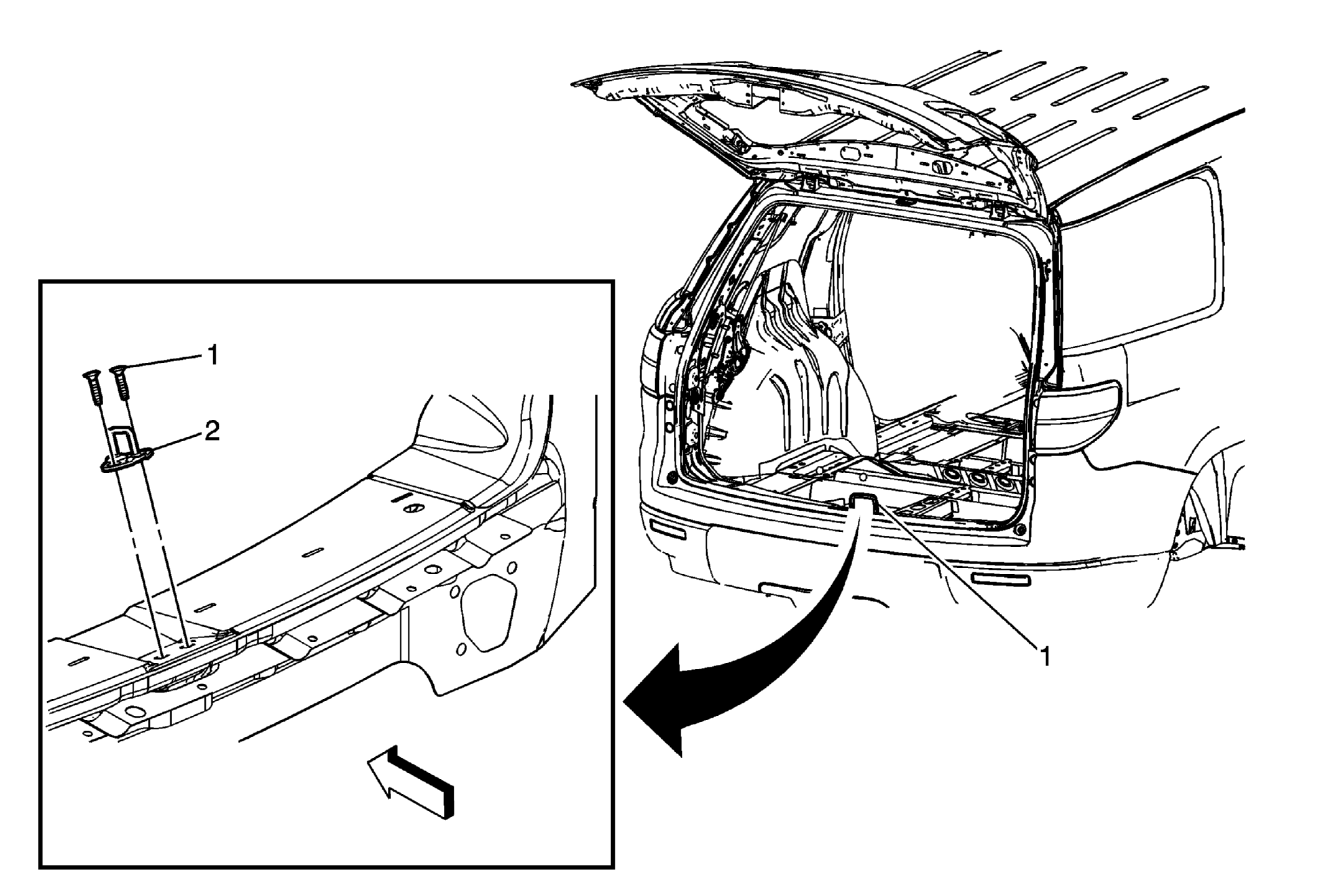

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove Liftgate Door Sill Plate. Refer to Liftgate Door Sill Plate Replacement |
|
| 1 | Liftgate Lock Striker Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 25 N.m (18 lb ft) |
| 2 | Liftgate Lock Striker Procedure: Mark the location of the striker with a grease pencil to ensure proper alignment during installation. |
