Liftgate Door Sill Plate Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

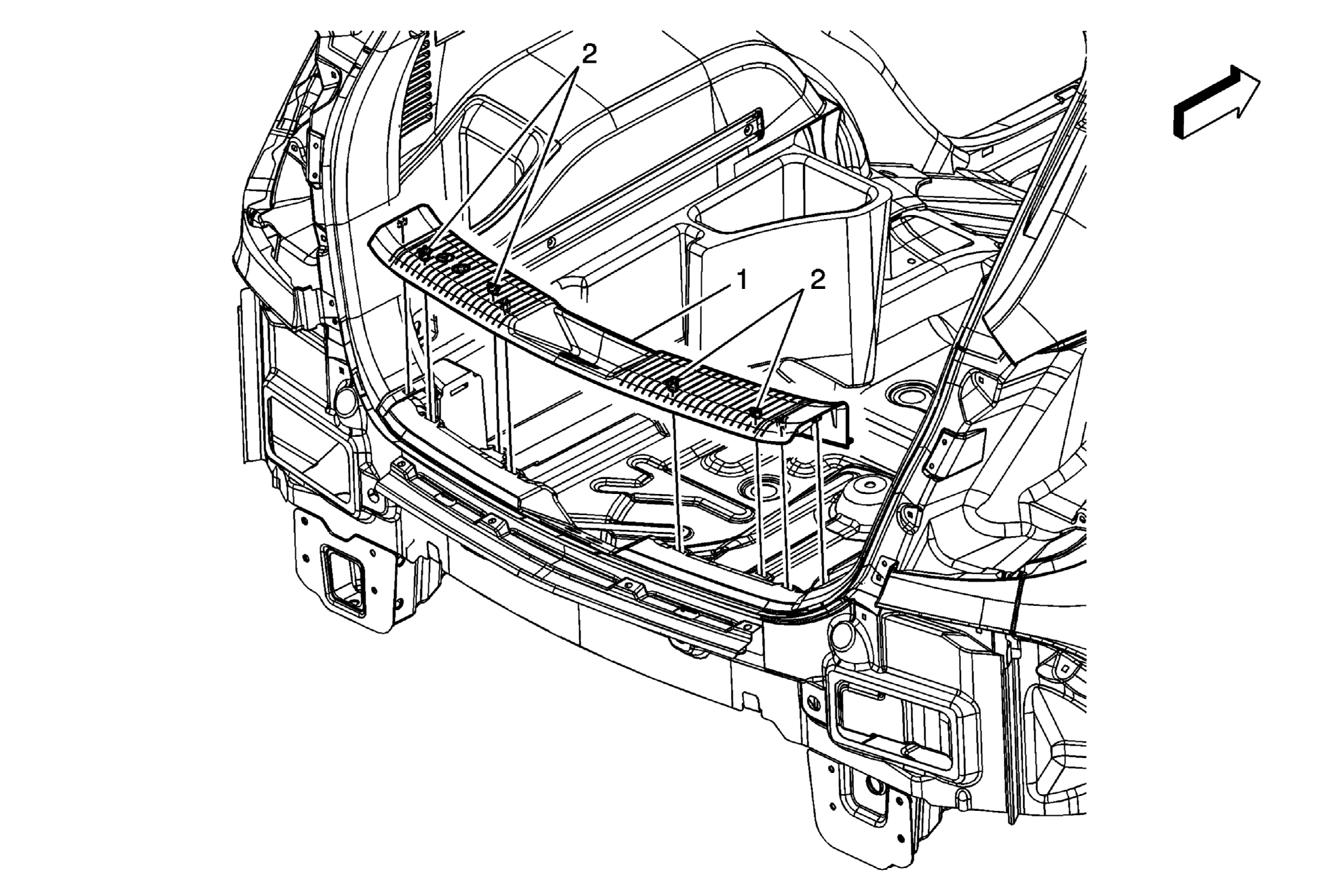

Fig 1: Liftgate Door Sill Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Door Sill Plate Assembly Procedure Lift storage compartment lid. Remove foam over spare tire. Use a flat-bladed plastic trim tool in order to release the clips and remove the sill plate.
2	Liftgate Door Sill Plate Clip (Qty: 4)

Callout

Component Name

Liftgate Door Sill Plate Assembly

Procedure

Lift storage compartment lid.
Remove foam over spare tire.
Use a flat-bladed plastic trim tool in order to release the clips and remove the sill plate.

Liftgate Door Sill Plate Clip (Qty: 4)
