Front Side Door Outside Handle Housing Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

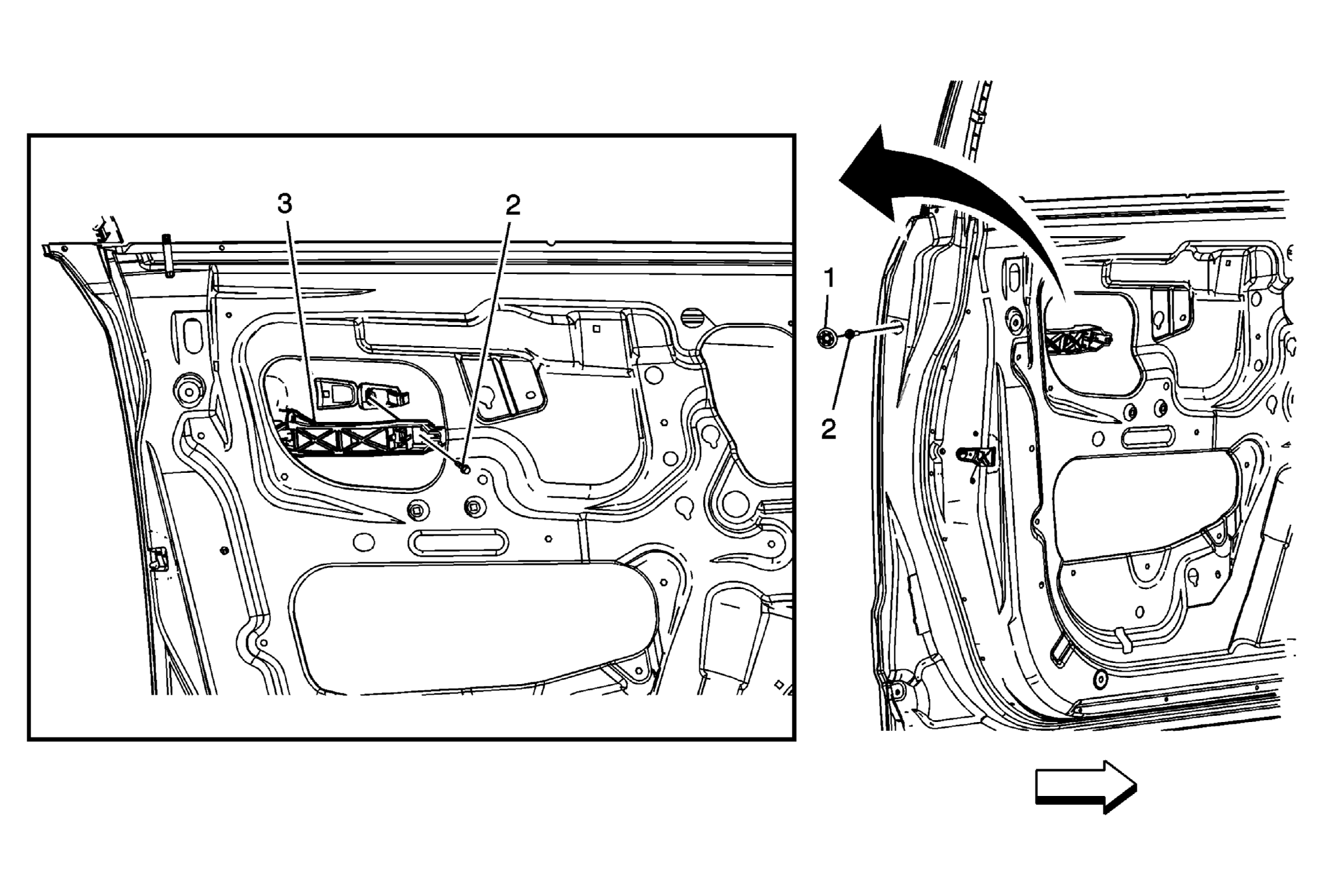

Fig 1: Front Side Door Outside Handle Housing
GM1868803Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement .
1 Front Side Door Outside Handle Bolt Access Plug
Procedure:
Remove the water deflector.
Tip:  Use a plastic flat-bladed tool to remove.
2 Front Side Door Outside Handle Housing Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedures

  1. Disconnect the front side door latch and handle rods to remove the housing.
  2. Release the front inside door handle cable retainers before removing the front side door latch.
  3. Disconnect the front side door latch electrical connector.

Tighten:  10 N.m (89 lb in)
3 Front Side Door Outside Handle Housing
