Front Side Door Latch Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

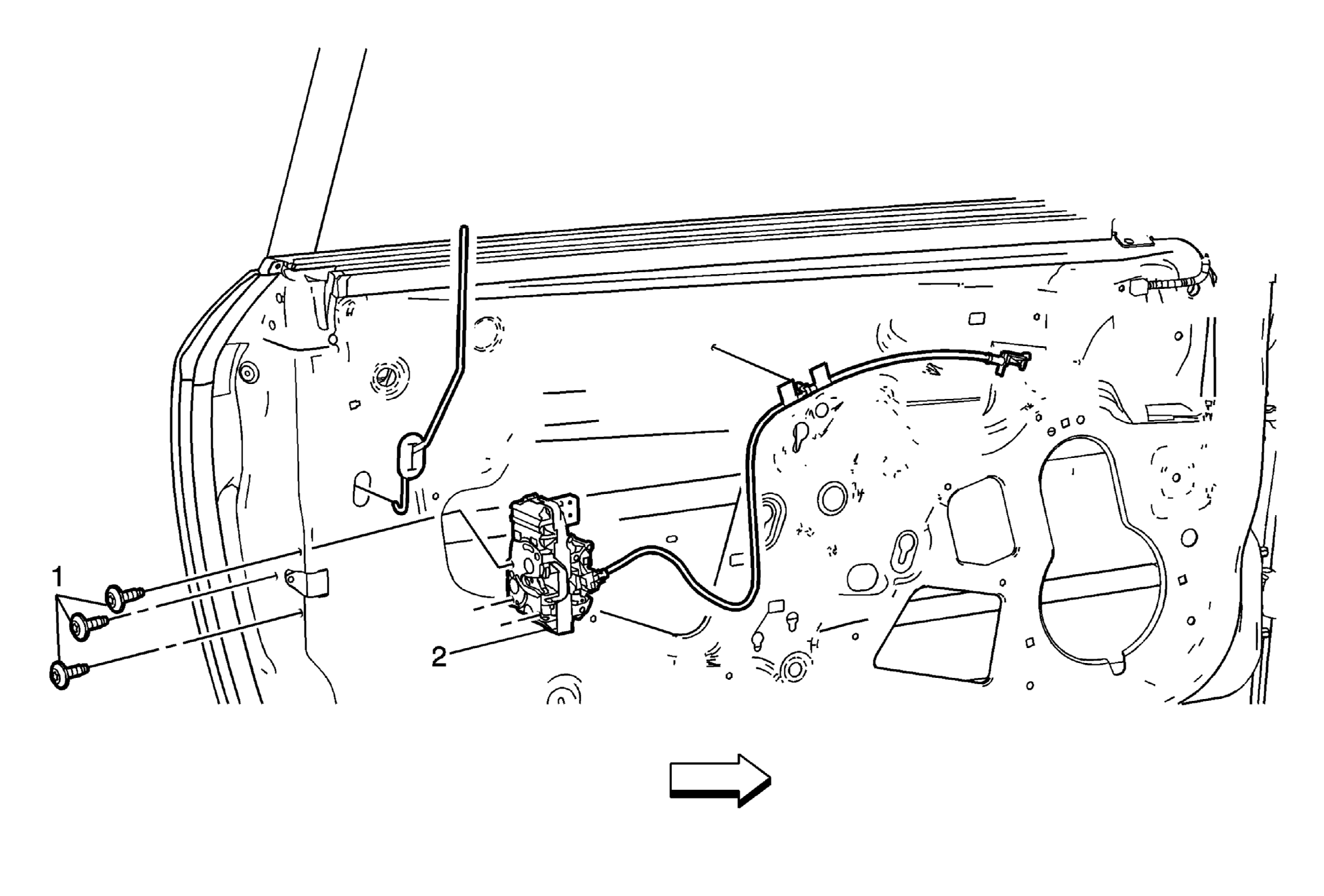

Fig 1: Front Side Door Latch
GM1868786Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Front Side Door Latch Screws (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedures

  1. Remove the water deflector.
  2. Release the front inside door handle cable retainers from the door.

Tighten:  10 N.m (89 lb in)
2 Front Side Door Latch Assembly

Procedure

  1. Disconnect the front side door latch electrical connector.
  2. Transfer the front side door latch rods.
